ATM Extended Function Key

Stainless Steel ATM Extended Function Key With 4 Function Keys

1. Features

• Model number:ZT-MKP-31B.

• The keys are 2.0mm height from the keypad surface.

• The keys can be symmetrically installed.

• Ability to customize layouts

• Raised keys with optional embossing

• Watertight when properly installed(IP65 front of keyboard)

• -25℃～+60℃ temperature range

2. Applications

• ATM, self-service terminal

• Information kiosk access, commerial kiosk

• Military, airplane, medical equipment, etc.

3. Compliances
CE approved
ROHS compliant

4. Specification

Entering keys	4 function keys
Contact resistance	< 100Ω
Communication interface	2×2 matrix scanning interface,can provide the switching cable,the length can be customized.
Key lifespan	≧ 2,000,000 Times
Key activation force	2~3 N
Key trip	≧ 0.45mm
Key material	high quality stainless steel
Character	obverse etching
Housing material	high quality stainless steel
Panel dimension	134.5×31.1×5.0mm
Overall dimension	161.5×38.5×13.33mm
Product weight	180g

5. Environment Adaptability
Operation temperature range: -35℃～+60℃
Relative humidity range: 10%～100% RH(normal environment)
Storage temperature range: -35℃～+60℃
Relative storage humidity range: 10-100%(non-condensing)
Air pressure: 60-106kPa

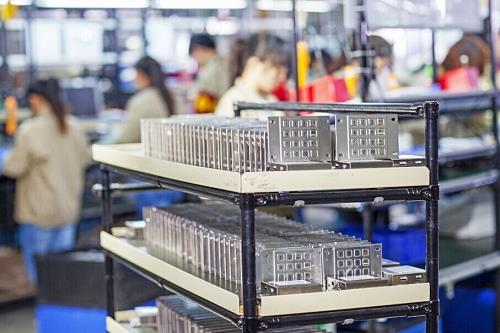

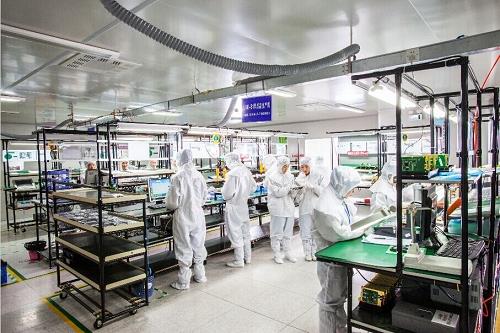

6. EPP workshop gallery

7. Company overview
SZZT Electronics CO., Ltd (Stock code: 002197) started in 1993 with registered capital of 66 Million USD, grown as the global biggest financial payment and security product base,and provide the most thoughtful financial payment infrastructure services for customers.

The company has established 2 industrial park in Shenzhen and Changsha. Four large-scale IDC in Shenzhen, Dongguan, Guangzhou, Changsha,5 R&D center, 22 branch company and 331 after-sales service dots spread over the country.

SZZT Electronics CO., Ltd owns the patent of encrypt pin pad, self-service terminal and POS terminal near 200 terms ,and develops the password security chip with  independent intellectual property, established high leveled automatic manufacturing line of financial terminal and advanced IOT cloud computing platform ,offered a variety of differentiated financial payment solutions included terminal, business software, platform operations,ect.Our product spread over 160 countries and area among the world.

8. FAQ
(1)What is the application of industrial metal keyboard?
---- industrial metal keyboard can be used on public equipment like information Kiosks, telecom inquiry KIOSK, self-service net-bar, and also industrial equipment, like CNC machine, instruments.

(2)Do you have complete solutions in other Languages?
---- Yes, our R&D team develops and factory offers many popular languages such as Arabic, Cyrillic (Russian), Danish, Finnish, French, German, Hebrew, Norwegian, Spanish, Swedish, Turkish, UK…

(3)What is the payment term?
---- T/T or L/C

(4)What's your warranty?
----1~2 years warranty from the date of delivery, A lifetime technical support.

(5)What kind of support can you provide on software development?
---- We can provide you complete SDK for you to development software, we also have a strong engineers and customer service team to provide you technical support.

Welcome to purchase the stainless steel atm extended function key with 4 function keys with our professional China manufacturers and suppliers, and check the quotation with us. We will offer you the best after-sale service and fast delivery.
