KS8123

KS8123

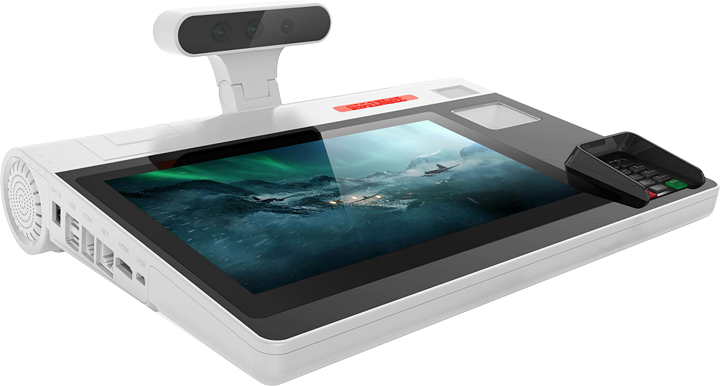

Product overview: KS8123 is a new generation of smart tablet terminal independently developed by SZZT. KS8123 adopts independent innovation design system platform to meet the requirements of electronic payment for security, convenience, multi-application and remote download management. With handwriting touch operation, printing payment receipt, application download and other functions. Built-in PCI password keyboard, 4G network, suitable for a variety of industry applications and offline acquiring business. Main application areas: ● Banks and third-party payment market for retail, hotel, catering, entertainment, clothing and other industries. ● Support magnetic card, contact IC card, contactless IC card and other bank card payment transactions.


KS8123



1 - 副本

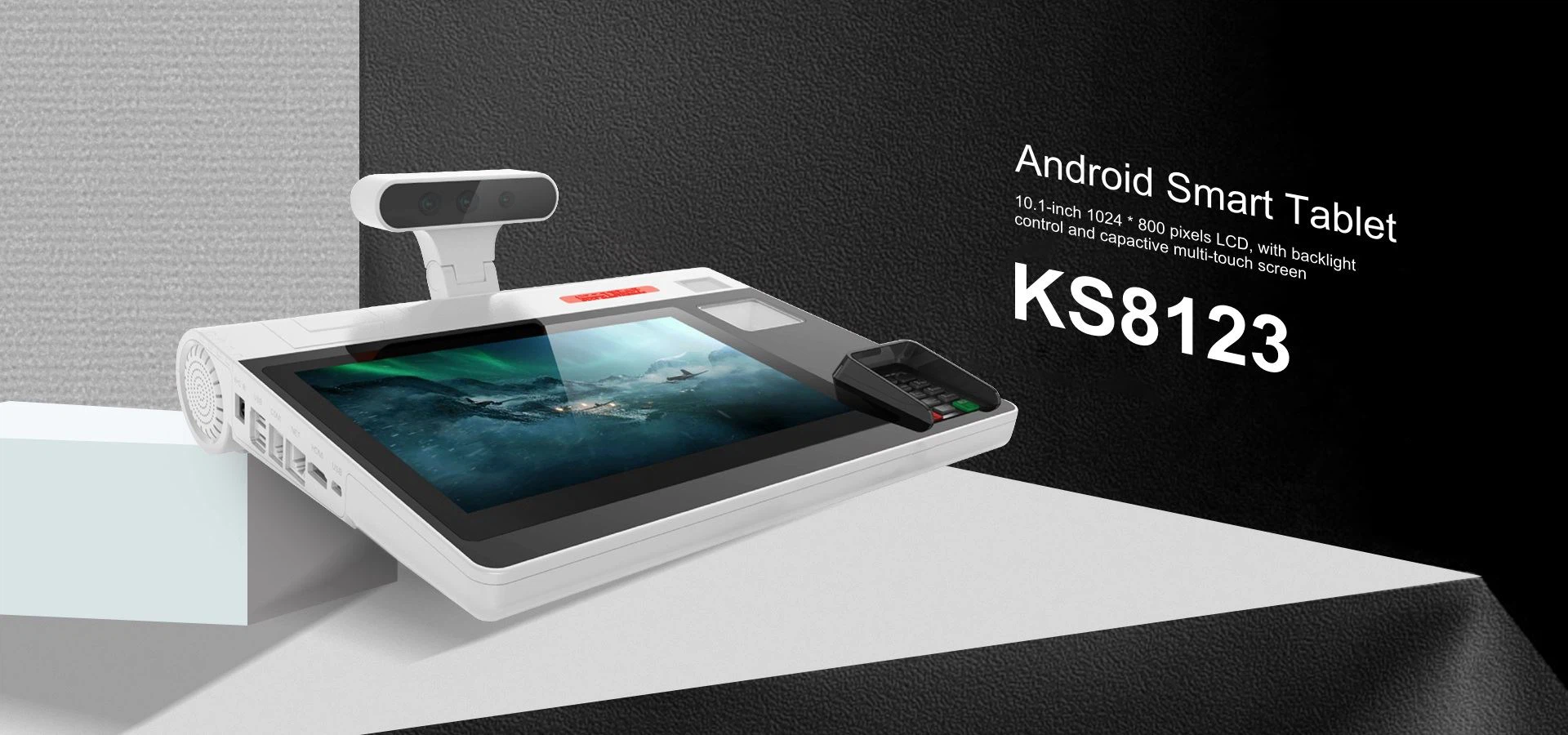

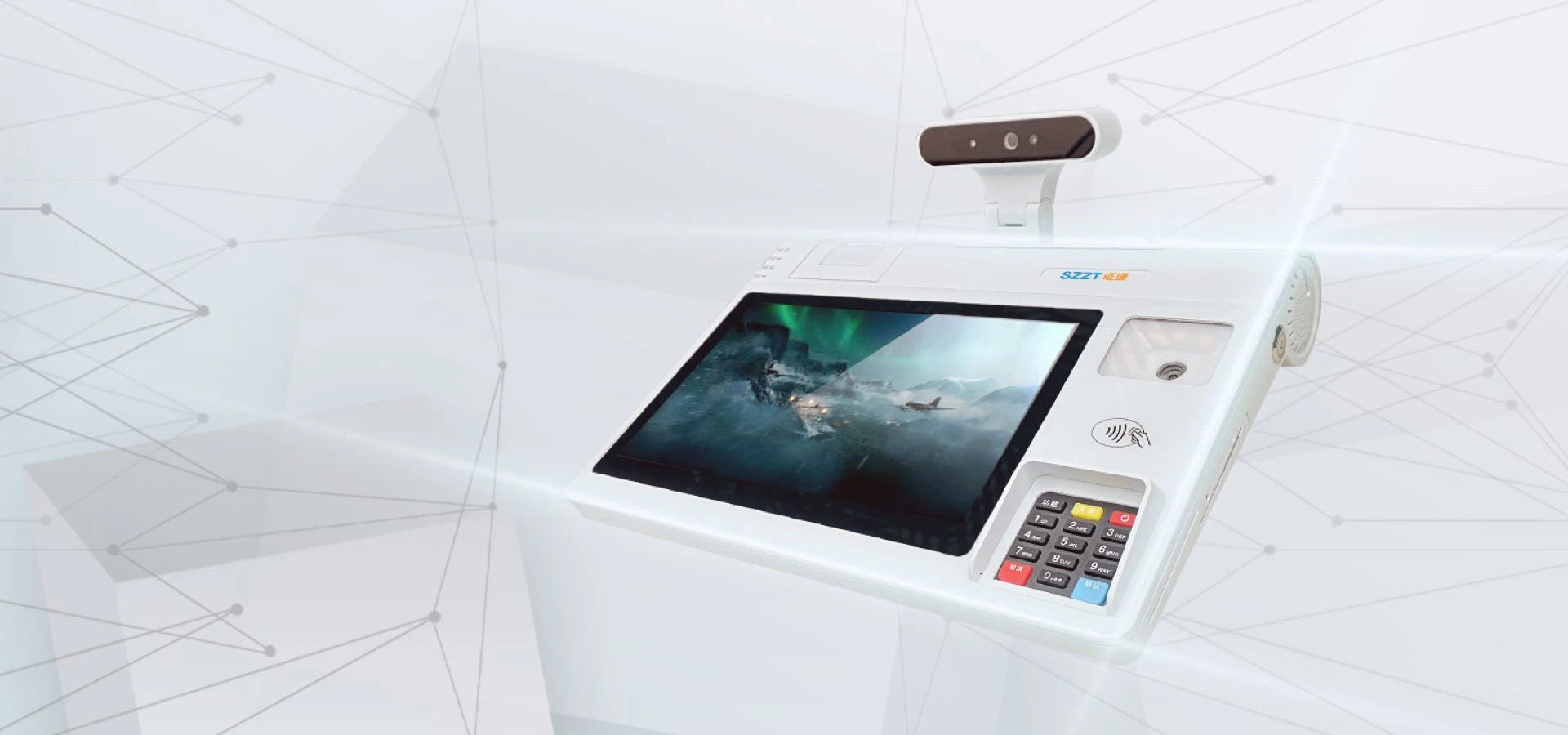

Powerful Elegance Combining tablet functionality and PCI certified security in a stylish and a retailed hardened package


2 - 副本.jpg


A Generalist in Multiple Scenarios

3 - 副本.jpg

One Small Device, Endless Possibilities



Extensive Connectivity and Stable Connection

With Wi-Fi and 4G Full Netcom supported

the extensive connectivity ensures you quick and stable network connection no matter when and where.


5 - 副本.jpg

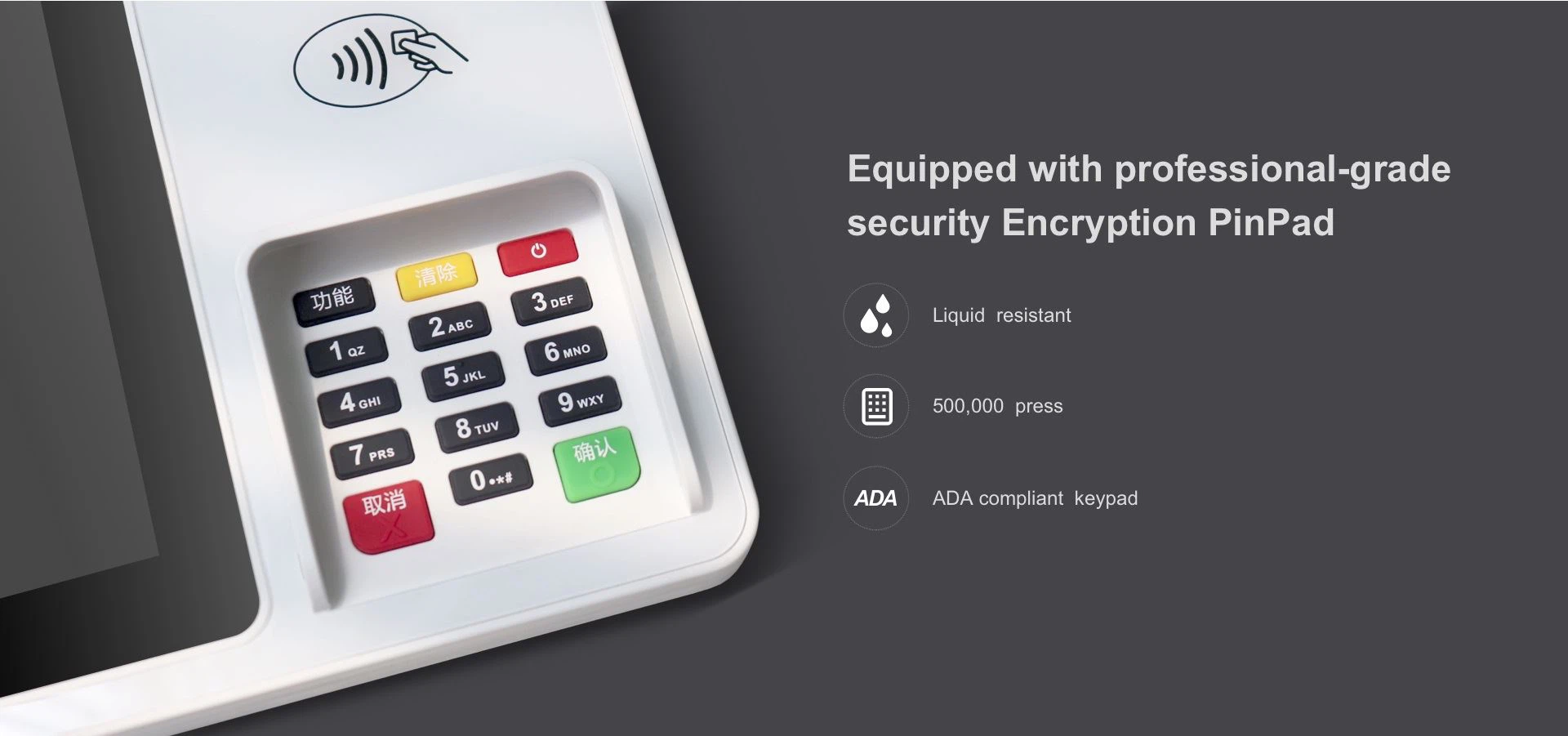

Rugged and Robust Metal Encryption Keypad
6 - 副本.jpg

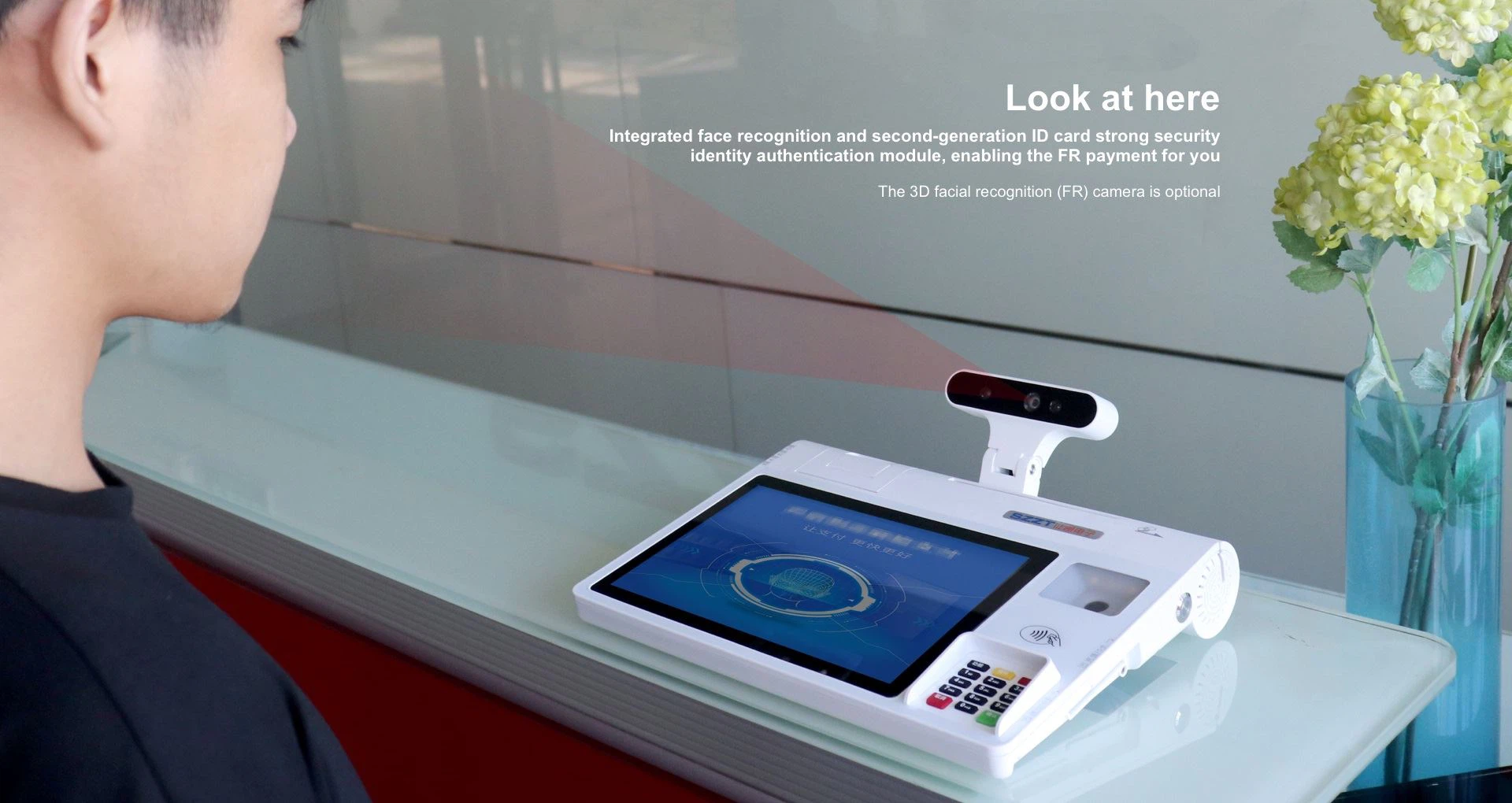

Look at here !
7 - 副本


Secure Electronic Payment Terminal Complete certification eliminates the verified time and equipment cost. ( EMV Level 1& Level 2, PCI,  CE, FCC etc.)
分组 14.png


Application


KS8123 has been applied for retail shop, supermarket, cash register, account authentication, top-up, lottery, voting validator, transport validator, etc. 分组 13

Product Specifications


Module

Specifications

Core

Processor

32-bit quad-core high-speed   processor + 32-bit high-performance security processor

Memory

1GB RAM +8GB FLASH

Syetem

Android 7.1

Encryption   Module

Provide hardware encryption   module of general algorithm RSA/DES and national encryption algorithm SM2/SM4

Communication

Mobile Module

Supports one standard SIM card   slot and automatically recognizes 1.8V and 3.0V cards

Support full Netcom (GSM,   WCMDA, EVDO, TD-SCDMA, TD-LTE, FDD-LTE)

WIFI

Comply with IEEE802.11 b/g/n standard

Support AP mode

Bluetooth

Supports Bluetooth 4.1 BLE

GPS

Built-in   GPS, support LBS function

Ethernet   Standard

10M/100M adaptive

Output

Display

10.1-inch   1024×800 LCD with backlight control

Printer

Built-in high-speed thermal printer, printing speed: 12 lines per second, easy to load   paper structure, no fault printing number of no less than 100,000 receipts.

Paper width (57.5±0.5) mm.

Comply with GB18030 standard

Indicator   Light

Support power indicator, charging indicator

Speaker

Built-in speaker, power 0.5W,

Sound pressure 82dB±3dB

Support audio playback

Input

Keyboard

1 physical button

Built-in security password keyboard

Touch Screen

Multi-touch   capacitive touch screen,

Support touch   operation, comply with UnionPay electronic signature board specifications

Scan   Code Module

Support QR   Code, EAN-13/UPC-A, UPC-E, EAN-8, Code 128, Code39, Interleaved 2of5, etc.

Stylus

Support stylus operation

Identity Authentication

Second-generation   ID card recognition (optional)

Working frequency: 13.56Mhz±7Khz

Reading distance: 0~5cm

Reading time: <1s

Energy output: the electromagnetic field strength on the antenna surface (Hmax) <7.5A/m rms

Fingerprint   Recognition (optional)

Capacitive fingerprint identification module

Face Recognition   (optional)

Working distance: 0.28~1m

Working accuracy: ±2mm@1m

Output data: Raw Data 16bit@MJPEG

Features: HDR, low light, high definition

Depth image Resolution/frame rate:

        640 ╳ 400@30fps

        640 ╳ 400@15fps

        320 ╳ 200@30fps

        320 ╳ 200@15fps

Color image resolution/frame rate:

        1920 ╳ 1080@30fps

        1280 ╳ 720@30fps

        640 ╳ 480@30fps

        320 ╳ 240@30fps

Card reader

Magnetic   Stripe Card and Passbook Reader

Full three-track magnetic head, support two-way  swipe card

Support ISO7810 ID-1 standard   size card (85.60×53.98)

Support low-coercivity magnetic   stripe card of     ISO7811-2 standard

Support high coercivity   magnetic stripe card of    ISO7811-6 standard

Credit card speed range   10cm/s-120cm/s

Life is more than 400,000 times

Contact   IC Card Reader

2 large user card slots (one of   which supports

customized industrial card operation)

Support ISO7810 ID-1 standard  size card (85.60×53.98)

Contact IC card supporting   ISO7816 standard

Comply with EMV4.3 and PBOC3.0 specifications

Life is more than 300,000 times

Contactless   IC Card Reader

Support ISO14443 Type A/B,   Mifare® One card (optional)

Comply with EMV4.3 and PBOC3.0 specifications

PSAM   card reader

2 PSAM small card slots, in   line with ISO 7816 specifications

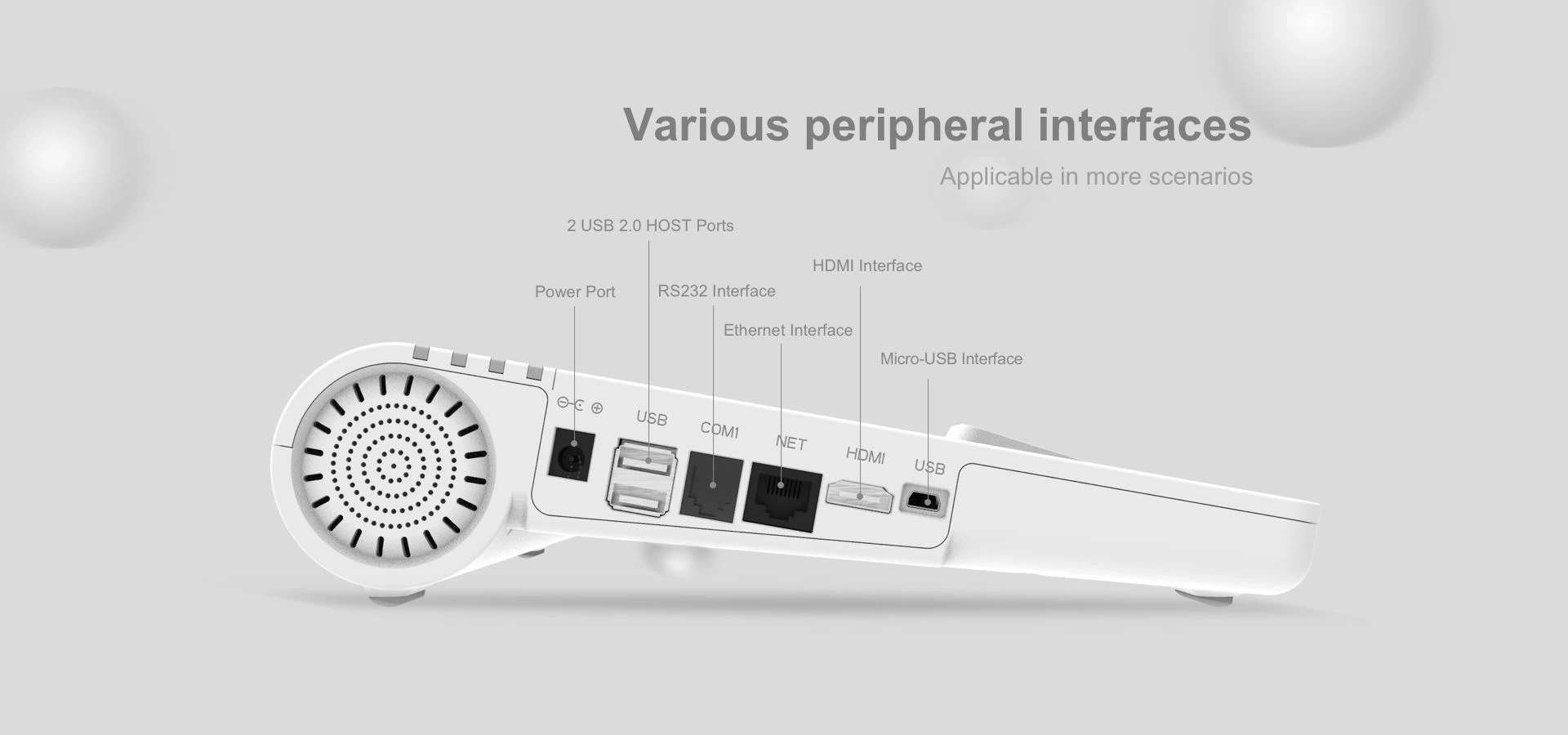

Interface

USB

2 USB 2.0 HOST ports

Ethernet

1 Ethernet interface

RJ11

1 RS232 interface

HDMI

1 HDMI interface

Power Interface

1 power interface

Power Supply

Lithium   battery (optional)

Lithium polymer battery, 3.7V   6600mAh

Adapter

Input: 100-240V50/60Hz 1A

Output: 9.0V 3A

Other

Exterior   Color

Customizable by customers

Size and Weight

320mm*240mm*60mm   (L*W*H)

Applicable   environment

Working temperature: 0℃~+50 Relative humidity:   10%90% RH

Storage temperature: -20℃~+70 Relative humidity: 10%90% RH (no   condensation)

Atmospheric pressure: 60106Kpa



Product Keywords


KS8123 is new generation smart Tablet terminal developed based on the platform which is fully self innovative by SZZT.

It integrates multi mobile payment while meets the main financial payment method



High Security

Professional hardware encryption module

Complete security certification

Perfect hardware attack detection mechanism, teardown self-destruction



High Performance

Professional scanner

Low power consumption and quickly charge

Self-optimized management of memory



Product Video
