Smart Broadcasting Speaker ZT8309


1. Product Overview

ZT8309 is a smart broadcast speaker product that integrates transaction voice broadcast, dynamic QR code display (support customer main scan transaction), transaction amount display and other functions. The product is fashionable in appearance and superior in quality. It supports two communication modes: WIFI and 4G. After configuration, the product can realize full automatic voice broadcasting without any manual intervention. It has the characteristics of low voice broadcast delay, high volume, stable connection and long service life.

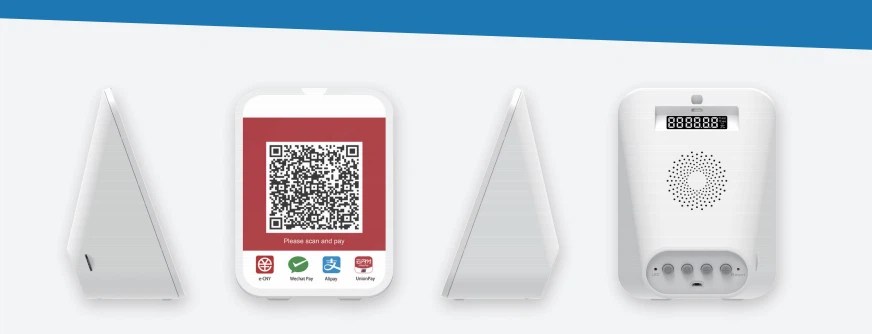

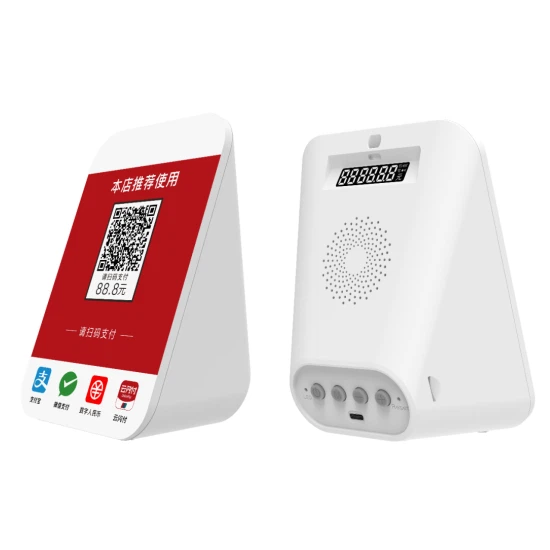

ZT8309 Speaker

Main application areas:

It can be used in places requiring QR code payment such as catering and retail.

Application

2. Product Feature:

Customized plate(maximum size:160mm*115mm);

Support QR payment;

Support the display of dynamic collection QR code and collection amount;

The broadcast sound is loud, and the sound pressure is greater than 110dB (5cm);

4G+WIFI dual-network automatic switching ensures stable communication without missing orders secure & reliable notification;

A safe and reliable IoT management platform can complete the docking between platforms with simple API calls.


Optional module:

WIFI module, applicable frequency band 2.4GHz;

Dynamic QR code display;

Transaction amount display screen;


3. Product Specification:

Module DESCRIPTION
Core Processor ARM Cortex-R5@614 MHz;
Memory RAM: 16MB;
Communication Mobile module 4G: LTE-TDD: B34/B38/B39/B40/B41;
LTE-FDD: B1/B3/B5/B8 (Optional);
WIFI IEEE802.11 b/g/n, 2.4GHz;
Output Speaker (1) Rated impedance: 4 Ω ± 20%
(2) Input power: 3W, maximum power: 3.5W;
(3) Sound pressure level: ≥ 110dB@5cm;
(4) Frequency response range: 100Hz~20KHz;
(5) Audio format: support mp3, wav, optional support arm, pcm;
(6) Broadcasting mode: support TTS and customized voice;
Broadcast delay The delay of voice broadcasting is less than 1 second;
Dynamic QR code display
(Optional)
(1) Screen Size: 2.4 inch LCD screen;
⑵ Number of Dots: 240RGB x 320 Dots;
(3) Active area: 36.72 (W) x 48.96 (H);
(4) Support customer main scanning, and the scanning timeout is 60S by default;
Digital display (Optional) 5.7 inch 640×480 TFT LCD,with backlight;
(1) Display mode: 6-digit digital display,White-Black mode;
⑵ 2 decimal points can be displayed;
⑶ The current network signal value and volume can be displayed when idle;
(4) Prompt when the amount exceeds the display range, and close the screen when idle;
LED Multi-color status indicator (red, green and blue);
Input Key (1) Power key: ON/OFF control key;
(2) Function key: press once to query the current power and network status, and press and hold for 3s or more for distribution network;
(3) Volume+key: press once to turn up the volume. Press and hold for 3s or more to replay the last transaction;
(4) Volume - key: press once to turn down the volume, and press and hold for 3s or more to switch the network communication mode;
(5) Reset key: used to reset the mobile module;
USB interface Micro USB*1;
USB Type C*1(Optional);
Power Input:DC 5V /1A;;
Platform Platform support Support a variety of Internet of Things platforms, which can be set up or provide technical support according to customer needs;
Platform for the Internet of Things 1. Mqtt communication service
Average response time: 10ms
Platform compatibility: full platform support for Linux and Windows
Scalability: distributed elastic expansion architecture, which can be dynamically expanded according to business requirements
Reliability/high availability: the continuous and stable operation rate of the platform is above 99.99%
2. Management platform
Average response time: 100ms
Compatibility: full platform support for background services Linux and Windows; Management platform support
Chrome, IE, Safari, Firefox, Opera, 360, Cheetah and other mainstream browsers
Scalability: The background service is a distributed elastic expansion architecture, which can be dynamically expanded according to business requirements
Reliability/high availability: the continuous and stable operation rate of the platform is more than 99%
Other Appearance color White, vermilion, or customized according to customer needs
Battery 3.7V 2000mAh;
3.7V 2200mAh (Optional);
Size 160mm*115mm*70.4mm (L * W * D);
Plate (1) With dynamic display: 160mm * 115mm;
(2) Maximum support size of non-screen model: 155mm * 105mm;
Environmental adaptability Working temperature: 0℃~+50℃;
Storage temperature: -20℃~+70℃;
Relative humidity: 10%~90% RH (no condensation);
Atmospheric pressure: 60~106Kpa;
