Module
|
Specifications
|
|
Core
|
Processor
|
ARM Cortex A7, quad core processor
|
|
Memory
|
1GB RAM + 8GB FLASH; Micro SD card ; up to 32 GB
|
|
Cryptographic Module
|
Hardware encryption module providing general
algorithm RSA/DES and national secret algorithm SM2/SM4
|
|
OS
|
Android 5.1.1
|
|
Communication
|
Mobile module
|
Support 1 standard SIM card slot and
automatically recognizes 1.8V and 3.0V cards;
Support full Netcom (GSM, WCMDA, EVDO, TD-SCDMA,
TD-LTE, FDD-LTE)
|
|
WIFI
|
2.4G single band support 802.11b/g/n, support
Wakeon-WLAN (WoWLAN) support ad-hoc mode WAPI support AP
mode Support Wi-Fi Direct
|
|
Bluetooth
|
Support Bluetooth 4.1 BLE
|
|
GPS
|
Built-in GPS, support LBS function
|
|
Output
|
Display
|

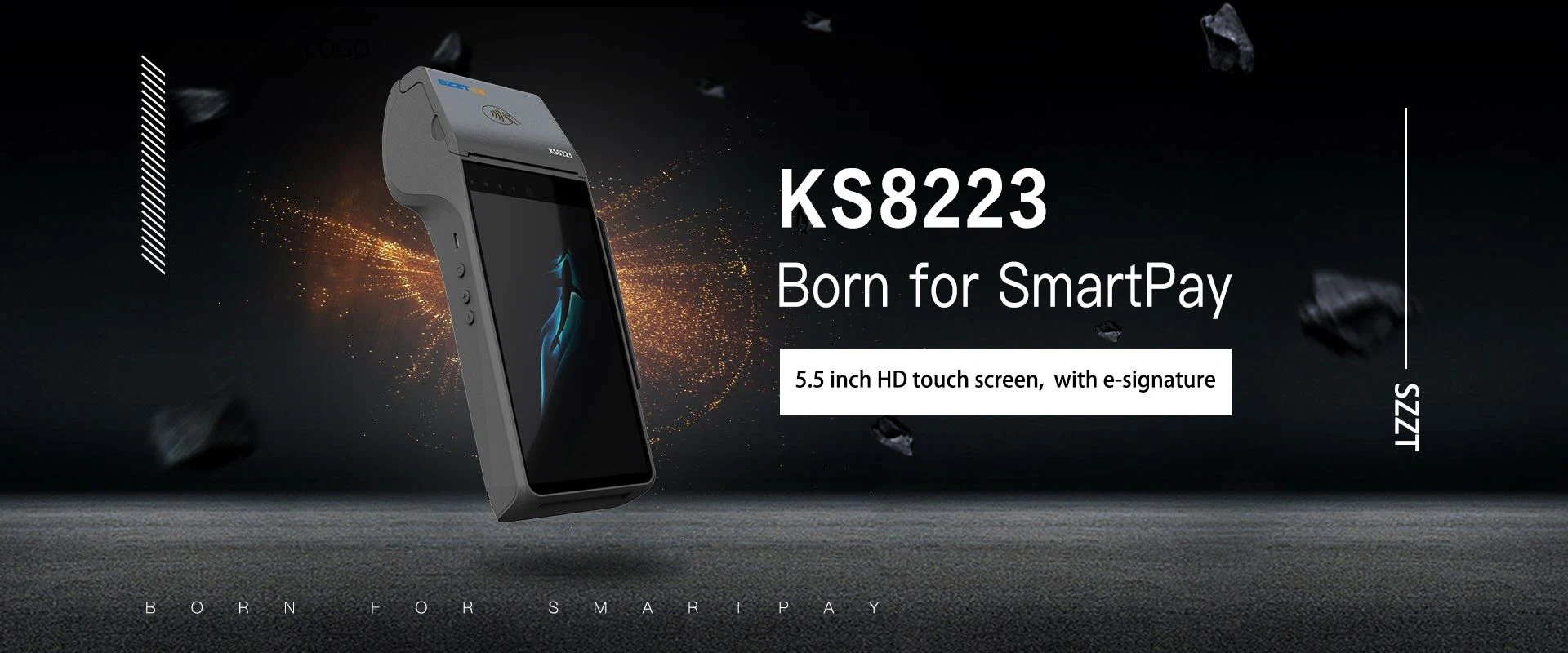

5.5'' capacitive touch TFT LCD ,
1280*720, support electronic signature
|
|
Printer
|
Built-in high-speed thermal paper printer, easy
to load paper structure
Support for printing ASCII visual characters and
GB18030 standard Chinese characters
Support for printing pictures (including
barcodes, QR codes)
The length of trouble-free printing not less than
50,000 meters
Printing speed 16 lines/s
(57.5±0.5)mm thermal printer, paper roll diameter :
40mm
|
|
Led
|
Supports four color (blue, yellow, green, red)
indicators
Comply with UnionPay contactless reader
specifications
|
|
Buzzer
|
Single tone single frequency, the volume is not
less than 75 decibels
Comply with UnionPay contactless reader
specifications
|
|
Speaker
|
Built-in speaker, power 0.5W, sound pressure
82dB±3dB
Support audio playback
|
|
Input
|
Keyboard
|
Built-in virtual password keyboard
Physical button: power button, volume +, volume -
|
|
Touch Screen
|
Multi-touch capacitive touch screen
Support touch operation, support electronic
signature
|
|
Camera
|
Rear: with flash, auto focus, 5 megapixels
Front: no flash, does not support auto focus, 2
million pixels
Support common 1D and 2D code scanning
|
|
Card reading
|
Magnetic stripe card reader
|
Full three-track head, support for two-way swipe
Card supporting ISO7810 ID-1 standard size
(85.60×53.98mm)
Low coercivity magnetic stripe card supporting
ISO7811-2 standard
High coercivity magnetic stripe card supporting
ISO7811-6 standard
Swipe speed range 10cm/s-120cm/s
More than 400,000 lifespans
|
|
Contact IC card reader
|
1 user large card slot
Card supporting ISO7810 ID-1 standard size
(85.60×53.98mm)
Contact IC card supporting ISO7816 standard
Meets EMV4.3 and PBOC3.0 specifications
Life time is more than 500,000 times
|
|
Contactless Card Reader
|
Support ISO14443 Type A/B, Mifare® One card
Meets EMV4.3 and PBOC3.0 specifications
|
|
PSAM card reader
|
2 PSAM small card slots, in accordance with ISO
7816
|
|
Interface
|
USB
|
Provides a Micro USB OTG interface that is
compatible with the USB 2.0 HS standard
|
|
Power Supply
|
Battery
|

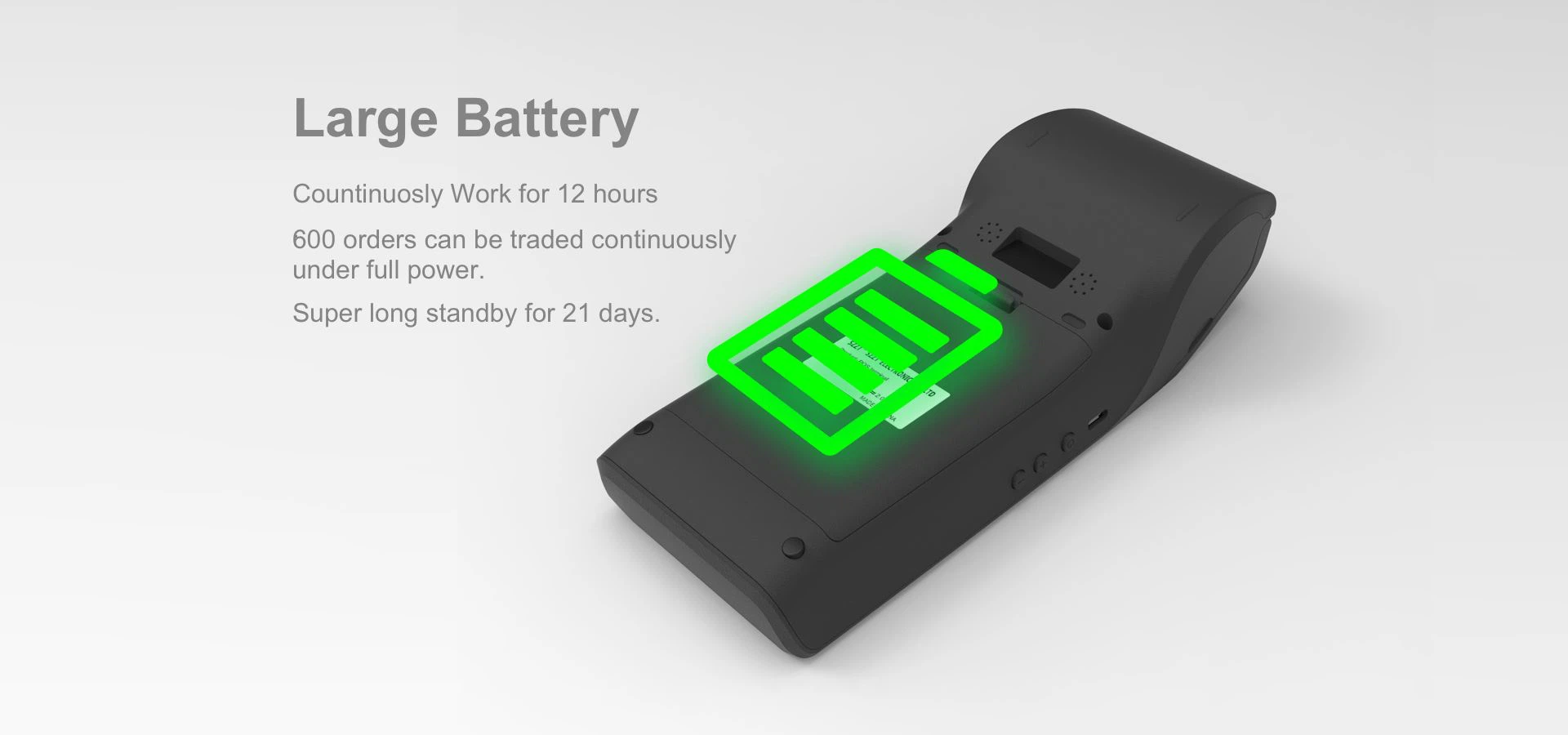

Lithium polymer battery, 3.7V 5000mAh
|
|
Adapter
|
Input：100-240V～50/60Hz 250mA
Output：5.0V ⎓ 2000mA
|
|
Other
|
Exterior Color
|
Customizable by customers
|
|
Size and Weight
|
219mm*89mm*56mm(length * width * height)
500g(with battery)
|
|
Applicable environment
|
Working temperature: 0°C～+50°C
Relative humidity: 30%～85% RH
Storage temperature: -20 ° C ~ +80 ° C
Relative humidity: 10% ~ 90% RH (no condensation)
Atmospheric pressure: 60～106Kpa
|
|
Related certification
|
China National Compulsory Product Certification
Telecom equipment network license
Radio transmission equipment type approval
certificate
PBOC3.0 Debit Credit Terminal Level 1
PBOC3.0 Debit Credit Terminal Level 2
EMV 4.3 Contact Terminal Level 1
EMV 4.3 Contact Terminal Level 2
PBOC3.0 non-contact IC card payment terminal
communication protocol test
PBOC3.0 non-contact IC card payment terminal
application test
PBOC3.0 is based on the micropayment terminal of
the debit credit application
UnionPay card acceptance terminal product safety
certification
UnionPay intelligent point-of-sale terminal
application detection (cloud POS)
Commercial password product model certificate
KS8223 4G Radio Transmitter Equipment Type
Approval Certificate
KS8223 CE certificate
KS8223 PayWave Certificate
KS8223 PayPass Certificate
KS8223 BIS certificate
KS8223 KCC certificate
KS8223 FCC certificate
KS8223 UnionPay Cloud POS
|
