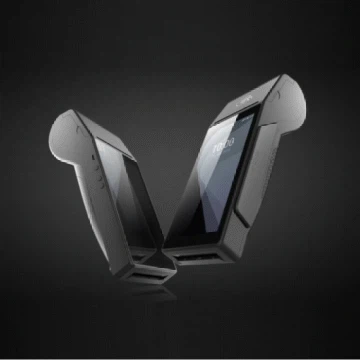

KS8226
Powerd by fastest of processors to simultaneously run multiple applications under the highest levels of in-built payment security
Module |
Specifications |
|
Core |
Processor |
32-bit quad-core high-speed processor 32-bit high performance security processor |
Memory |
1GB RAM+8GB ROM (Optional: 2GB RAM+16GB ROM, 3GB RAM+32GB ROM) TF extended storage, up to 32GB |
|
Cryptographic Module |
Hardware encryption module providing general algorithm RSA/DES |
|
OS |
SZZT Custom Security System, Standard OS Android 7.1 (Optional Android 12) |
|

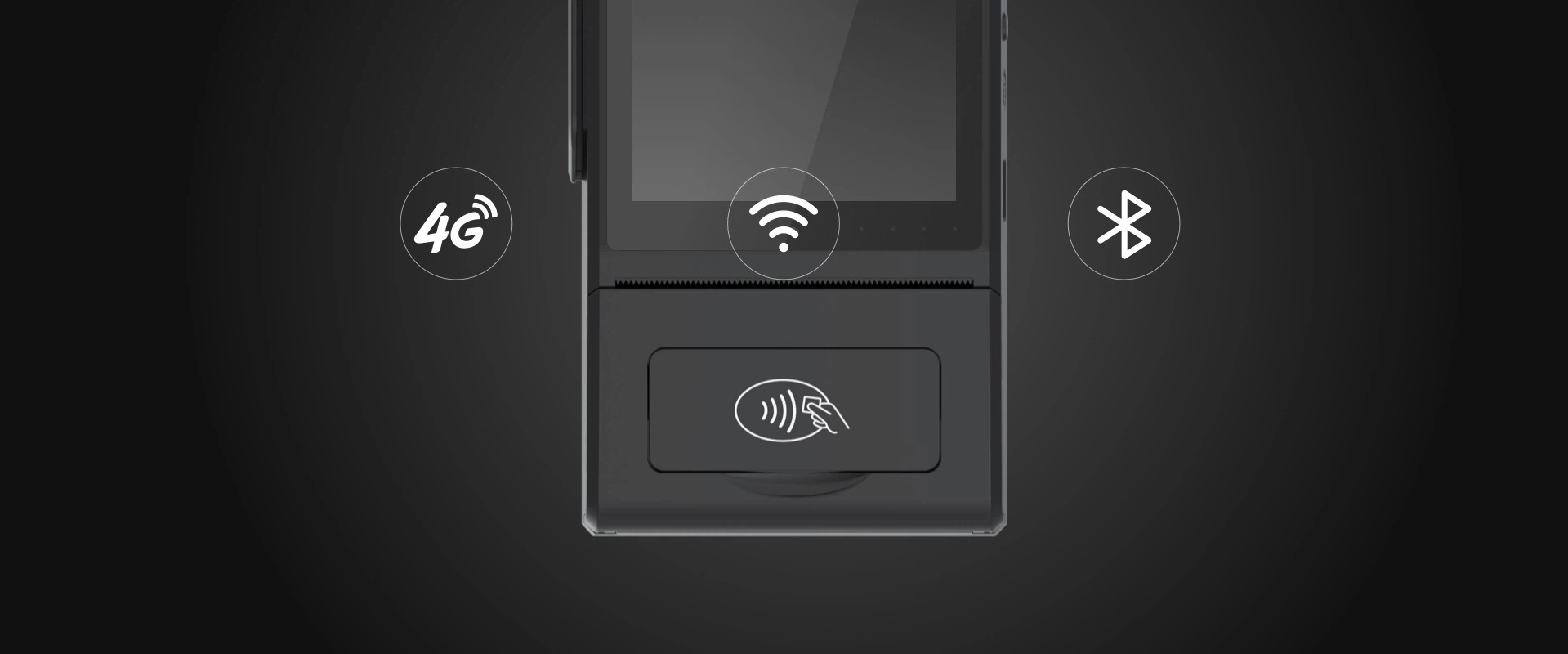

Communication |
Mobile module |
1 SIM card slot 4G FDD-LTE: Bands 1/3/5/8/18/19/26/28B 4G TDD-LTE: Bands 41 3G WCDMA: Bands 1/5/8/19 2G GSM: Bands 2/3/5/8(850/900/1800/1900 MHz) |
WIFI |
802.11 b/g/n, 2.4 GHz, with AP mode |
|
Bluetooth |
Bluetooth 4.1, BLE |
|
Location |
GPS/AGPS/GLONASS/BeiDou/Galileo |
|
Output |
Display |

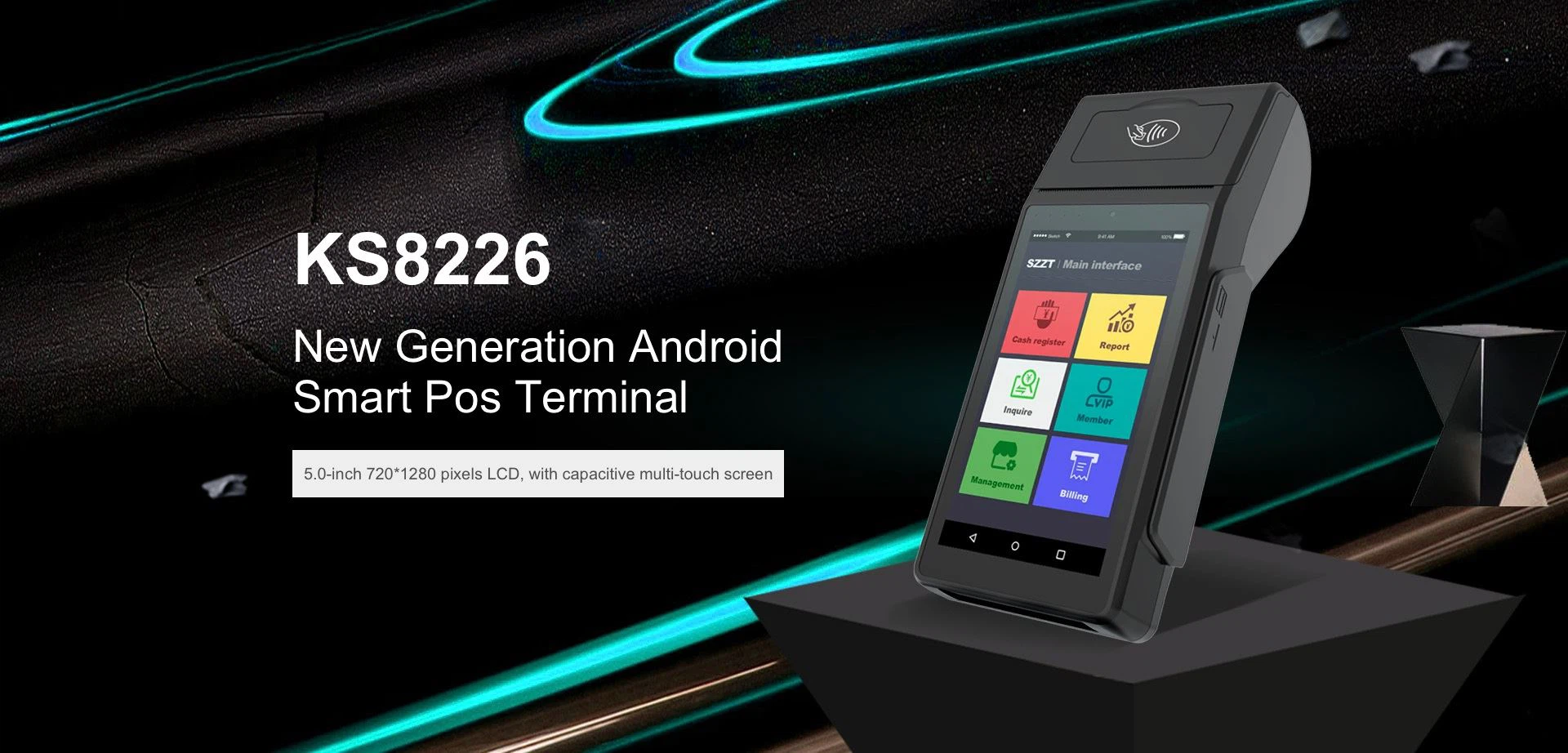

5.0-inch 720*1280 pixels LCD, capacitive multi-touch screen |
Printer |
Built-in high-speed thermal printer, easy to load paper structure Support for printing ASCII visual characters and GB18030 standard Chinese characters Support for printing pictures (including barcodes, QR codes) The length of trouble-free printing not less than 50,000 meters Print speed: 67.5mm/s Paper roll 58±0.5mm width, diameter 40mm |
|
Led |
Supports four color (blue, yellow, green, red) indicators |
|
Buzzer |
Single tone single frequency, the volume is not less than 75 decibels Comply with UnionPay contactless reader specifications |
|
Speaker |
Built-in speaker, 0.5W, sound pressure 82dB±3dB |
|
Input |
Keyboard |
Built-in randomized virtual keypad for PIN entry Physical button: power button, volume +, volume - |
Touch Screen |
Multi-touch capacitive touch screen Support touch operation, support electronic signature |
|
Camera |

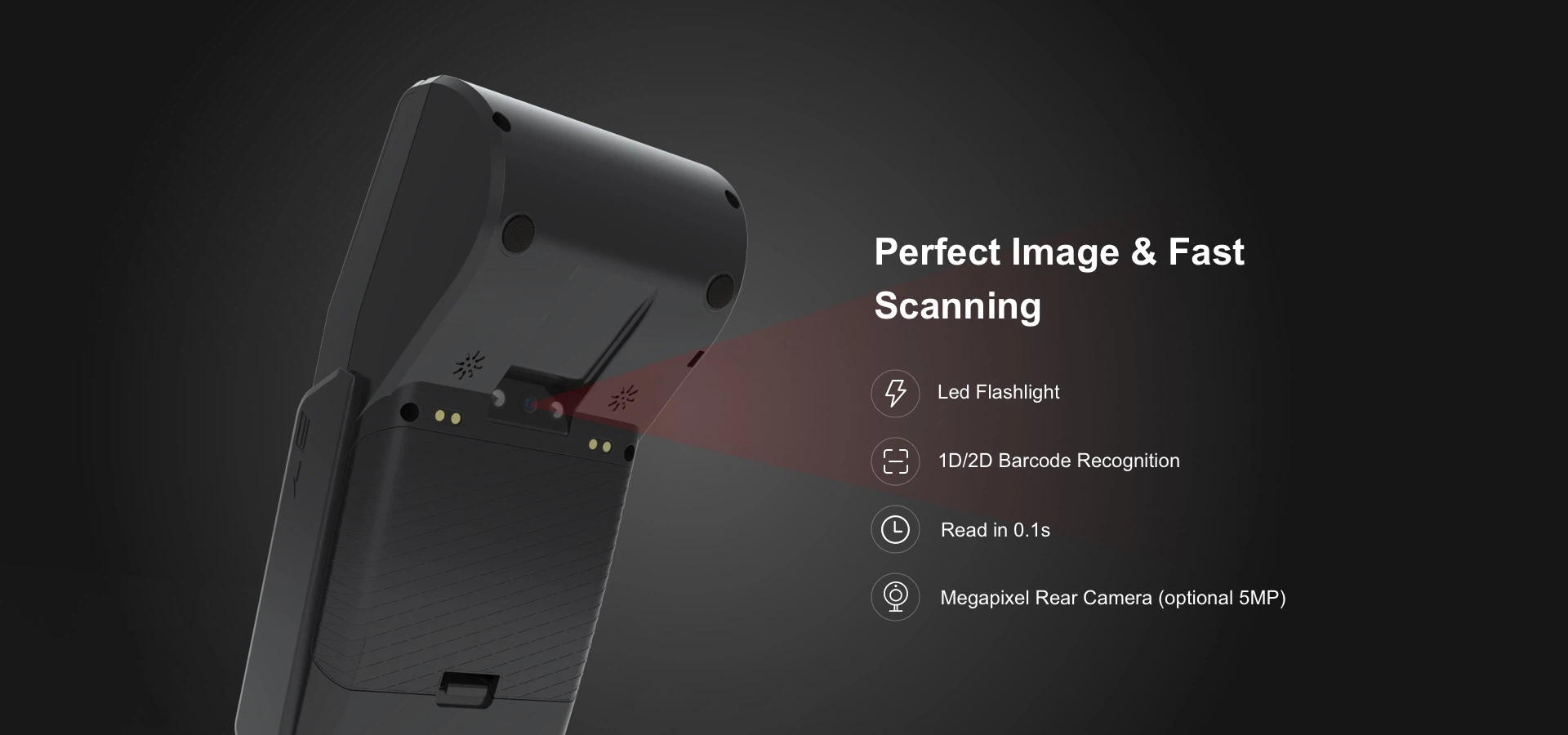

2MP fixed focus front camera, 1D/2D barcode scanning 5MP autofocus rear camera with flash, 1D/2D barcode scanning |
|
Microphone |
Built-in microphone |
|

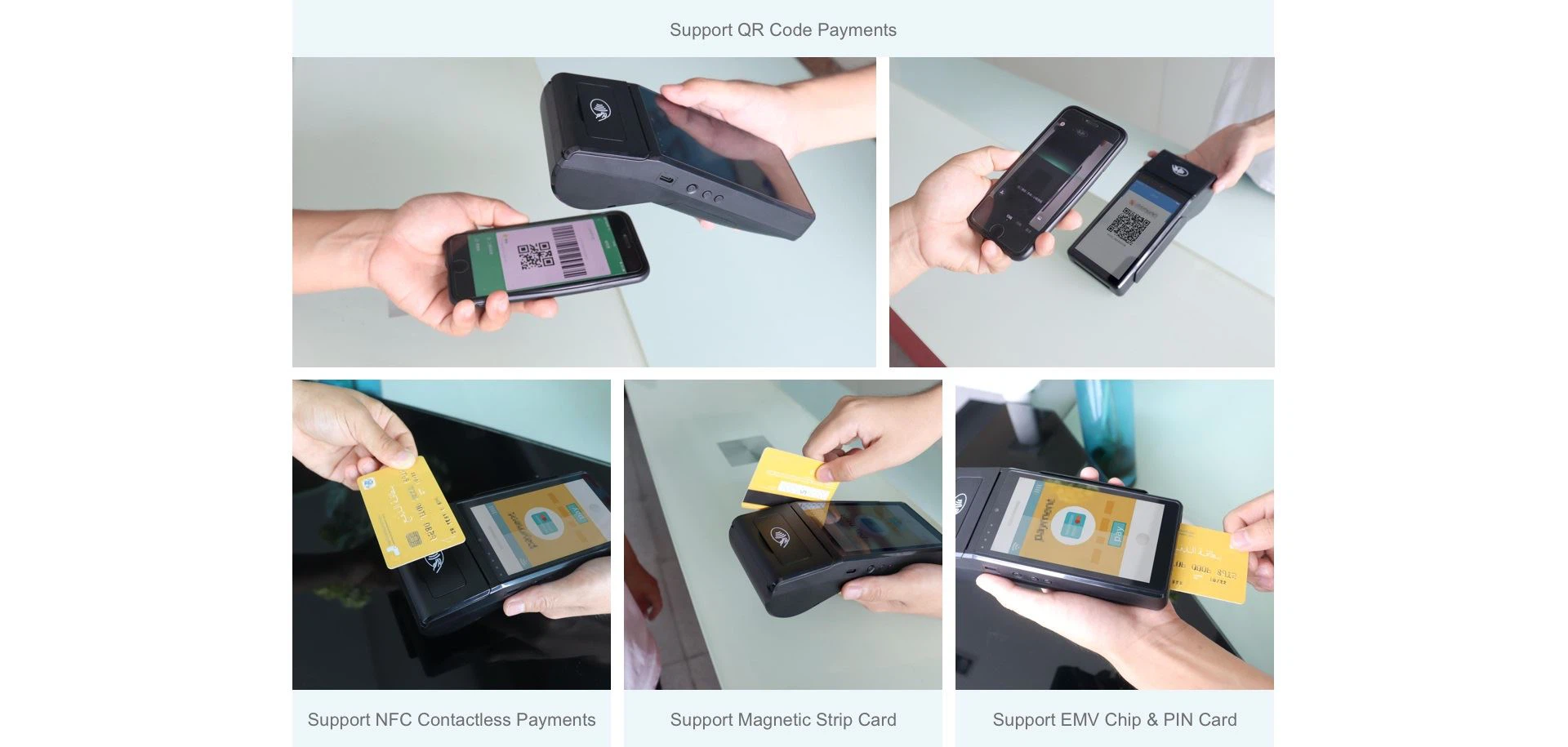

Card reading |
Magnetic stripe card reader |
ISO7810/7811/7812 Track1/2/3, Bi-directional Swipe speed range 10cm/s-120cm/s More than 400,000 lifespans |
Contact IC card reader |
1 user card slot 1.8V, 3V and 5V ISO 7816-3 ID-1 (full-size) ISO/IEC7816, T=0 and T=1 protocol, Class A, B, C cardsLife time is more than 500,000 times |
|
Contactless Card Reader |
Build-in antenna ISO/IEC 14443 Type A&B, Mifare© Protocol, Felica® Protocol Smart Card Clock Frequency: 13.56MHz |
|
PSAM card reader |
2 PSAM card slots, ISO7816 |
|
Interface |
External Connectors |
1 USB Type-C interface 1 USB base contact interface |
Power Supply |
Battery |
Lithium Ion battery, 3.7V/5200mAh (Sanyo brand cell, Typical Value) |
Adapter |
Input: 100-240V~50/60Hz 250mA Output: 5.0V ⎓ 2A (PSE certificate with Japan brand capacitor) |
|
Other |
Exterior Color |
Customizable by customers |
Size and Weight |
190mm*82mm*59mm(length * width * height) 440g(Terminal+Battery) |
|
Applicable environment |
Operating temperature: -10°C to 50°C Storage temperature: -20°C to 80°C Relative humidity: 10% ~ 95% RH (non-condensing) |
|
Related certification |
PCI 5.X Contactless EMV L1&L2 certification Contact EMV L1&L2 certification Paywave Certification Paypass Certification CCC certification |
High Security
Professional hardware encryption module
Complete security certification
Perfect hardware attack detection mechanism, teardown self-destruction
High Performance
Built-in scanner
Low power consumption and quickly charge
Self-optimized management of memory
