KS8123PLUS

Features Specification Video Contact to Sales

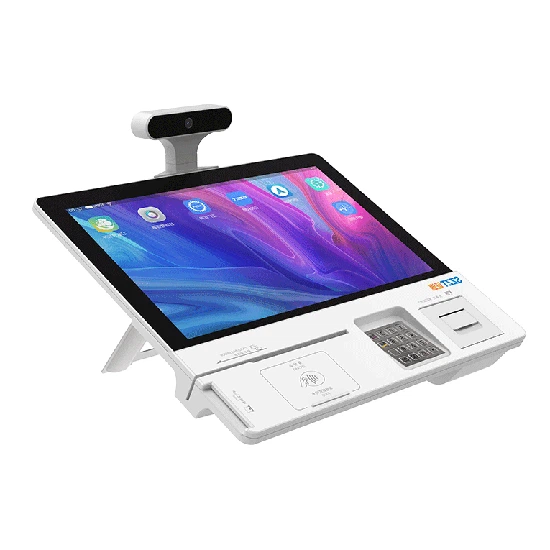

KS8123 Desktop Smart Terminal

1. Product Overview

KS8123 PLUS is a rural financial terminal built to meet the needs of rural inclusive finance. The product is equipped with functional modules such as magnetic stripe card, contact IC card, contactless IC card, receipt printing, financial EPP, and face recognition, can be used to assist farmers with withdrawal, cash remittance, transfer and remittance, social security card activation and payment, convenient payment and other common financial and people's livelihood services in rural areas; the terminal adopts a removable design, which is convenient for deep deployment to the frontline of rural areas, and can effectively extend the tentacles of banking services.

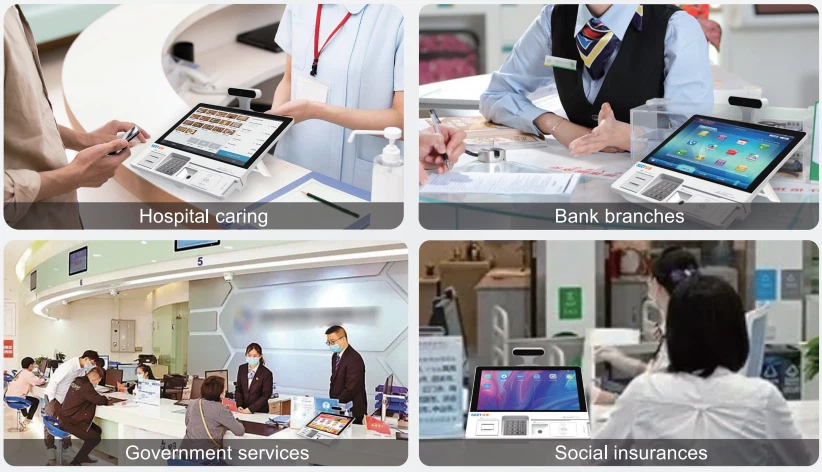

Application scenario:

product-822-472

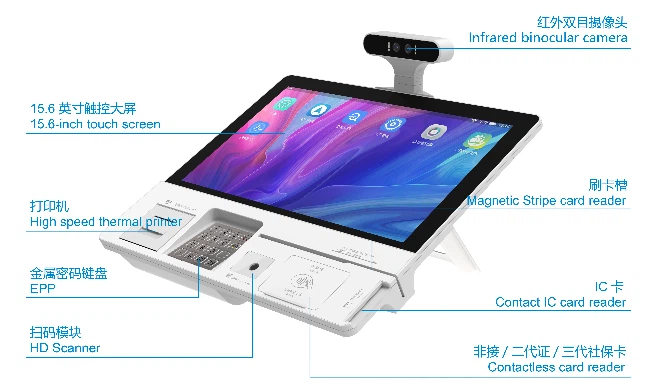

2. Features

15.6-inch 1920*1080 TFT LCD, supports multi-point capacitive touch.

Support WIFI, 4G full Netcom, Ethernet and many other communication methods.

Strong security identification module for the second-generation ID card.

Integrated magnetic stripe card, contactless card, contact IC card reading and writing functions and receipt printing functions in one.

Support biometric modules, such as face recognition, to quickly realize witness verification.

Support speaker playback.

Android10 system, easy to develop custom applications.

3. Specification

Module		Parameter Description
Core	Processor	ARM Quad-Core 2.0GHz High Speed Processor
	Memory	2GB RAM + 16GB ROM 4GB RAM + 128GB ROM(Optional)
	Operating system	Android 10.0
Communication	Mobile module	Support x1 standard SIM card slot, automatically identify 1.8V and 3.0V cards Support for 4G full Netcom(GSM, WCMDA, EVDO, TD-SCDMA, TD-LTE, FDD-LTE)
Communication	WIFI	Comply with IEEE802.11 b/g/n 2.4GHz
Output	Display	15.6 " 1920 *1080 TFT LCD
	Printer	Built-in high-speed thermal printer, printing speed: 12 lines/second; Paper width (58±0.5)mm; Paper roll thickness: 40mm(outer diameter);
	Speaker	Built-in speaker, power 2W, sound pressure 82dB ± 3dB Support audio playback
Input	Keyboard	EPP
	Touch Screen	Multi-touch capacitive touch screen
	Scanning	Support 1D and 2D codes
	Second-generation ID card (optional)	Operating frequency: 13.56Mhz ± 7Khz Reading distance: 0 ~ 5cm Reading time:<1s Energy output: antenna surface electromagnetic field strength (Hmax) <7.5A/m rms
	Face Recognition (Optional)	Optional Huajie 3D camera and cloud slave binocular camera, support WeChat face SDK or UnionPay face
	Environmental camera (optional)	More than 1 million pixels Resolution 1280*720 The maximum number of frames is 30 frames per second. Support environmental photography
	Magnetic stripe card, passbook reader	Full three-track magnetic head, supports two-way card swiping Low coercivity magnetic stripe cards supporting ISO7811-2 standards High coercivity magnetic stripe cards supporting ISO7811-6 standards Card swiping speed range 10cm/s-120cm/s Life is more than 400,000 times
Interface	USB	2 USB Type A
	RJ45	1 Ethernet interface
	RJ11	1 RJ11 interface
	MINI USB	1 MINI USB interface
	HDMI	1 HDMI interface
	Power interface	1 power interface
Power Supply	Adapter	Input: 100-240V, 50/60Hz, 1A Output: 12.0V/ 3A
Other	Dimensions	400mm * 340mm * 60mm (length * width * height)
Other	Applicable environment	Operating temperature: 0 ℃ ~ +50 ℃ Storage temperature:-20 ℃ ~ +70 ℃ Relative humidity: 10% ~ 90% RH (no condensation)
