Linux GPRS portable POS terminal KS8218 handheld financial terminal has fashionable and small appearance, and friend desktop, uses TFT colorful screen and touch screen method...

Linux GPRS portable POS terminal
KS8218 handheld financial terminal has fashionable and small appearance, and friend desktop, uses TFT colorful screen and touch screen method to make the operation become extremely convenient. It can easily connect to system server through various kinds of network ways to achieve consumption transaction. Equipment has features of high reliability and high security, particularly suitable for places such as convenience stores and supermarkets.

1.Applications
Small sum of consumption, charge system, hotel, catering, entertainment industry, clothes commerce, tobacco industry

2.Features
High security
Encrypted data transmission for data security
Set the operation program and fulfill the payment in combined with background
Flexible deployment
GPRS, CDMA, Bluetooth and Wi-Fi networking modules for flexible deployment of terminal devices.

3.Specification

Items

Specifications

Basic configurations

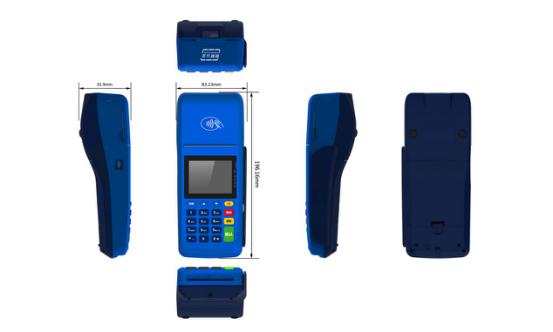

Dimensions

196MM*82MM*50MM

Processor

High performance 32 Numbered secure CPU

Memory

High speed large capacity FLASH

Operating system

LINUX

Display

2.4" TFT, 320*240

IC card reader

PBOC3.0, support more than 500000 plugs

Magnetic card reader

ISO 7812 standard, 1/2/3 magnetic track; support bi-directional card reading for more than 300000 times

Physical interface

1 USB interface (TTF serial port)

Pin pad

Built in encrypted pin pad, 10 numeric keys, 1*1#2 directional keys, 5 function keys

Power

5V 1.0A

Battery

3.7V, 2200 mAh

Environment

Temperature:-10°C -50°C
Humidity:30%-85%,non-condensing

Optional configurations

Communications

2G/3G/4G optional

Certificate

CCC, PBOC L1&L2, EMV, Telecommunication equipment network access license


4. Software Support:
Provide KOS SDK 2.0 API function and development environment
Provide test acceptance program
Equip with KS8218 firework download and application updating tool
Support development of clients' related application software

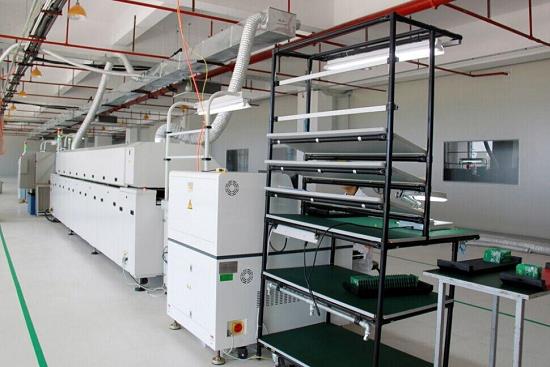

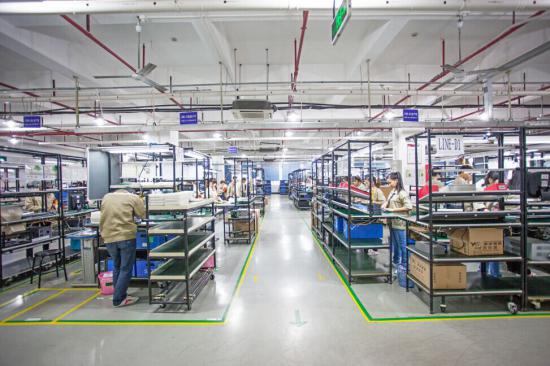

5. POS terminal workshop gallery




6. Company overview
SZZT Electronics CO., Ltd (Stock code: 002197) started in 1993 with registered capital of 66 million USD, grown as the global biggest financial payment and security product base, and provides the most thoughtful financial payment infrastructure services for customers.

The company has established 2 industrial parks in Shenzhen and Changsha, four large-scale IDCs in Shenzhen, Dongguan, Guangzhou, Changsha, 5 R&D centers, 22 branch companies and 331 after-sales service dots spread over the country.

SZZT Electronics CO., Ltd owns the patent of encrypt pin pad, self-service terminal and POS terminal near 200 terms ,and develops the password security chip with independent intellectual property, established high leveled automatic manufacturing line of financial terminal and advanced IOT cloud computing platform, offers a variety of differentiated financial payment solutions included terminal, business software, platform operations,ect. Our products spread over 160 countries and area among the world.


7. FAQ
(1).What is POS?
POS (point of sale) is a kind of multi-function terminal, install it on merchants accepting credit cards and branch with computer s linked into a network, you can achieve automatic electronic funds transfer, it has the support of consumer, pre-authorization, balance inquiries and transfers and other functions, safe to use, fast and reliable.

(2).What is the application of POS?
The POS terminal can be used on any place related to the financial payment issues, like financial, retail, hotel, electricity, gas and other industries.

(3).What is the major component of POS?
Host, Screen, Keyboard, Card Reader, Printer,  Communication Module, Power module, etc.
With the development of the market, more and more new kinds of POS appears in the market

(4).What is the communication type of POS?
Wireline: LAN/Modem
Wireless: GPRS/3G/4G/Wifi/Bluetooth

(5).Do you supply software for the POS terminal?
We supply POS terminal hardware, and provide you the complete SDK for you to develop your own POS software.


Welcome to purchase the linux gprs portable pos terminal with our professional China manufacturers and suppliers, and check the quotation with us. We will offer you the best after-sale service and fast delivery.
