PCI EPP For Kiosk Solutions

The SZZT EPP ZT596F is the top-of-line encrypting PIN pad, offering manufacturers and integrators one of the most secure 3DES-compliant input devices available on the market. Optimized for usage in self-service kiosk, ATM, and self-payment gas pump. The ruggedized design of the EPP 596F are built to withstand the most severe fraudulent attacks while complying with payment security standards on the back end.

ZT596F features with Braille equipped, supports Remote Key Loading from SZZT, giving customers an open-standard, flexible on-line key loading solution that is more secure and cost-effective than traditional dual-control split knowledge key installation and maintenance.

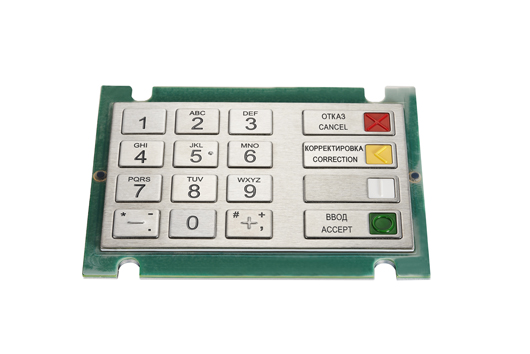

Encrypted PIN Pad - ZT596F

Dimension: 176*132.4*30mm

Panel dimension: 160*102.4mm

Weight: 900g

Compliance: PCI 3.x approval

Approval NO. 4-10091

Applications:

ATM, ADM, CDM, CRS PIN input

Gas Station & petrol self-service

Self-service ticking kiosk

Self-payment kiosk solutions

Companies looking for to make upgrades to comply with Tripe DES standard

Features:

Stainless steel keys in a polymer keyboard frame

Ability to customize layout

Raised keys with optional embossing

3DES and RSA (2048)

Watertight when properly installed (IP65 front of keyboard)

Connectors for function keys

USB 2.0 AND RS-232 interfaces

512 KB Program

512 KB Data (key) storage

-25℃+60℃ temperature range

Vandal resistance: IK08

Three million-cycle keyboard lifetime

Benefits:

Provides ATM with advances security features to keep up with changing and regulations

Attempts fraudulent attacks results in the destruction of secure data

Easy connectivity to various terminals through USB and RS-232 ports

Ruggedized design can withstand both indoor and outdoor applications

Able to withstand external force, liquid penetration and intense heat

Operates on standard software that supports common encryption algorithms

Access to top EPP security experts in industry through SZZT support.

Certifications:

PCI 4.x/3.x/2.x approved

Triple DES compliant

CE approved

RoHS compliant
