ZT2312

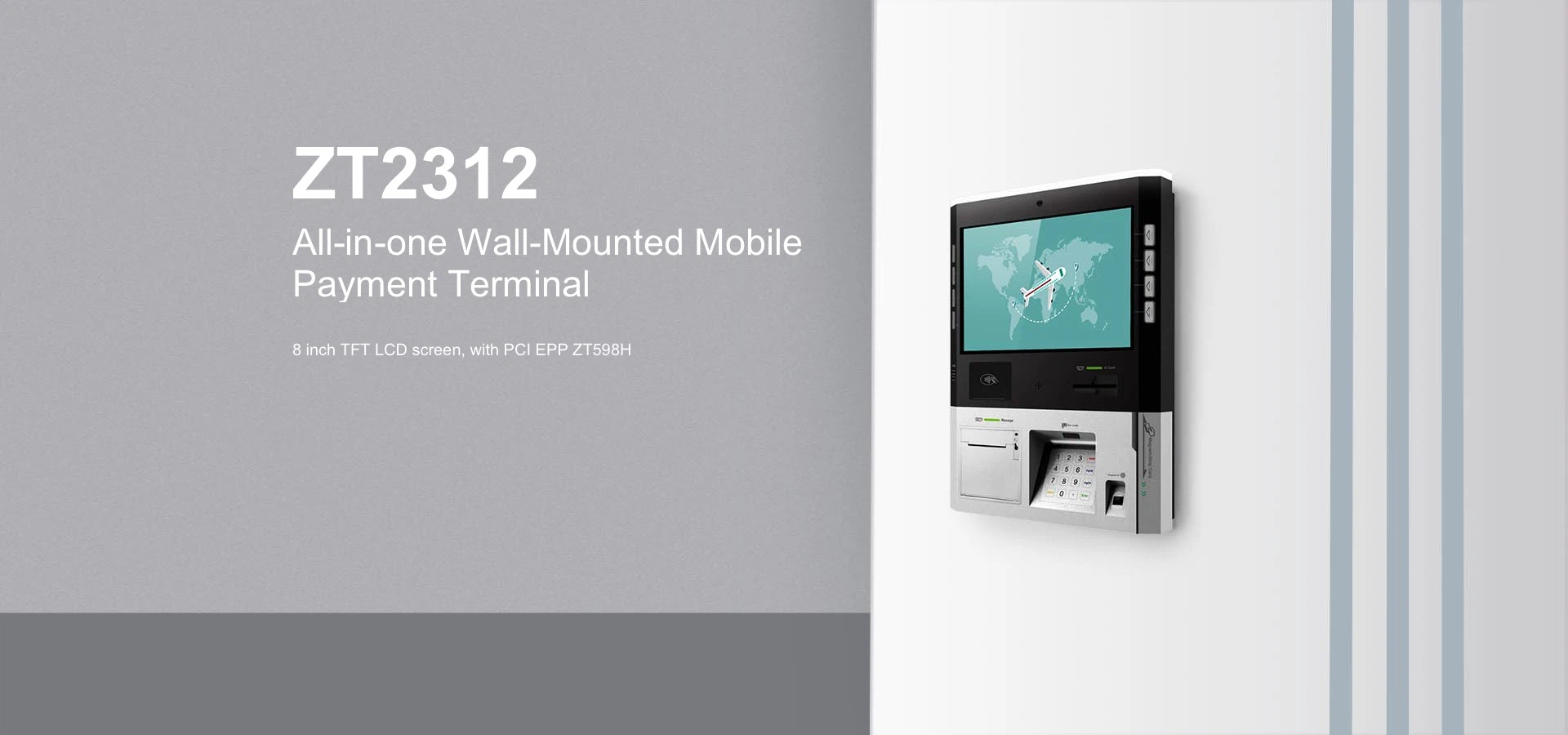

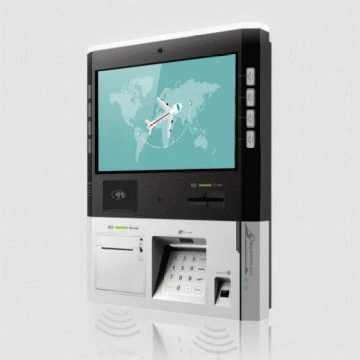

ZT2312 is an intelligent, easily manageable and maintainable new generation wall-mounted Payment Kiosk.
* Solid and reliable stainless steel shell *
Powerd by fastest of processorsto simultaneously run multiple applications under the highest levels of in-built payment security
Support Magneti Card Reader, SAM Card Reader, Contactless IC Card Reader, IC Card Reader etc.
The high-impact glass and special feinforcement engineering along the sides ensure the touch screen perfect for any unattended environment
Module |
Specifications |
|
Core |
Processor |
Dual core 1.0GHz |
Memory |
1GB DDR3, 8GB eMMC |
|
Operating System |
Linux operating system |
|
Communication |
Wired Communication |
TCP/IP protocol, support 10M/100M adaptive |
WIFI |
Compatible with CDMA2000/WCDMA/LTE(4G)/GPRS four modules |
|
Output |

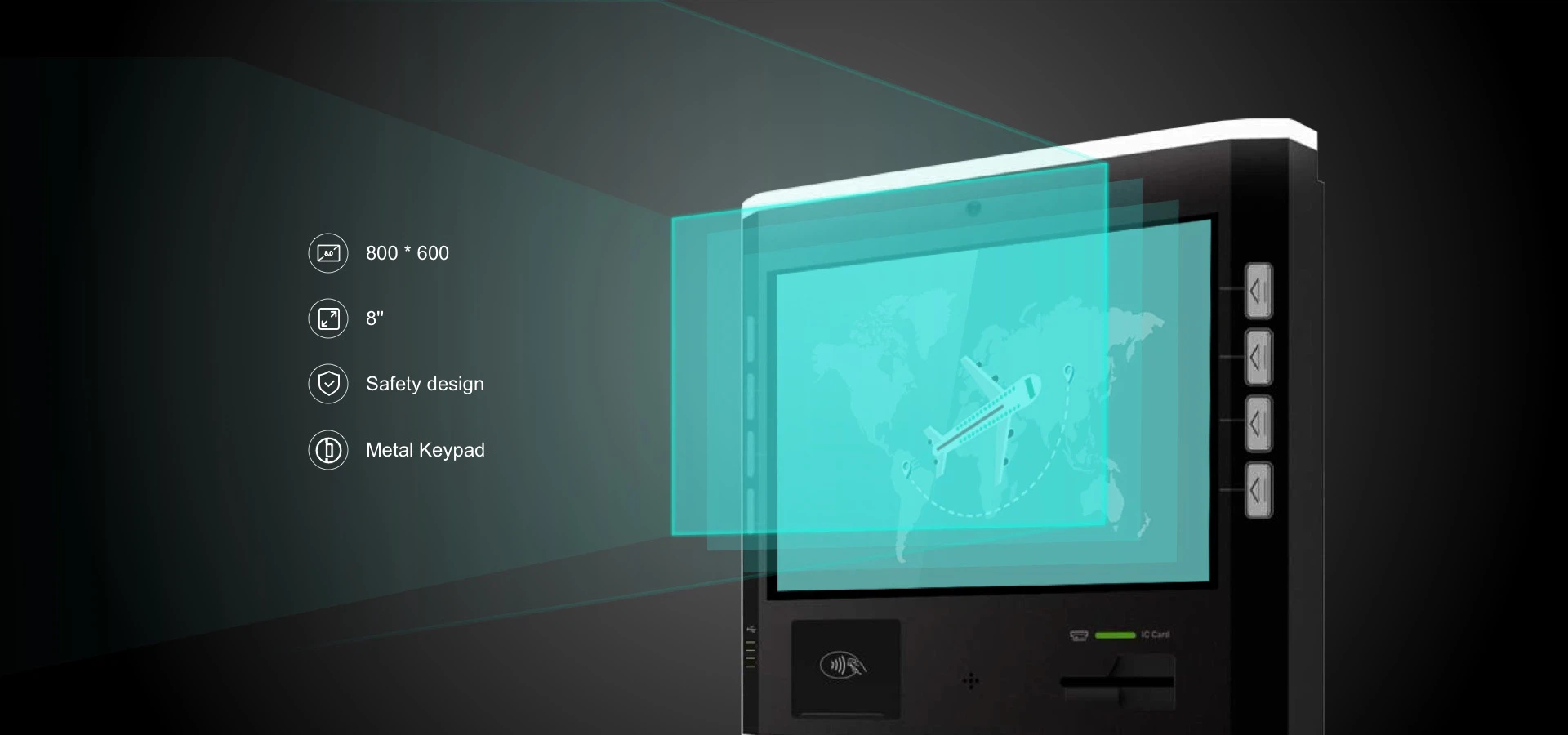

TFT Display |
8-inch resolution: 800 * 600 |
Thermal Printer |
Receipt printer: printing width 80mm, line thermal printing speed up to 150mm/sec, automatic paper cutting; with pre-empty paper detection, paper shortage detection, black mark detection devices. |
|
Audio |
Built-in 2 channel speaker audio output, maximum output power 0.5W |
|
Camera |
2MP pixel pinhole camera |
|
Touch Screen |
Resistive touch screen: high resolution, high-speed transmission response: less than 10 milliseconds (finger input). Surface durability: single-point touch more than 1 million times (Polyester stylus) |
|
Extended Function Bar |
Support externally extended button function bar. |
|

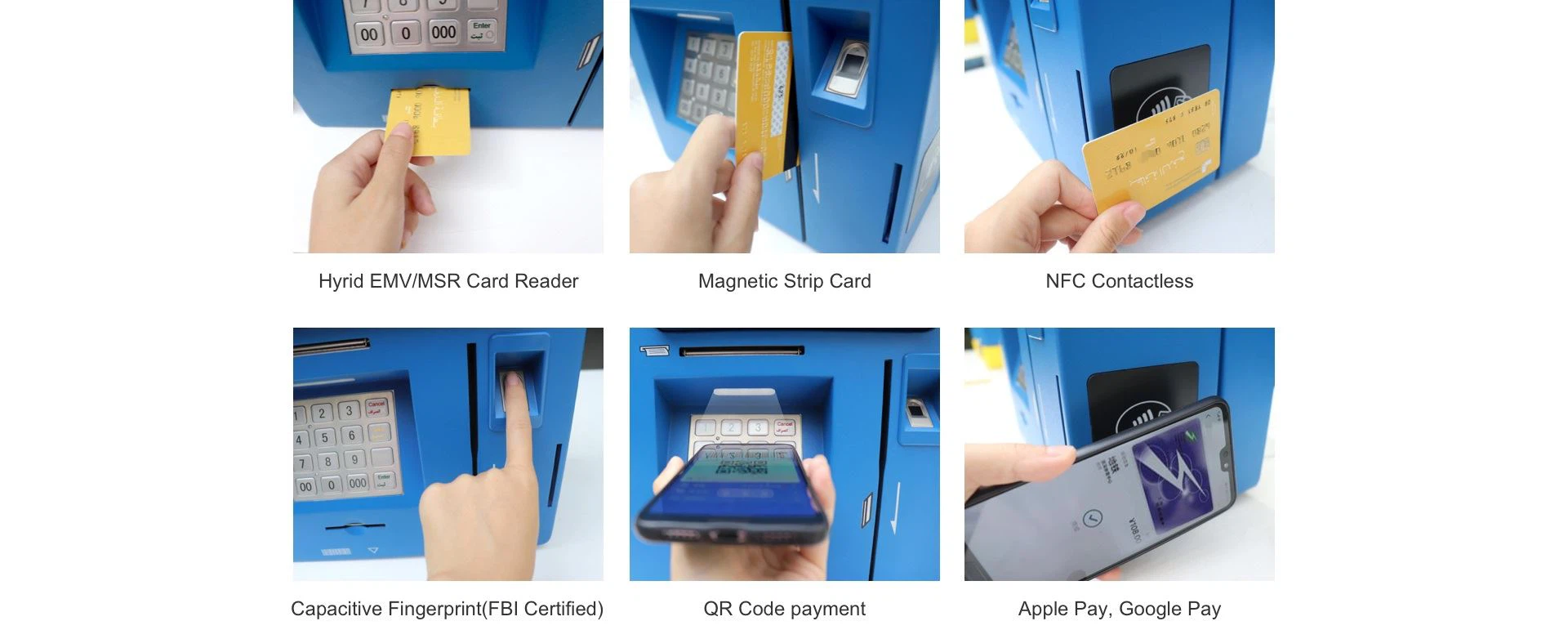

Card Reader |
Magnetic Stripe Card Reader |
1/2/3 track, can swipe the card in two directions, conform to ISO7811 standard, life span can reach more than 400,000 times, Support bilateral magnetic head. |
Contact IC Card Reader |
Comply with ISO7816/EMV2000 standard. Support EMV card and memory card reading and writing. Passed EMV level 1 and level 2 certification. This machine is equipped with 2 PSAM cards, conforming to ISO7816 standard |
|
Contactless IC Card Reader |
Support ISO/ICE 14443A and ISO/ICE 14443B standards; Support Mifare S50 S70 card, meet QPBOC certification, EMV certification requirements |
|

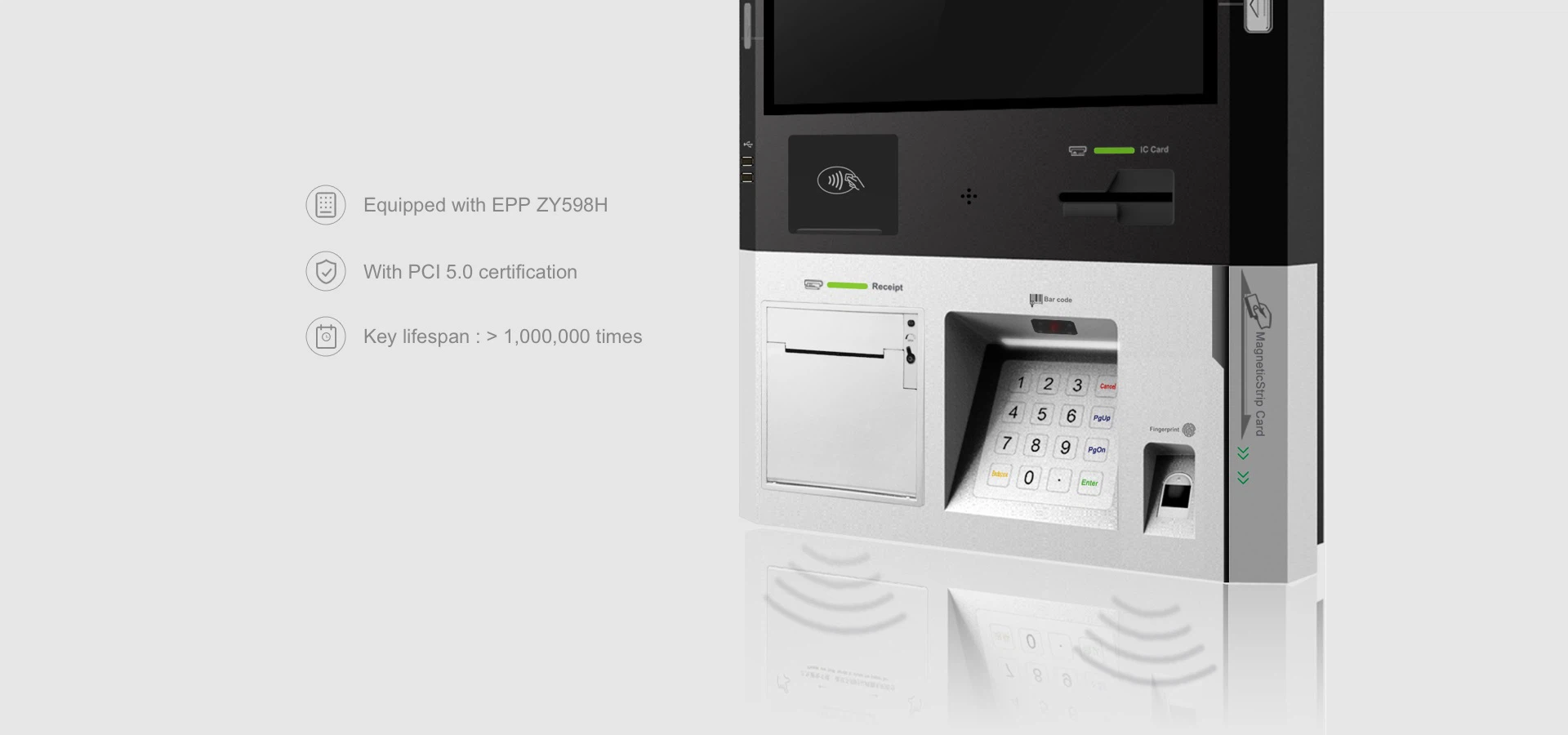

Keyboard |
Built-in Encryption PinPad |
Hardware encryption, supports 3DES, RSA, SM2, SM4 algorithms, complies with PCI3.0 specifications; Supports multiple sets of master keys and working keys. |
Keyboard Lighting |
Controllable keyboard lighting switch |
|
Other |
Backup Battery |
Battery capacity: 7.4V/700mAH |
Wall-Mounted Cabinet |
The material of the chassis is magnesium alloy, with beautiful appearance, strong structure, excellent mechanical properties and good electromagnetic shielding performance. The surface layer is all sprayed with high-quality outdoor plastic powder, which is waterproof, rust-proof, anti-corrosion, and wear-resistant. The internal wiring is neat and standardized. good ventilate. |
|
Size and Weight |
331mm*224mm*115mm |
|
Power Supply |
Power input: AC 100~240V 47~63HZ Dual power output DC 24V/2A DC 12V /2A Output voltage range: 24V±5% 12V±5% |
|
Applicable environment |
Operating temperature: 0°C to + 50°C Relative humidity: 10% ~ 90% RH Storage temperature: -20°C to 70°C Relative humidity: 10% ~ 90% RH (non-condensing) Input voltage: AC220V±10% 50H±1Hz |
High Security
Professional hardware encryption module
Complete security certification
Perfect hardware attack detection mechanism, teardown self-destruction
High Performance
Large-screen color LCD display, support voice navigation, fingerprint, touch operation
Low power consumption and quickly charge
Self-optimized management of memory
