SZZT’S ZT8225 GPRS, CDMA Handheld POS Payment Terminal With Data Security Description: SZZT has successfully launched the ZT8225, a smart date and easy to handle mobile POS terminal , it features that different color designing ,easy integration ,flexible communication and connectivity , meeting...

SZZT’S ZT8225 GPRS, CDMA  Handheld POS Payment Terminal With Data Security



Description:

SZZT has successfully launched the ZT8225, a smart date and easy to handle mobile POS terminal , it features that different color designing ,easy integration ,flexible communication and connectivity , meeting the highest security levels to EMV Level 1 and Level 2 and PCI 3.0 online/offline certified ,as option for 1D/2D barcode and Customized MODEM/GPRS/CDMA/3G/Ethernet communication for our clients.

Based on wireless POS and combined with background management system, ZT8225 features CDMA/ GPRS communication, real-time data transmission, software upgrade and user-friendly interfaces. And this device can successfully complete the whole process of payment management at all times and places.



Applications:

National chains, Hospitality, Convenience stores, specialty markets, and more..



Functions:



High security

Encrypted data transmission for data security

Set the operation program and fulfill the payment in combined with background



Flexible deployment

GPRS, CDMA, Bluetooth and Wi-Fi networking modules for flexible deployment of terminal devices.



Specifications:

Items

Specifications

Basic configurations

Dimensions

215MM*90MM*65MM

Processor

High security ARM9 32-bit CPU, 400HZ

Memory

128MB SDRAM , 128MB FLASH

Operating system

LINUX/ WINCE

Display

3.5" TFT, 320*240

 IC card reader

ISO7816-1/2/3, PBOC2.0,EMV 2000 compliance

Magnetic card reader

ISO 7810, ISO 7811 compliance

Physical interface

1 Mini USB, 1 of 3.5 Earphone hub, 1 SIM hub, 3 PSAM hub, 1 Power hub,

1 RS232

Keypad

10 numeric keys,7 function keys, PCI compliance

Power

Input voltage: AC 110V~220V 50-60Hz,Output voltage:5V 2A

Battery

3000 mAh Rechargeable lithium battery

Environment

-10°C -50°C

Humidity:5%-95%,non-condensing

Optional configurations

Communications

GPRS/ CDMA

Bluetooth/ WiFi ( Optional)

Certificate

Certificate

CCC/CE

PBOC2.0/EMV

PCI


RoHs


UL

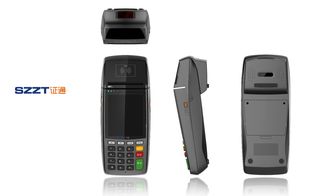

 ZT 8225.jpg
