ZT8623

ZT8623

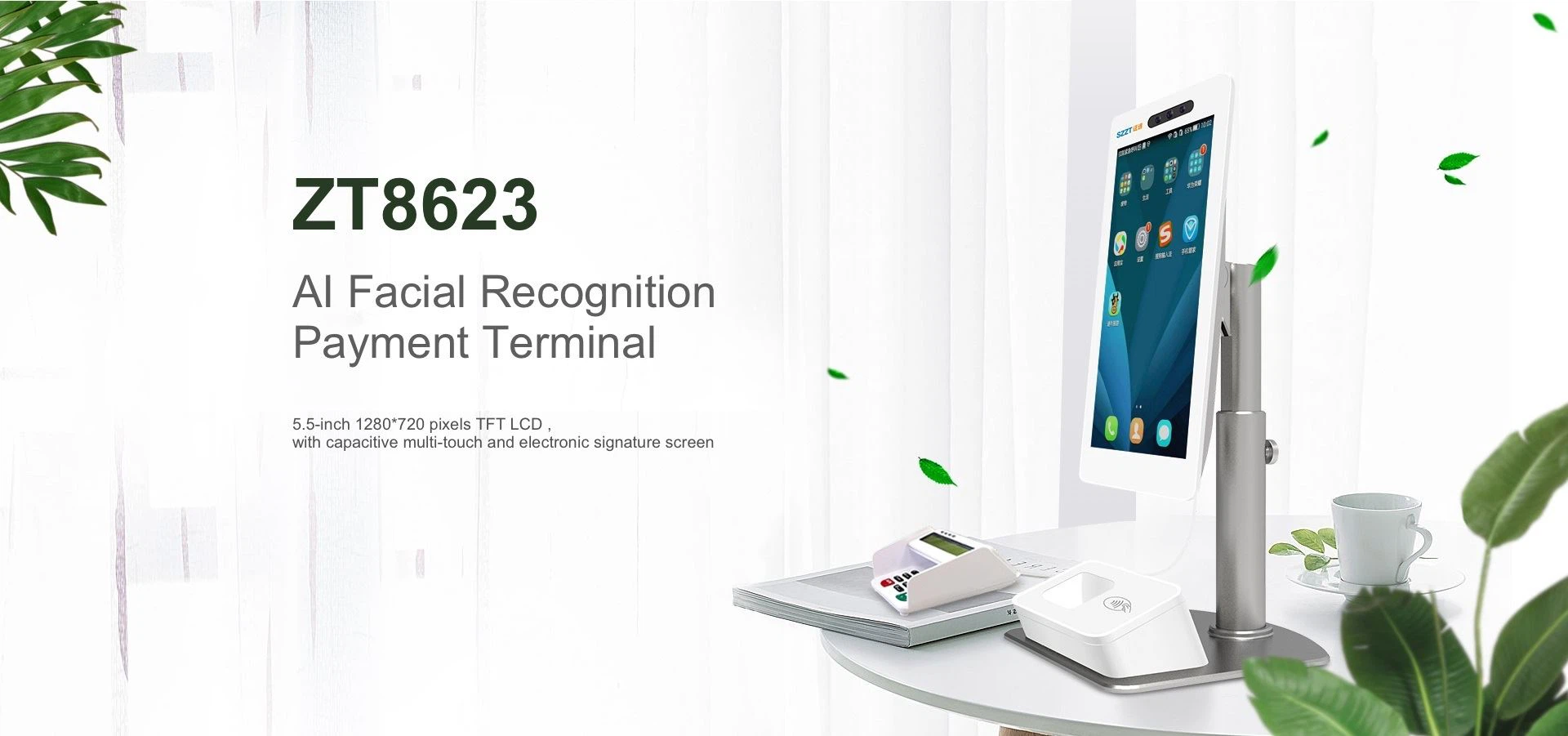

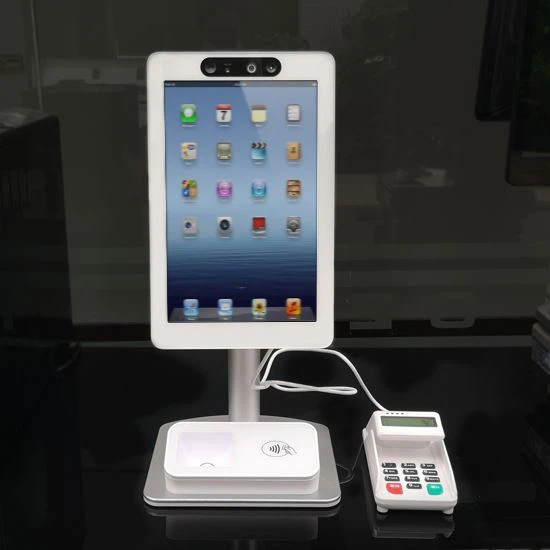

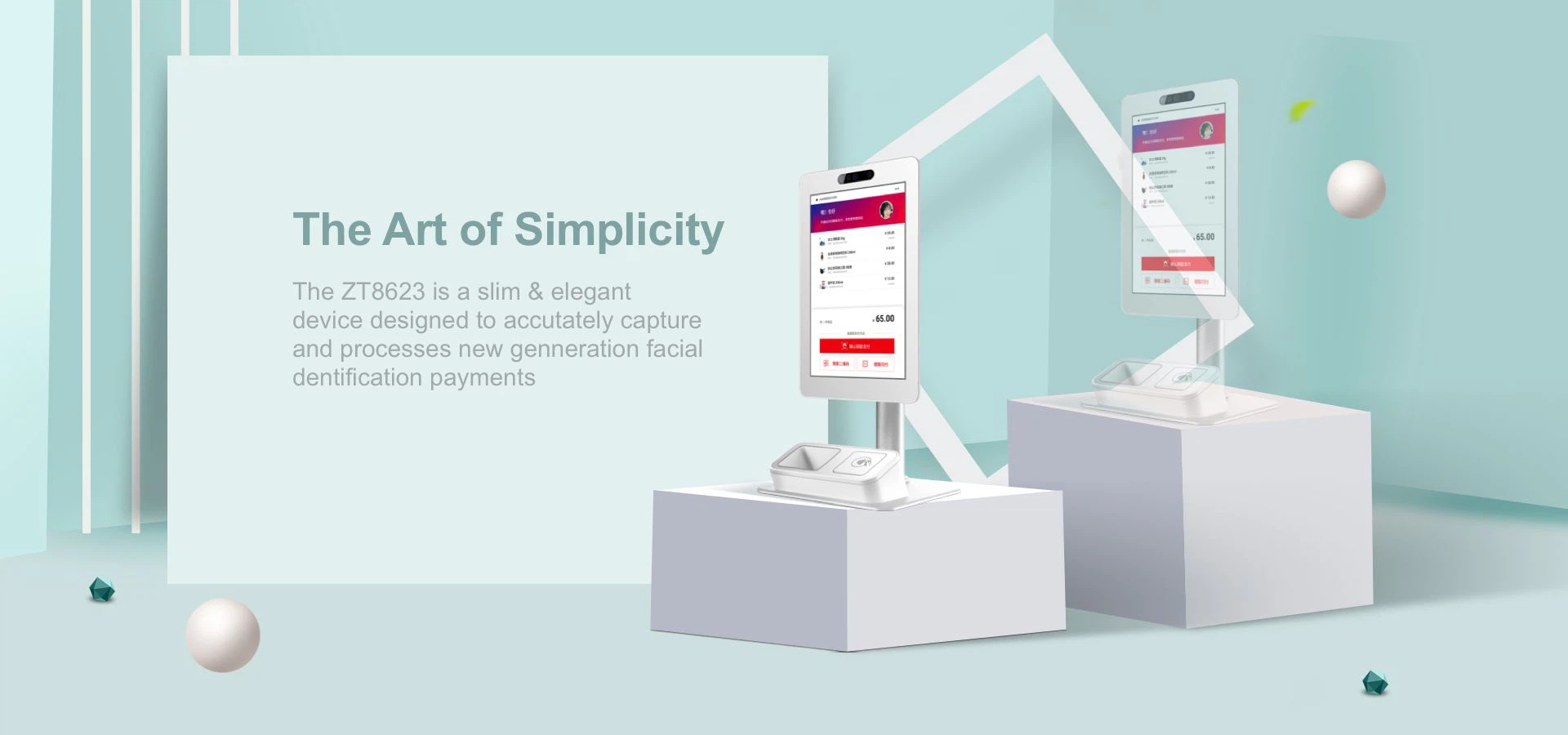

Product overview: ZT8623 is a smart face payment cash register terminal, which has passed the face recognition technology terminal security certification and complies with the UnionPay card acceptance terminal security specifications. ZT8623 adopts independent innovation and customized system platform in software, supports mainstream face payment systems such as PBOC, WeChat, and Alipay, and supports contactless IC card and one-dimensional code scanning payment; binocular infrared, 3D structure is configured in hardware Various types of face recognition cameras, such as light, TOF, etc., externally support a digital echo amount keyboard and a financial password keyboard to meet the needs of merchants to acquire orders independently. Main application areas: ZT8623 is mainly applicable to offline payment services in scenarios such as shopping malls, department stores, restaurants, retails, and hotels. It supports contactless IC cards, WeChat, Alipay, and other QR codes and face payments.


ZT8623



1 - 副本.jpg


Powerful Performance

The ZT8623 packs a state-of-art Octa-Core processor, has a huge memory capacity and offers all the benefits of the Android OS


分组 17.jpg

34 - 副本



Highest Security Standards

The ZT8623 is built with technology support QR codes and facial recognition payments.

Certified by PBOC & UnionPay, the ZT8623 guarantees secure and seamless transactions.


6 - 副本.jpg

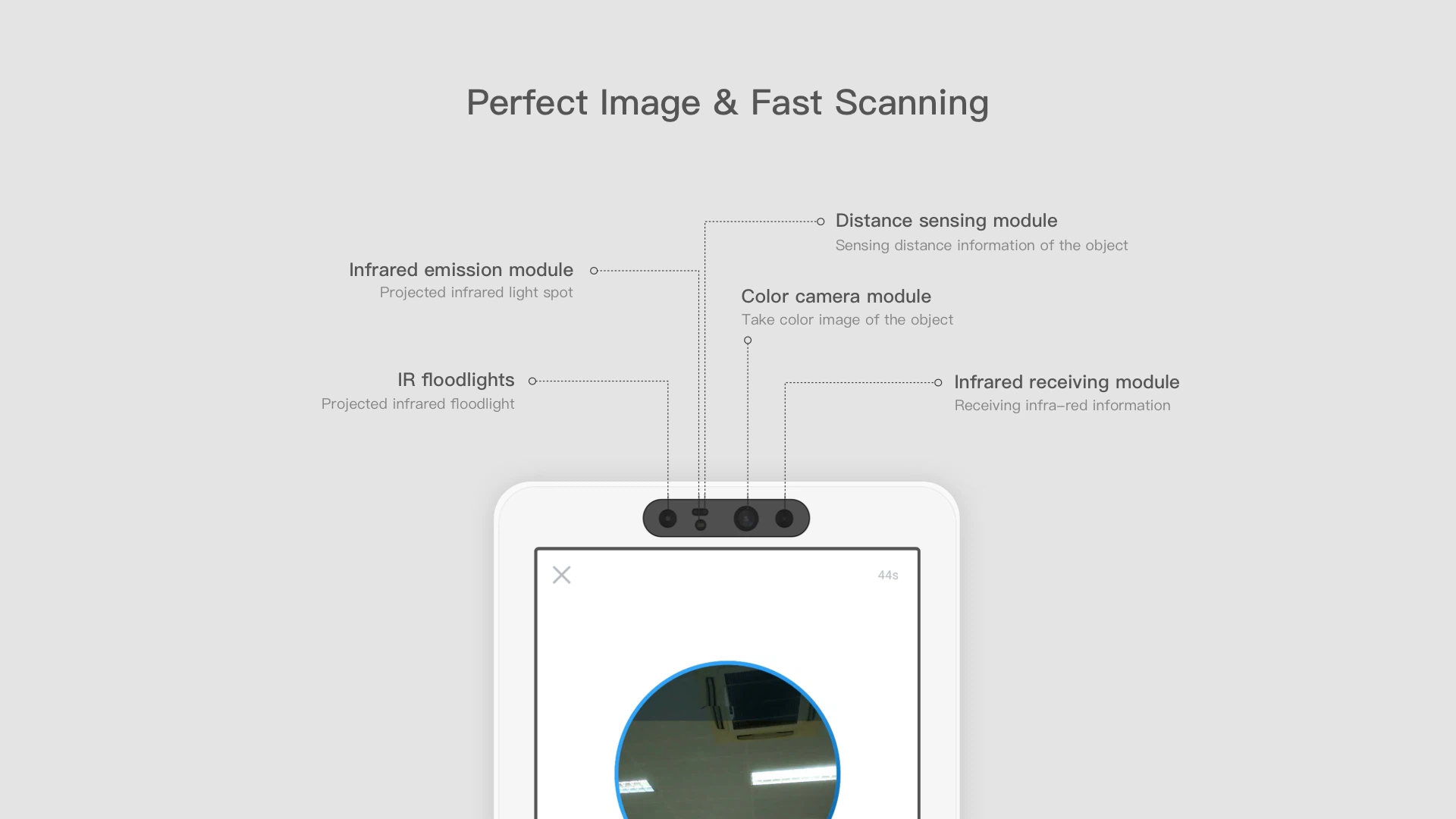

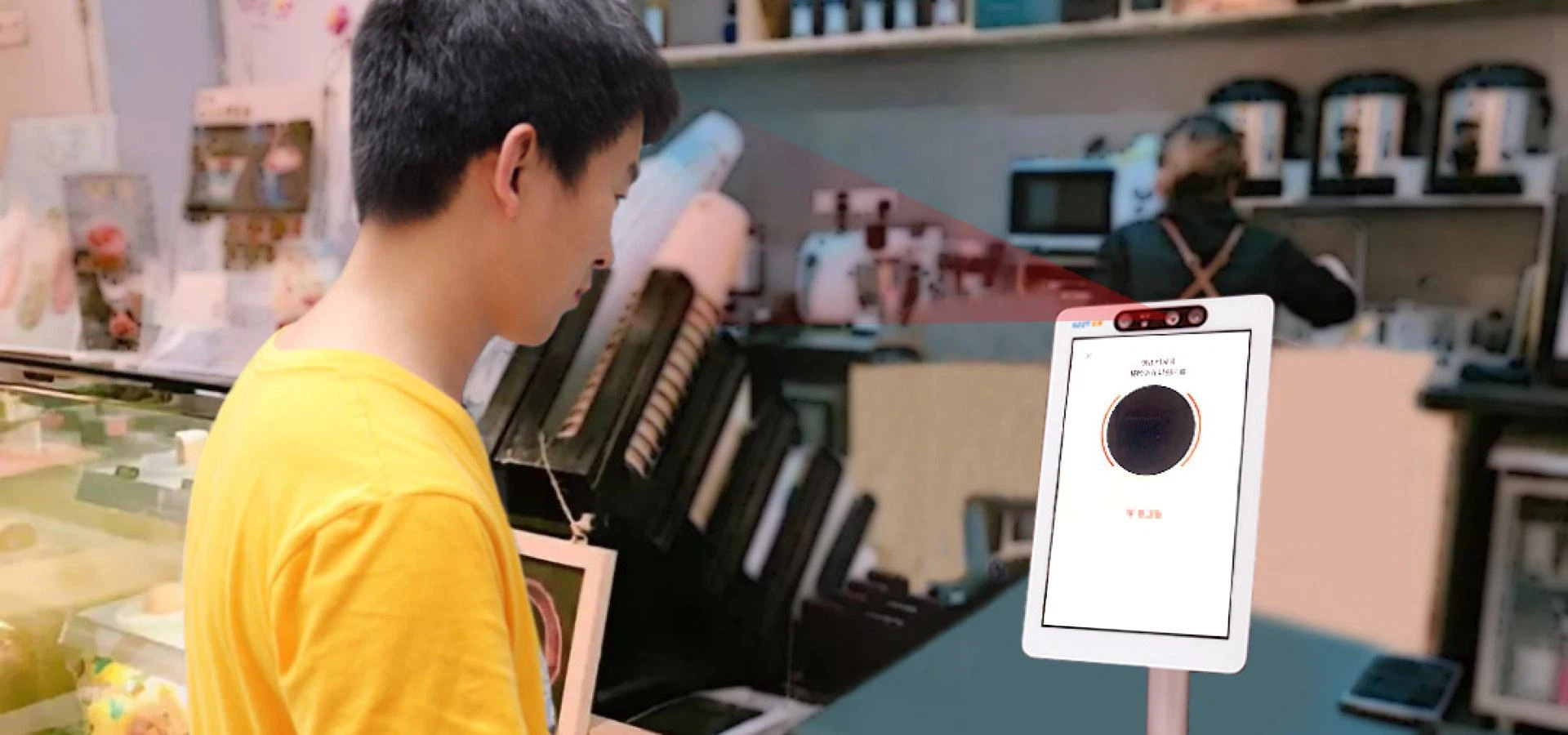

Facial Recognition

High-tech cameras support all the lastest 3D facial recognition software apps.

Perfect for fast & secure payment processing and improving customer loyalty and experience



7 - 副本.jpg

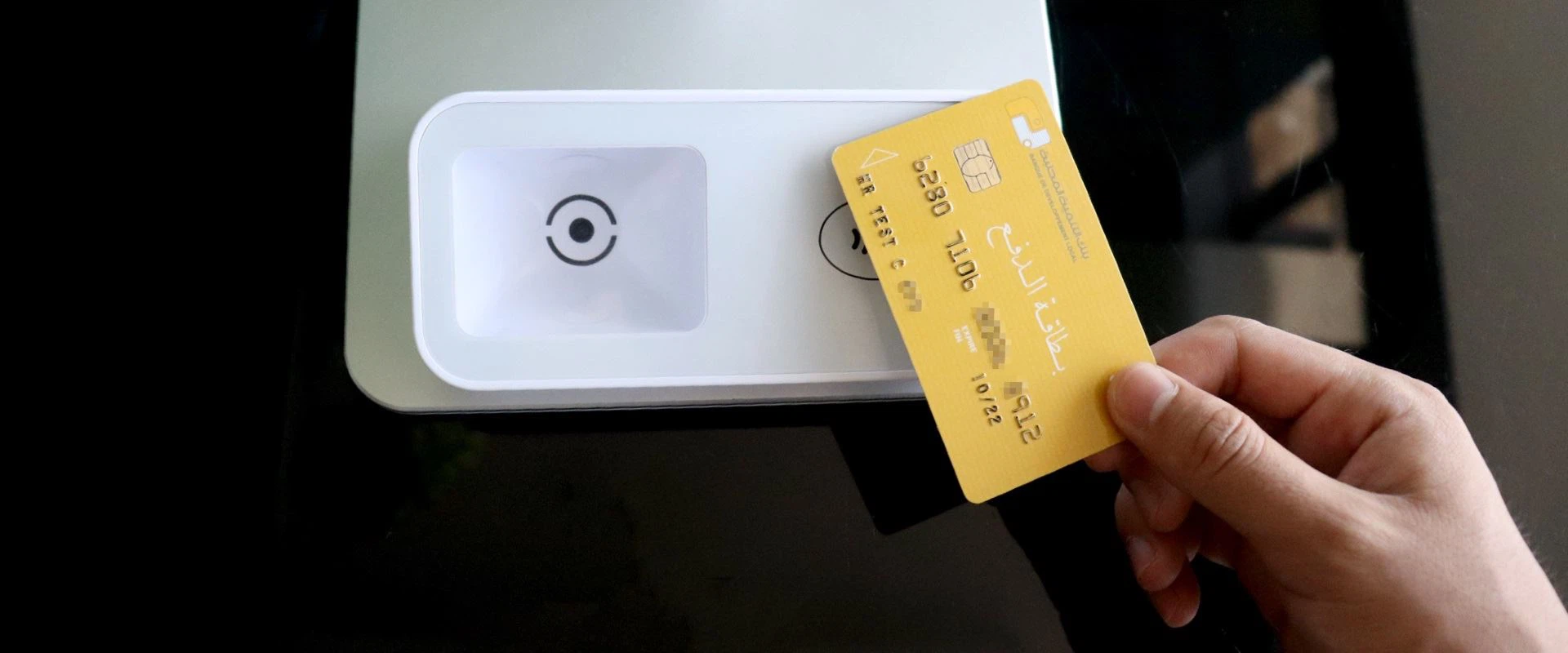

Non-Contact Flash Payment

Adopt the latest fast non-contact flash payment technology

Lead the new trend of future payment.


8 - 副本.jpg

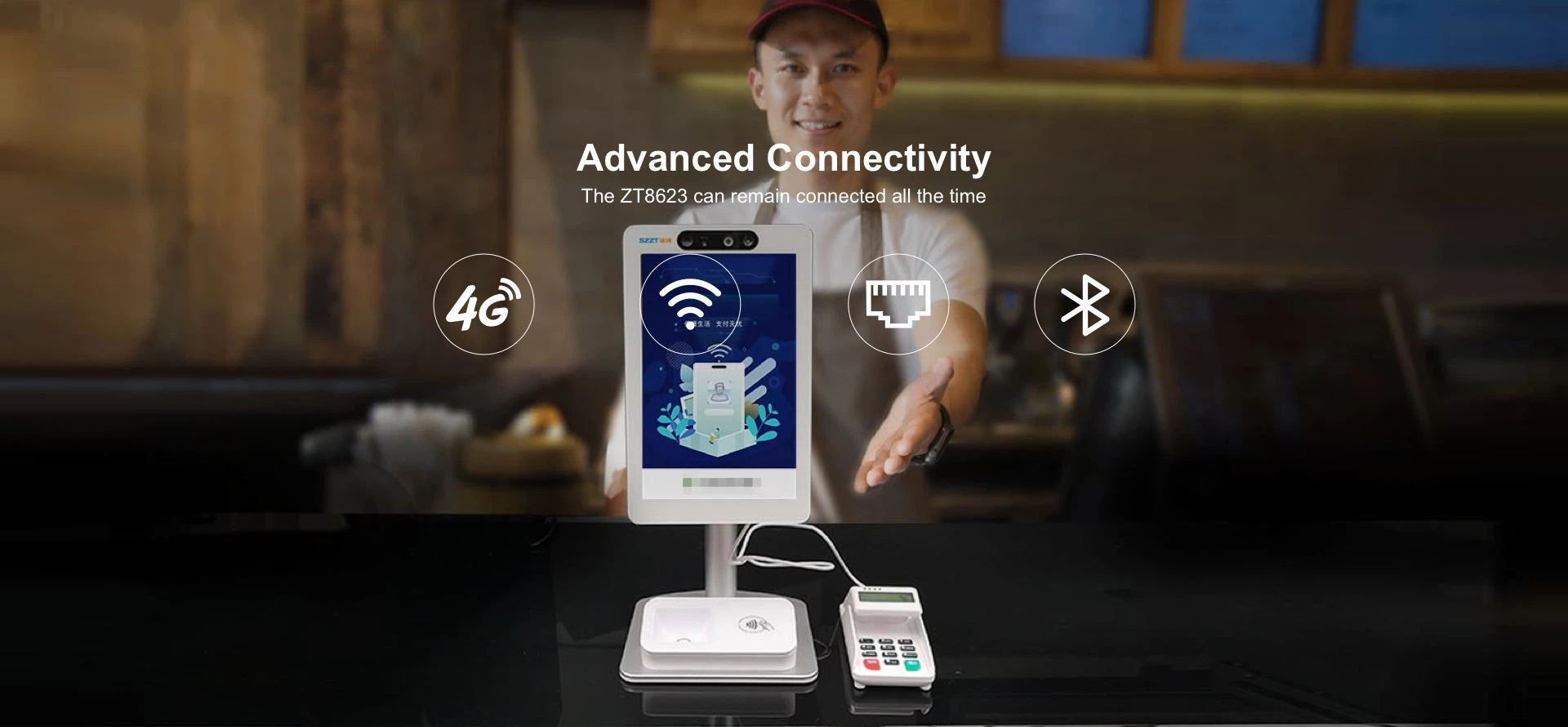

 Advanced Connectivity

The ZT8623 can remain connected all the time,support Bluetooth/Ethernet/WiFi/4G/3G/2G.


9 - 副本


Secure Electronic Payment Teminal Complete certification eliminates the verified time and equipment cost. ( EMV Level 1& Level 2, PCI, PayPass, PayWave, TQM, Rupay, MIR, ANATEL, BIS, CE, FCC, RoHS, etc.)
分组 14.png
Application
ZT8623 has been applied for retail shop, supermarket, cash register, account authentication, top-up, lottery, voting validator, transport validator, etc.


分组 16
Product Specifications

Module

Specifications

Core

Processor

8 core 2.0Ghz high-speed   processor

Memory

2GB RAM + 16GB ROM

Operating system

Android 9.0

Communication

WIFI

Conforms to IEEE802.11   a/b/g/n/ac standard

Support AP mode

Bluetooth

Support Bluetooth 4.0 BLE

4G

Supports 4G full Netcom

Output

Display

10.1 inch 800*1280 LCD with   backlight control

Multimedia

Comes with multimedia speakers,   prompting customers to operate

Input

Touch Screen

Multi-touch capacitive touch   screen,

Support touch operation, comply   with UnionPay electronic signature board specifications

Face Recognition

Optional support 3D structured   light or infrared binocular face recognition camera;

Support live detection;

Support scan code, algorithm   through BCTC security certification

Code Scanning Module

5 million pixel independent   code scanning module, in line with UnionPay payment product certification   requirements;

Support QR Code, EAN-13/UPC-A,   UPC-E, EAN-8, Code 128, Code39, Interleaved 2of5 and other common one-dimensional,   QR code reading

Contactless IC Card Reader

Optional support independent   contactless IC card reader;

Support ISO14443 Type A/B;

Comply with EMV4.3 and PBOC3.0   specifications

Amount Keyboard

Optional support for amount   numeric keyboard with digital echo function

Password Keyboard

A financial password keyboard   that meets the national secret standard; Supports non-contact IC card reading   and writing;

Meets relevant requirements for   financial non-contact IC card transactions

Interface

USB

2 USB ports

Micro USB

1 MicroUSB

RS232

1 RS232 interface

RJ45

1 Ethernet interface

Power Interface

1 Power interface

Adapter

Input100-240V50/60Hz 1.2A

Output12.0V 2A

Environment

Applicable environment

Working temperature: 0°C+50°C

Relative humidity: 10%90% RH

Storage temperature: -20 ° C ~   +70 ° C

Relative humidity: 10% ~ 90% RH   (no condensation)

Atmospheric pressure: 60106Kpa

Related   certification

China National Compulsory   Product Certification

Telecom equipment network   license

Radio transmission equipment   type approval certificate

PBOC3.0 Debit Credit Terminal   Level 1

EMV 4.3 Contactless Terminal   Level 1

PCI Certification


Product Keywords

ZT8623 is a smart face payment cash register terminal which has passed the face recognition technology terminal security certification and complies with the UnionPay card acceptance terminal security specifications



High Security

Professional hardware encryption module

Complete security certification

Perfect hardware attack detection mechanism, teardown self-destruction



High Performance

Customized Android 9 OS with the HIGHEST android performance

10.1”capacitive touch screen with the BEST user experience

Integrated face recognition module, independent optional 3D structured light, infrared binocular camera
