ZT8629

ZT8629

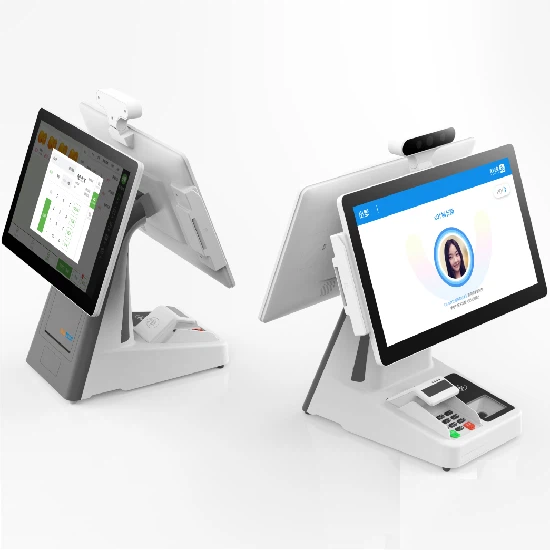

ZT8629 is a new type of desktop dual-screen intelligent terminal designed to meet the needs of financial payment. The product integrates functional modules such as code scanning, bank card, and identity recognition and so on.

Dual-screen Smart Terminal


Introduction

ZT8629 is a new type of desktop dual-screen intelligent terminal designed to meet the needs of financial payment. The product integrates functional modules such as code scanning, bank card, and identity recognition and so on. Suitable for strong identity authentication scenarios such as supermarkets, hotels, medical insurance, and public security etc., and this model also applied to offline financial business, like help farmer points, supermarkets, department stores, catering, retail and other scenarios.


Features

Double-sided, elegant and generous

Super-sized dual screens, classic inverted V design, dual screens with different display and double touch, perfect interactive experience;

Aggregate payment all in one

Multifunctional payment module, making payment convenient and fast;

Whole network communication, choose as you like

Support 4G, WIFI, Ethernet, Bluetooth and other communication methods, always online;

Rich interface, worry-free adaptation

Equipped with serial port, cash drawer, USB and other interfaces, it can expand various commercial peripherals.

Feature

Payment

Specifications

Module

Parameter description

Core

Processor

ARM 8 core 2.0GHz high speed processor

4 core Cortex-A73@2.0Ghz

4 core Cortex-A53@2.0Ghz

Memory

2GB RAM + 16GB ROM;

3GB RAM + 32GB ROM (optional)

Operation System

Android 9.0

Encryption Module

Support 3DES, RSA, AES, SHA-256 and national secret algorithm SM2/SM3/SM4 etc.

Communication

WIFI

Meet IEEE802.11 a/b/g/n/ac standard, support 2.4GHz and 5GHz dual frequency WIFI, support AP mode

Ethernet

Adaptive 10/100Mbps network access

Bluetooth

Bluetooth 4.2, support BLE

4G

Support 4G full Netcom

Output

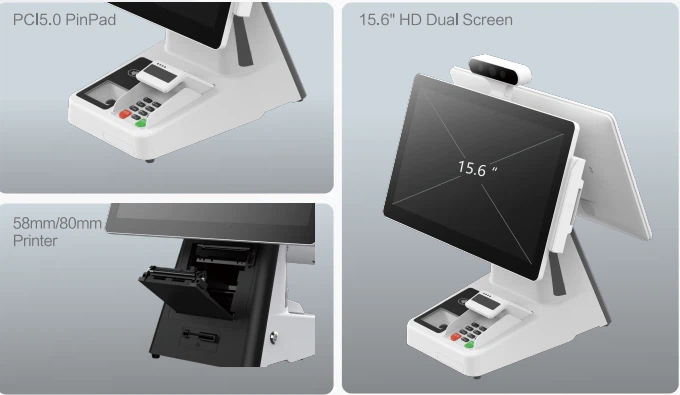

Main Display

15.61920*1080 HD LCD with backlight control

Secondary Display

15.61920*1080 HD LCD with backlight control

Multimedia

Built-in multimedia speakers, support voice prompts

Input

Touch Screen

Support dual touch

Multi-touch capacitive touch screen, in line with UnionPay electronic signature pad specification

Printer

Built-in high-speed thermal printer

Printing speed: 12 lines/s, easy paper loading structure

>100,000 receipts can be printed without failure

Paper width support: 58mm or 80mm

Paper roll thickness: the maximum support for paper rolls with an outer diameter of 80mm

Conform to GB18030 standard

Facial RecognitionOptional

3D structured light or infrared binocular camera, support live detection

ID Module

Optional

Work frequency: 13.56Mhz±7Khz

Read time: <1s

Scan Module

Support 1D &2D code

Including QR Code, EAN-13/UPC-A, UPC-E, EAN-8, Code 128, Code39, Interleaved 2of5 etc.

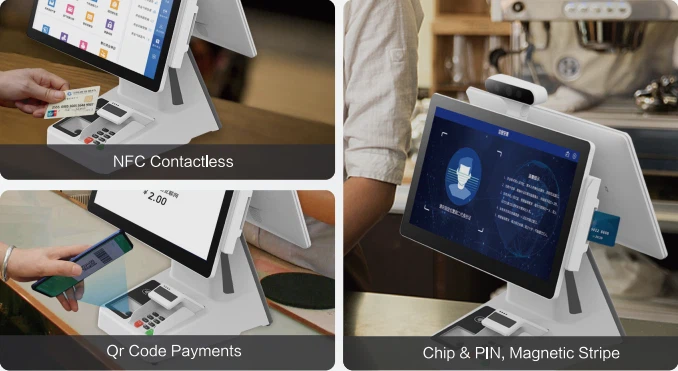

Card Reader

Contact IC Card Reader

Optional

1 user large card slot

Contact IC card supporting ISO7816 standard

Lifespan: >300,000 times

Contactless IC Card Reader

Optional

Support ISO14443 Type A/B, Mifare® One card

Comply with EMV4.3 and PBOC3.0 specifications

Magnetic Stripe Card Reader

(optional)

Full three-track magnetic head, support two-way card swiping

Card swiping speed range :10cm/s-120cm/s

Lifespan: >400,000 times

PSAM Card Reader

1 PSAM small card slot, in line with ISO 7816 specification

SIM Card Reader

1 standard SIM card slot, can automatically identify cards with 1.8V and 3.0V specifications

Pin PAD

EPP

Physical keys: 12 keys including number keys and function keys

Interface

USB

4 USB interfaces

RJ11

1 RJ11 cash drawer interface

RJ45

1 Ethernet interface

Power interface

1 power interface

SIZE

L*W*H

396mm * 295mm * 470.4mm

Power

Adaptor

Input: 100-240V50/60Hz ; Output: 24.0V 2.5A

Environment

Applicable environment

Operation temperature: 0℃+50℃, relative humidity: 10%90% RH

Storage temperature: -20℃+70℃, relative humidity: 10%90% RH (non-condensing)

Atmospheric pressure: 60106Kpa
