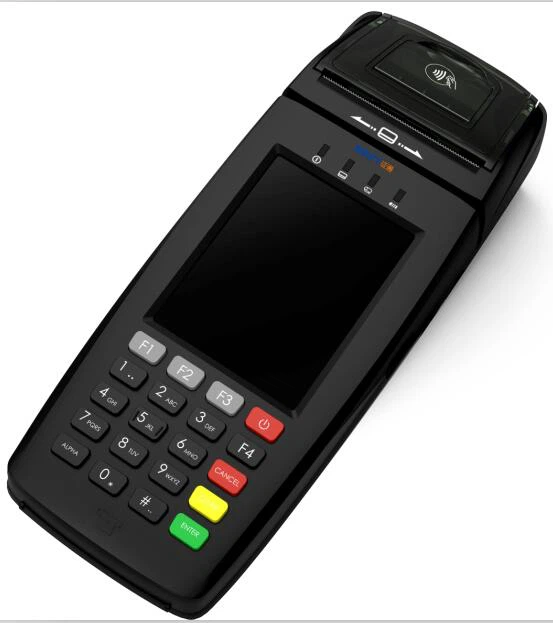

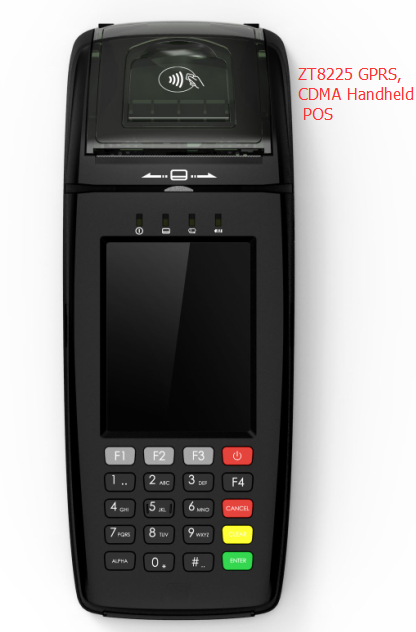

ZT8225
ZT8225 is a smart handheld POS terminal developed by SZZT for various payment applications. With compact design, exquisite appearance and easy operation, this terminal can be applied for bill payment, small amount cash payment, voucher printing, money transfer, sales, insurance and more.
Based on wireless POS and combined with background management system, ZT8225 features wireless communication, real-time data transmission, software upgrade and user-friendly interfaces. And this device can successfully complete the whole process of payment management at all times and places.
Applications:
National chains, Hospitality, Convenience stores, specialty markets, and more.
Functions and Features:
l High security
-Encrypted data transmission for data security
-Set the operation program and fulfill the payment in combined with background
l Flexible deployment
-Wireless GPRS, Modem, networking modules for flexible deployment of terminal devices.
l High scalability
Based on wireless POS and combined with background management system, it features wireless communication, real-time data transmission, contact /contactless/magnetic card reader module, Barcode scanner, 3.5”full color of capacitive touch screen.
Product Parameter：
|
Item |
Specification |
|
CPU |
ARM9 400MHZ |
|
RAM |
DDR2 SDRAM, 512Mb (64MB) |
|
FLASH |
NAND Flash, 1Gb (128MB) |
|
Operating System |
Linux 2.6.30 |
|
Display |
3.5 inch 240 * 320 Pixels / 262,000 Color; with Touch Panel |
|
Key Specification |
Alpha & numeric Keys, Function Keys (Total 20 Hardware Keys) |
|
UART |
RS232, maximum speed 115200bps |
|
USB |
USB HOST 2.0 Full Speed |
|
SD Card Reader |
Mini SD Card Slot x 1 |
|
Printer |
High speed thermal printer, Diameter=30mm, width=58mm |
|
Magnetic Card Reader |
Triple Track (track 1, 2, & 3) |
|
IC Card Reader |
user card x1, EMV/PBOC3.0 ISO 7816 |
|
Sam Card |
SAM Card Slot x 2 |
|
Audio |
Speaker (mono) x 1 |
|
Buzzer |
85 DB |
|
LED |
4 x LED |
|
RTC |
Real-time clock battery: 3V 550mAh, power saving 2 years |
|
Rechargeable battery |
DC 7.4V/1850mAh Li-ion Battery |
|
Physical Specification |
Dimension: 221 (L) x 87(W) x 66 (D) mm |
|
Weight: 550g |
|
|
Operating temperature: 0ºC~50ºC |
|
|
Optional |
|
|
Communication |
MODEM |
|
GPRS |
|
|
Ethernet Interface |
|
|
Barcode Reader |
1D |
|
2D |
|
|
Certifications |
EMV L1/L2 |
|
PCI 3.0 Online/Offline |
|
