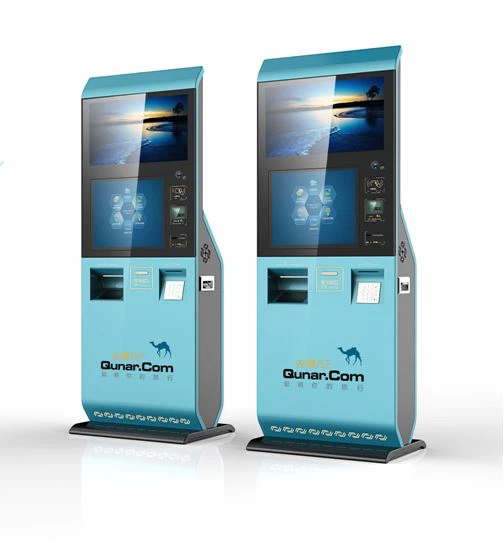

Hotel Self-service Terminal

Host

（SV1-H812）

CPU:i5-4460-Intel

Memory:4GB-DDR3-1600MHz

Hard disk:1TB

Power consumption:300W

Interface:VGAx2,LANx2,RS232x12，USBx10,SATAx2

Operation System: Windows

Displayer

19 "capacitive operation integrated screen

Display interface: VGA+DVI

Touch interface: USB

Length to width ratio: 4:3

Resolution: 1280*1024,

Brightness: 250 CD/m2

Others: flat construction

23.8-inch explosion-proof display screen

Display interface: VGA+DVI

Length to width ratio: 16:9

Resolution: 1920*1080

Brightness: 250 CD/m2

Others: flat construction

Scanner

Communication interface: RS232 / standard USB   interface;

Support media types: support reading paper, LCD, mobile   phone screen and other media on the bar code information;

Reading Angle: 2D barcode 360 degrees in any direction   to read the two-dimensional code;

Width of readable bar <=4MIL;

Read width 5-30cm;

Other requirements: hard scanning code;

Decoding ability: reading one-dimensional barcode,   stack/row 2D barcode and matrix 2D barcode;

Support commonly used PDF417 2D barcode, DataMatrix 2D   barcode,QR Code,GM Code, Hanxin Code and other Code system;

Decoding time less than 2 seconds;

The light slanting down;

With scan successful peak warning function.

Card Dispenser

Communication interface:RS232

Power supply: 24VDC±5%(dynamic peak current 2A, static   current 100mA)

Support card type: support reading and writing   ISO14443, typeA ISO15693 contactless cards

Supports card size: card length 85±0.5mm, card width   54±0.5mm, card thickness 0.7 ~ 1.0mm

Applicable card materials: all kinds of paper cards or   polyester cards

Card box capacity: according to the thickness of 0.76mm   calculation, standard 200 pieces

Alarm: 10 card less alarm, card box full warning 175,   card box full 200

Printer

Type of printer: thermal printer;

Paper roll size: 80mm paper roll,

Paper cutting method: automatic paper cutting;

Feeding: automatic feeding;

Communication interface: RS232/USB;

The moving speed of the print head should not be less   than 150mm/s;

Paper roll diameter not less than 100mm;

Support full cutting with and without black mark, with   black mark detection;

With short paper and lack of paper detection switch and   alarm ability;

Support full graphic printing;

Cutters working life: more than 600,000 times;

Print head life: more than 1.4 billion characters;

Support text, bitmap printing.

ID Reader

Second generation identification

Communication interface: RS232/USB;

Radio frequency technical standards: in line with   ISO/IEC 14443 TYPE B standard;

Card reading time: ≤3 seconds, including the time of card reading and transmission to   the master computer;

Applicable standard:

In line with "GA450-2003 desktop resident ID card   reader general technical requirements", in line with "1GA450-2003   desktop resident ID card reader general technical requirements" No. 1   amendment (draft), in line with "GA467-2004

Technical Specification for the Interface of Security   Control Module of Resident Identity Card Verification, in line with the   standard of GA490-2004 Specification for Machine Readable Information of   Resident Identity Card;

The kernel module certified and approved by the   Ministry of Public Security shall be tested by the Quality Testing Center of   Security and Police Electronic Products of the Ministry of Public Security;

Passport Reader

Communication interface: USB;

Collection area: 127*96 mm

Sensor CMOS 3 megapixels (2048*1536)

The resolution is 400 dpi

EPP

Communication interface: RS232/USB

Format: Standard EPP hardware encryption keyboard,   support Braille prompt;

Material: stainless steel metal;

Number of keys: 16 keys, including 10 numeric keys   (0-9), 6 function keys (decimal point, correct, cancel, confirm, 00, reserve   blank keys);

Button tone: with single tone prompt function, do not   allow double tone prompt to avoid recording crack;

Encryption performance: support 3DES, DES, MAC   encryption algorithm and ANSI X9.8PIN BLOCK format, in line with ANSI X9.24   security standards, support national secret SM2, SM3, SM4, using 3DES   encryption algorithm encryption 2048 bytes operation time is less than 3   seconds;

Key storage mode: hard encryption, application,   hardware level unreadable, encryption module has vibration, disassembly,   decomposition, temperature change and other conditions of self-destruct   device, support remote download.

The password keyboard has dustproof, waterproof,   anti-riot and anti-peeping security measures;

Possess valid China Bank Card Testing Center PBOC3.0   test certification or UnionPay card acceptance terminal product safety   certification or PCI certification;

Motorize Reader

Communication interface: USB;

Type of read-write card: support IC card, magnetic card   issuance;

Magnetic card standard: physical characteristics: IS07810   and 7811, IS07811-2, IOS7811-4, ISO7811-5 and ISO7811-6 standards

Card size: IS07810ID-1-type magnetic card standard;

Embossed characters: IS07811-1 and IS07811-3 standards;

Card size: length: 85.47 ~ 85.90 mm

Width: 53.92 ~ 54.18mm

Thickness: 0.76mm ±0.1mm

Face recognition module

Pixel: HD, support 1280*720;

Imaging distance: 30CM to infinity;

Wide-angle lens: horizontal 60-70 degrees, vertical   40-50 degrees;

The Angle is adjustable.

Intelligent Speech Module

Support volume adjustment function, the minimum support   2.0 channel;

Support specified audio file broadcast.

Power Supply

CMG-H150D24G+12-150W

other

Extensible indicator light, body sensing and other   functions

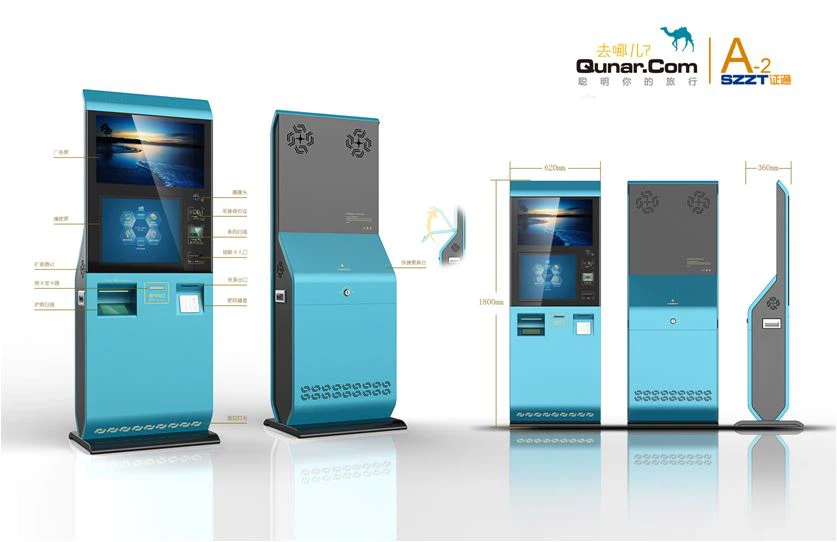

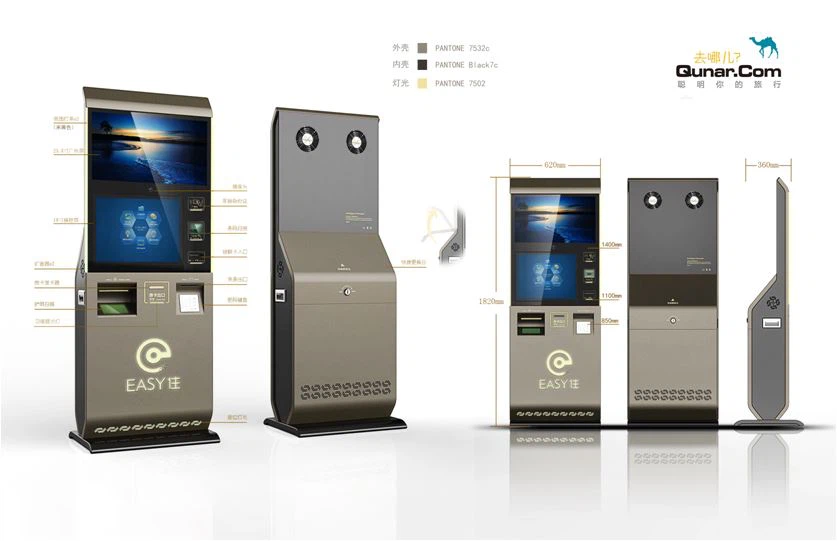

equipment cabinet

The appearance of the cabinet can be customized   according to customer requirements;

The machine is in line with ergonomic design,   reasonable layout, fine technology;

All steel cabinet, wiring standard, reasonable;

Warning marks should be applied for high voltage   internal cables, and the internal cables should be bundled;

Cabinet thickness ≥1.5mm, waterproof, dustproof, rust proof, anti-corrosion, wear   resistance;
