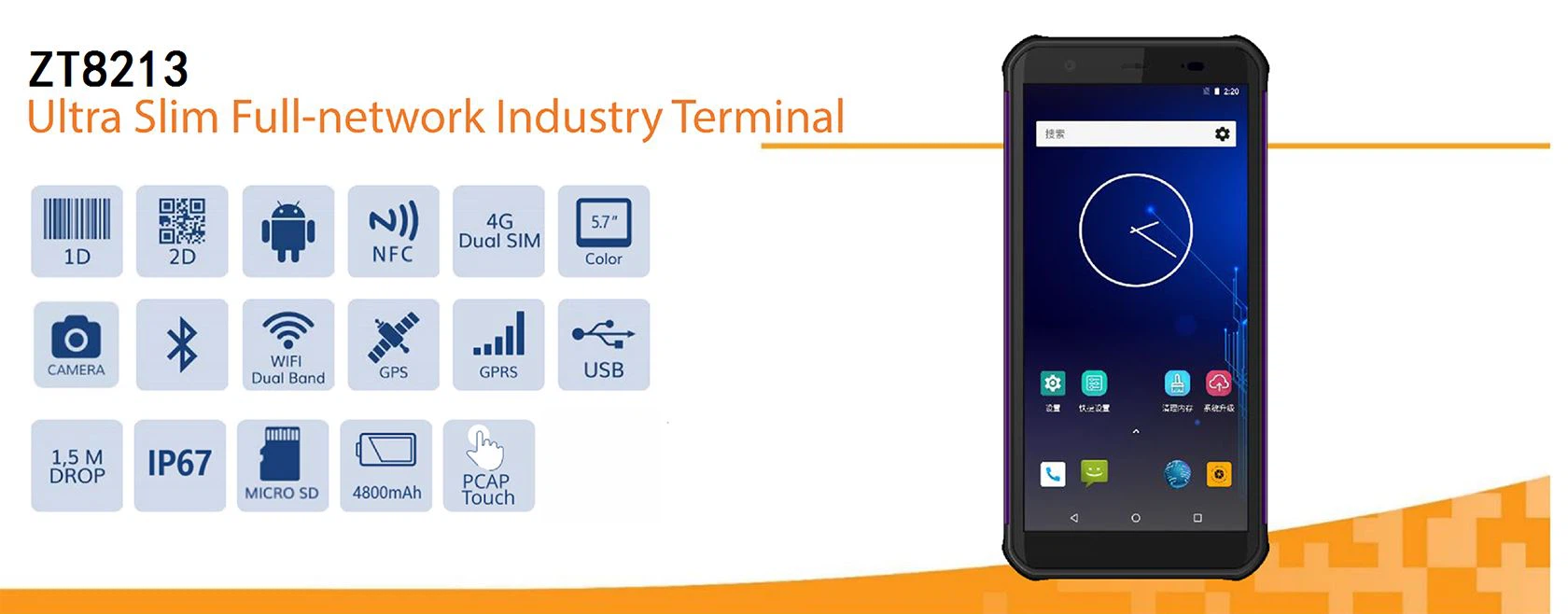

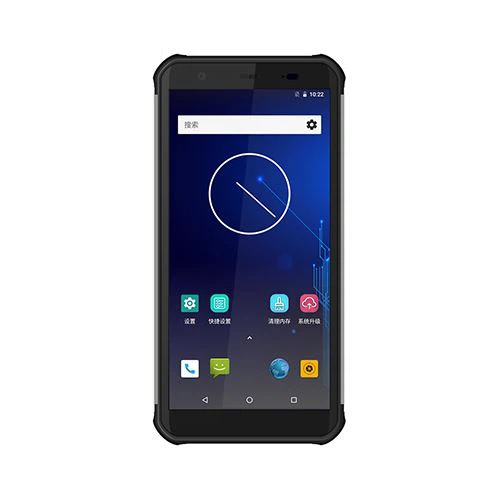

ZT8213

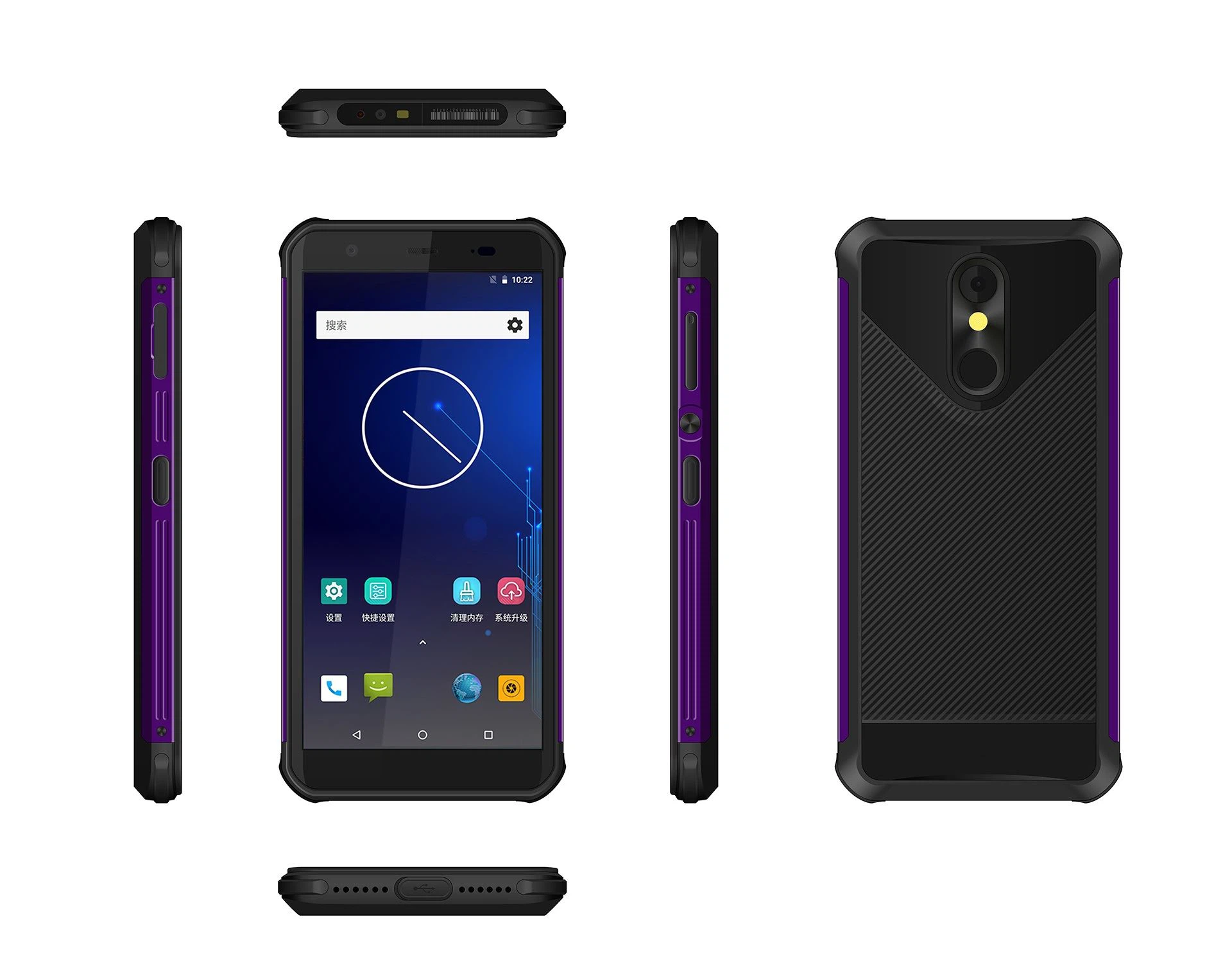

ZT8213 body adopts 5.7 inch (18:9)HD screen, 2.5D Corning third-generation glass cover, IP67 high protection level and 12.6mm ultra-thin body, can be configured with high-speed quad-core/oct-core processor, support fingerprint recognition and fast charging, suitable for express logistics, production and manufacturing, food traceability, supermarket chain, patrol security and other scenarios. * 5.7 "full screen 5.7" HD display, multi-touch capacitive display, 2.5D Corning III glass cover. * Large battery capacity & fast charging 4800mAh battery capacity with low power consumption design, meet the needs of full-time work; Professional type-c port and support fast charging. * Endurance and durability With IP67 protection rating, withstand 1.2m height drop upon six sides. * Ultra slim experience With ergonomic design, comfortable grip. 12.6mm thin, can be operated by one hand, bringing a relaxing user experience. * Powerful data collection performance Configured with professional custom scan engine, supports 1D/2D barcode scanning, fingerprint IDe, Beidou/GPS/GLONASS and NFC * High-end configuration with strong performance Android 7/Android 8.1 operating system, Quad-core 2.0GHz dominant frequency, support double Volte; 4G full net, dual cards dual standby.

Chat Now Send Inquiry

Download

Features Specification Video Contact to Sales

NFT10_Datasheet_EN_V1.40000 -

ZTS-NFT10

Product Specification

Performance	Processor	Quad-core 64-bit processor, 1.5GHz
	Operating System	Android 7 /Android 8.1 (64-bit)
	Memory	RAM: 2GB ROM: 16GB
	Interface	Type C
Physical	Dimensions	157(L)x76.3(W)x12.6(H) mm
	Weight	231g(including side buttons)
	Display	5.7” (resolution 1440x720) Capacitive touch screen
	Keypad	5 buttons (including battery)
	Notification	Vibrator, speaker, three-color LED
	Battery	Built-in battery 4.35V, 4800mAh
	Camera	Rear camera 13 MP, Auto-focus, support flash Front camera 2MP,fix focus
	GPS	High precision GPS+AGPS/Beidou/GCONASS/Galileo
	Expansion	Memory Card (up to 128 GB)
	AC Adapter	Output: DC 5V/9V 1.67A Input: AC 100~240V
Environmental	Operating Temperature	-20℃~+50℃
	Storage Temperature	-30℃~+60℃
	Humidity	5%~95%
	Static Discharge	±12 kV(Air discharge),±8 kV(Direct discharge)
	Drop	1.2m (six sides, one drop each side)
	Sealing	IP67
Data collection	1D	Code128, UCC/EAN-128, AIM 128, EAN-8, JAN-8, EAN-13，ISBN/ISSN, UPC-E, UPC-A, Interleave 2/5, ITF-6, ITF-14, Deutsche 14,Deutsche 12,COOP 25,Matrix 2/5, Industrial 2/5, Standard 25, Code 39, Codabar/NW7, Code 93, Code 11, Plessey, MSI/Plessey, GS1 Databar
	2D	PDF-417, QR Code, Data Matrix
	13.56MHz RFID	ISO14443A/B ISO15693,ISO18000-3,Mifare,FeliCa RF, kovio, NFC Forum,Type1-4 Tag
Wireless	WLAN RADIO	802.11 a/b/n/ac 2.4GHz and 5GHz,
	WWAN RADIO	2G: GSM/GPRS/EDGE(850/900/1800/1900MHz) 3G: WCDMA(Band 1/2/4/5/8) CDMA1X/EVDO(Bank BC0,BC1) 4G: LTE FDD(BANND 1/2/3/4/7/12/13) LTE TDD(B41)
	WPAN RADIO	Bluetooth 4.2
Card slot	SIM card	Dual Card Dual Standby (Dual Nano SIM), 2 out of 3 SIM/T Card slot, Nano+Nano/Nano+ TF
Fingerprint ID		Support(standard)
Sensor		Distance sensor, light sensor, Geomagnetism sensor, Acceleration sensor
Radio reception		Earphone(optional)
Accessories		AC Adapter, Cable, Charging Cradle, 4-slot charging cradle.
