KS8223S

KS8223S

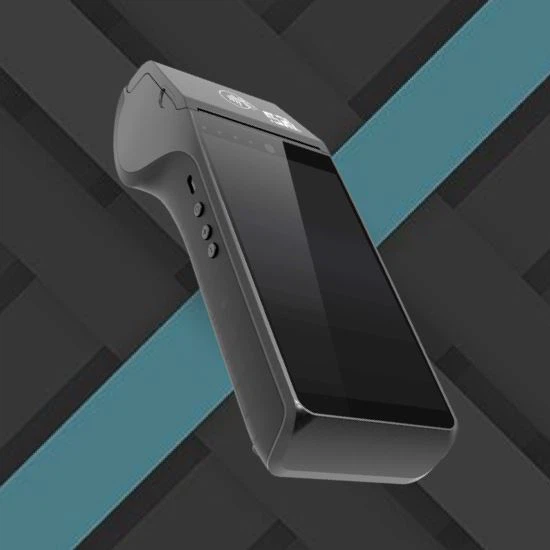

Product overview: ● KS8223S is a smart POS terminal developed on the platform which is fully self innovative by SZZT. ● KS8223S has a built-in password keyboard and integrated high-performance barcode reading engine, which can meet the barcode scanning business of various industries. Main application areas: Mainly for the banking and third-party payment market, for retail, hotel, catering, entertainment, clothing and other industries.

KS8223S

1

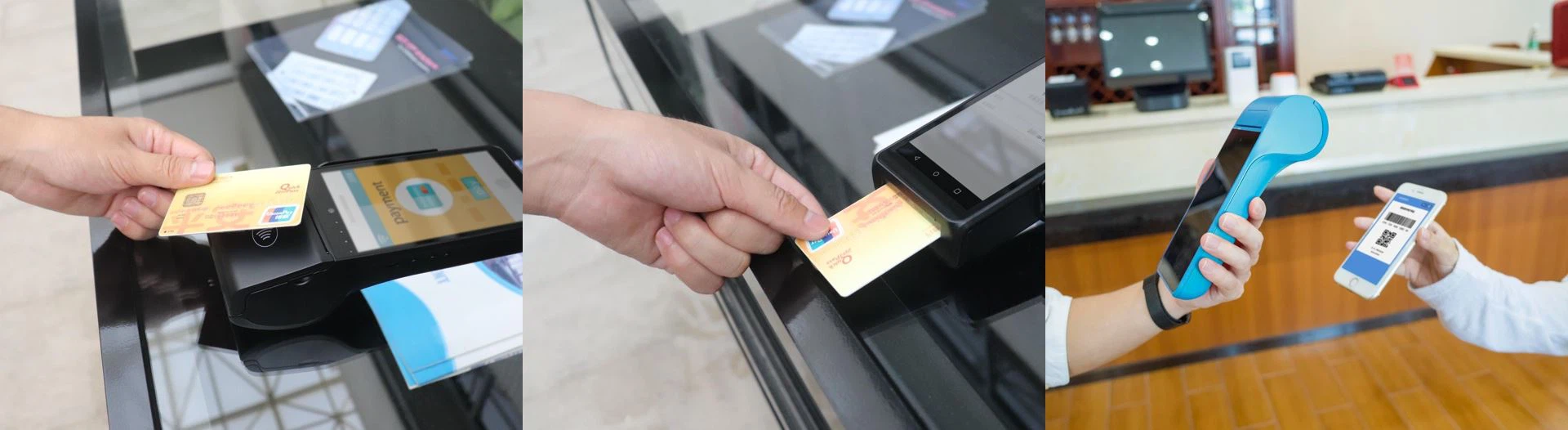

Multi-Payment Methods PSAM card reader, Support common 1D/2D bar code scanning


2.2

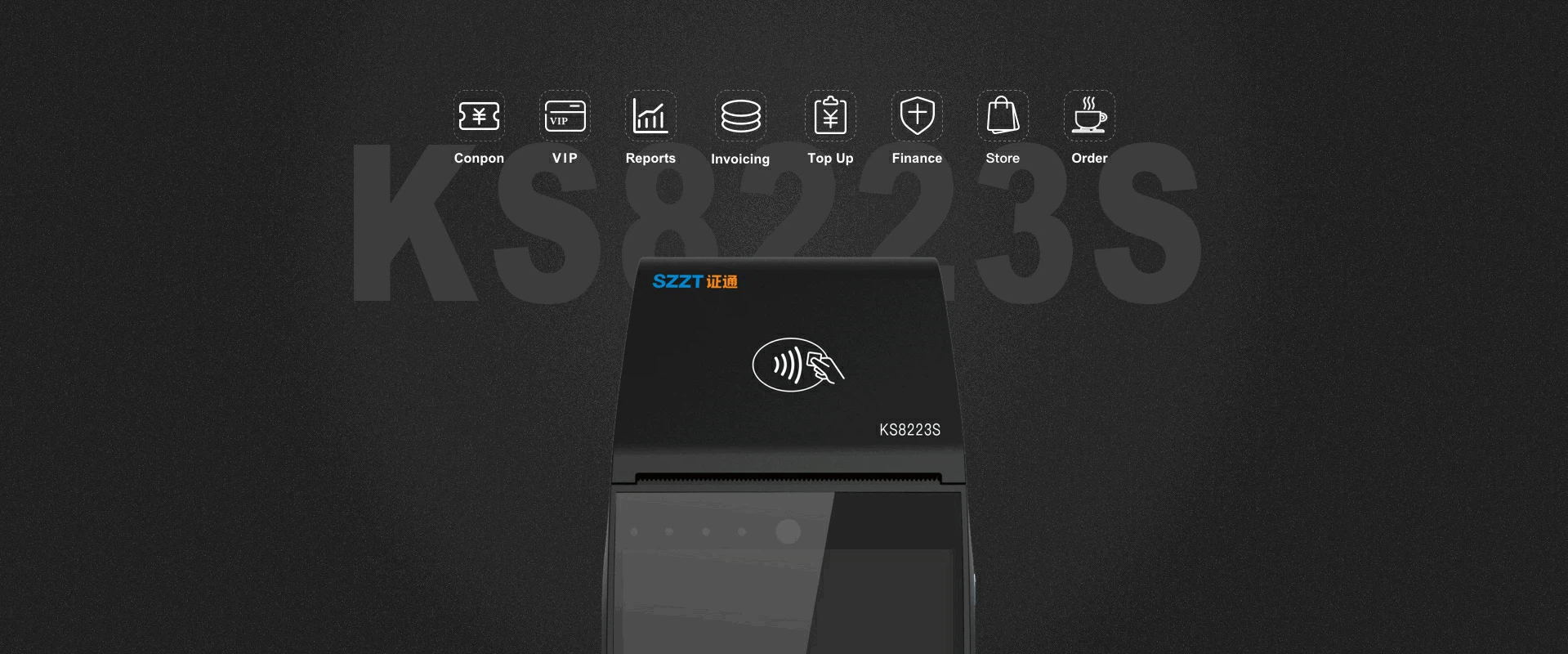

Multi-Smart Applications

3.2


Stable Communication


5.2


Large Battery

Countinuosly Work for 12 hours

600 orders can be traded continuously under full power

Super long standby for 21 days

4

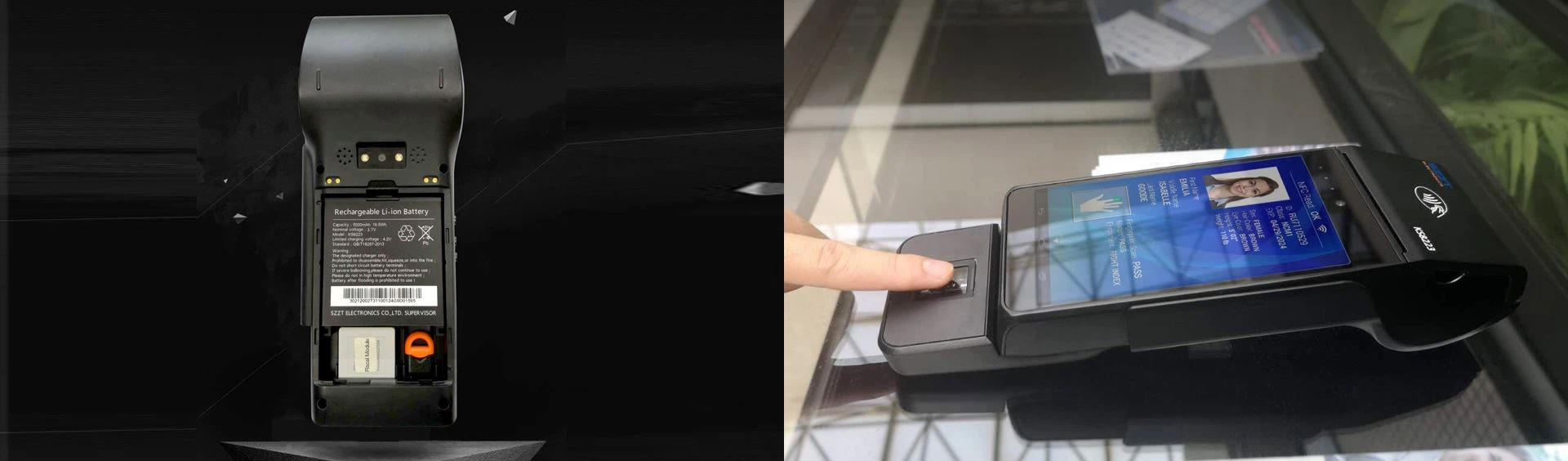

Customized Functional Design Customize product functions for KS8223s, including adding fingerprint recognition function,support touch operation,support electronic signature, etc.
6.1
Application KS8223s has been applied for retail shop, supermarket, cash register, account authentication, top-up, lottery, voting validator, transport validator, etc. 应用场景
Product Specifications

Module

Specifications

Core

Processor

32-bit quad-core high-speed processor

32-bit high performance security processor

Memory

1 GB RAM + 8 GB ROM

Support Micro SD extended storage, maximum support 32G

Cryptographic Module

Hardware encryption module providing general algorithm RSA/DES

OS

SZZT Custom Security System, based on Android 5.1.1

Communication

Mobile module

Supports one standard SIM card slot, automatically recognizes 1.8V and 3.0V specifications cards

Support full Netcom (GSM, WCMDA, EVDO, TD-SCDMA, TD-LTE, FDD-LTE)

WIFI

802.11 b/g/n, 2.4 GHz, with AP mode

Bluetooth

Bluetooth 4.1, BLE

GPS

Built-in GPS, support LBS function

Output

Display

5.5 inch 720×1280 TFT LCD with backlight control

Printer

Built-in high-speed thermal paper printer, easy paper loading structure

No fault printing length is not less than 50,000 meters

Print speed up to 16 lines/sec

Paper roll with a width of 57.5±0.5mm and an outer diameter of 40mm

Led

Support four colors (blue, yellow, green, red) indicator

Comply with UnionPay contactless reader specifications

Buzzer

Single tone single frequency, the volume is not less than 75 decibels

Comply with UnionPay contactless reader specifications

Speaker

Built-in speaker, power 0.5W, sound pressure 82dB±3dB

Support audio playback

Input

Keyboard

Built-in virtual password keyboard

Physical buttons: power button, volume +, volume-

Touch Screen

Multi-touch capacitive touch screen

Support touch operation, support electronic signature

Camera

Rear camera: with flash, auto focus, 5 million pixels

Front camera: no flash, no auto focus, 2 million pixels

Support common one-dimensional code and two-dimensional code scanning

Card reading

Contactless Card Reader

Support ISO14443 Type A/B, Mifare® One card

Comply with EMV4.3 and PBOC3.0 specifications

PSAM card reader

2 PSAM card slots, conforming to ISO 7816 specifications

Interface

MicroUSB

MicroUSB OTG interface, compatible with USB 2.0 HS standard

USB (optional)

1 standard USB interface, can be connected to UKey, tax control disk and other peripherals

I2C (optional)

1 I2C interface, can be connected to tax control panel and other peripherals

Power Supply

Lithium Battery

Lithium polymer battery, 3.7V 5000mAh

Adapter

Input: 100-240V~50/60Hz 250mA

Output: 5.0V ⎓ 2000mA

Other

Exterior Color

Customizable by customers

Size and Weight

219mm*89mm*56mm (length * width * height)

500g(Terminal+Battery)

Applicable Environment

Working temperature: 0℃+50℃ Relative humidity: 30%85% RH

Storage temperature: -20℃+80℃ Relative humidity: 10%90% RH (no condensation)


Product Keywords

Adopting self-innovative design technology platform and perfect  solution,

 it meets the current electronic payment requirements of security, convenience, smart and high -expansion features;

standard SDK can be provided for development of custom APP, with high industry  scalability, help achieve the smart trading scenarios.



High Security

Professional hardware encryption module

Perfect hardware attack detection mechanism, teardown self-destruction



High Performance

Built-in scanner

Low power consumption and quickly charge

Self-optimized management of memory
