ZT8211

ZT8211

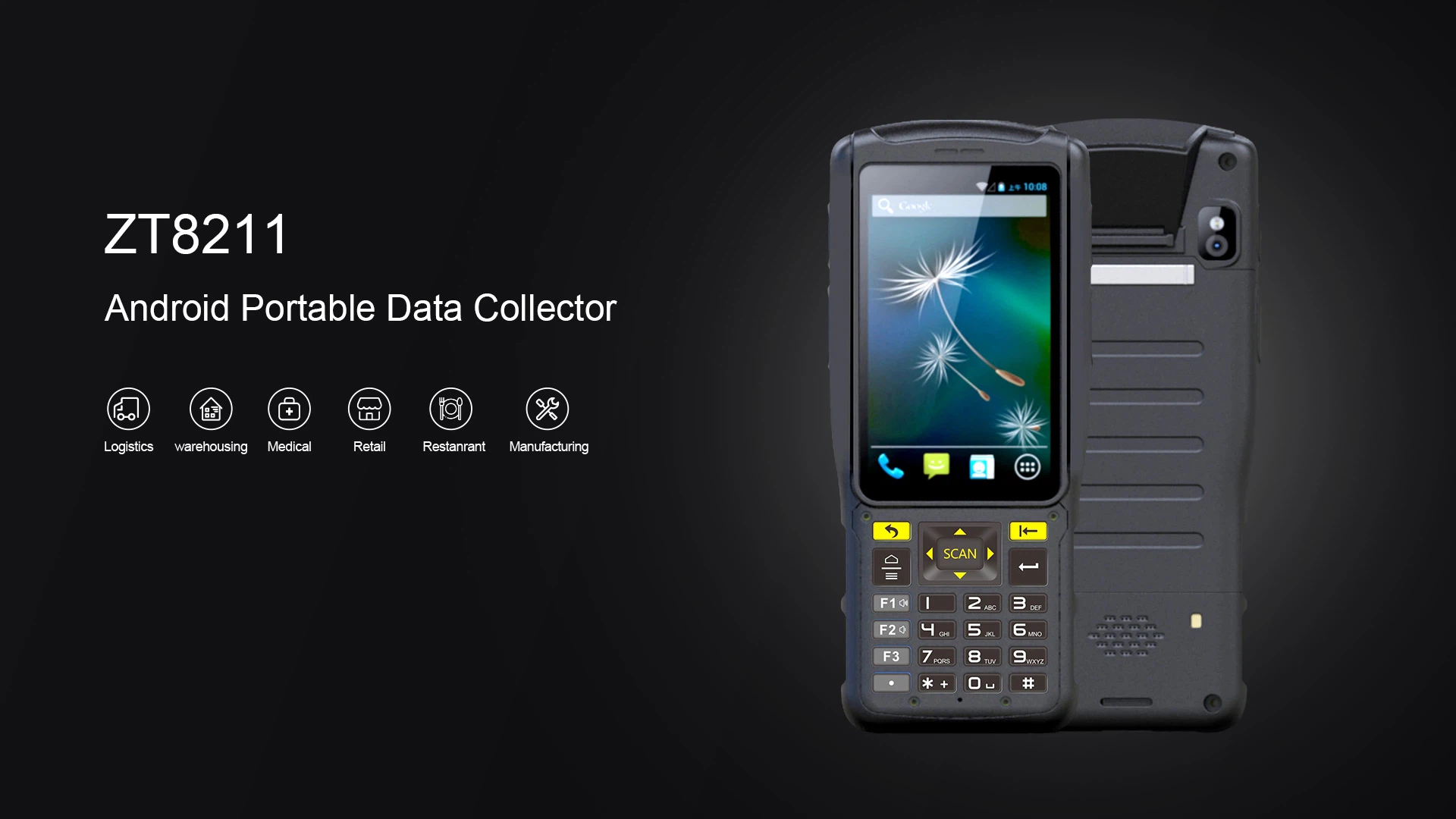

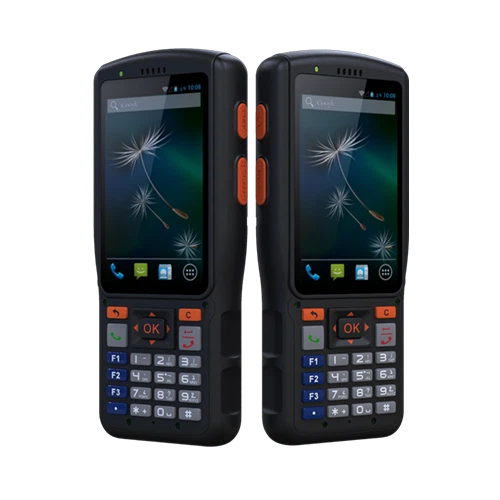

ZT8211 is a new generation of Android intelligent terminal with high comprehensive performance and wide application fields. It adopts the design of gold curve and anti-slide corrugated line, and integrates data acquisition, wireless communication, camera, GPS and other functions into one, which can meet the needs of various industries and scenarios. * Powered by a Newland scanning module The ZT8211 is armed with a high performance ID/2D (megapixel) scanning module, ideal for day in and day out heavy scanning. * First time ever time barcode scanning The ZT8211 has a 25 degree scan angle, making scanning easy and comfortable while reading the screen. * Built to withstand heavy use A durable design, reinforced by carefully selected materials, guarantees low maintenance costs even for use harsh condition. * High quality PCAP Touch The ZT8211 supports both dry and moist hands, as well as gloved fingertip touch input. Ideal for use in severe conditions, such as rain snow and dust.

8211

(8211-8212)

_20210915115410

8211

8211

Product Specification


Performance

Processor

Quad-core 2.0GHz CPU

Operating System

Android 9.0

Memory

RAM: 2GB

ROM: 16GB

Camera

8 Megapixel

Interface

Type-C USB

Physical

Dimensions

169(L)x72(W)x23.8(H) mm

Weight

290g

Screen

3.5 inch FWVGA, 854*480 Pixel

Touch

Multi-point PCAP (Projective Capacitive   Touch)

Keypad

Front :Number keys, Five-navigation key,   Back key, Enter key, Scan key, Home/Menu key, Self-definition(F1,F2,F3)keys Sides:   Power key, Left-scan-key, Right-scan key, Function key.

Batter Capacity

4000mAh

Expected Battery Life Talking

20 Hours

Expected Battery Life Standby

500 Hours

Expansion

T-FLASH: Micro SD/TF (up to 32 GB)

SIM: SIM card

Input

English, pinyin, handwriting, soft-keyboard.

Environmental

Operating Temperature

-20~+55

Storage Temperature

-30~+70

Humidity

5%~95%

Static Discharge

±12 kV(Air discharge),±8 kV(Direct   discharge)

Drop

1.5m

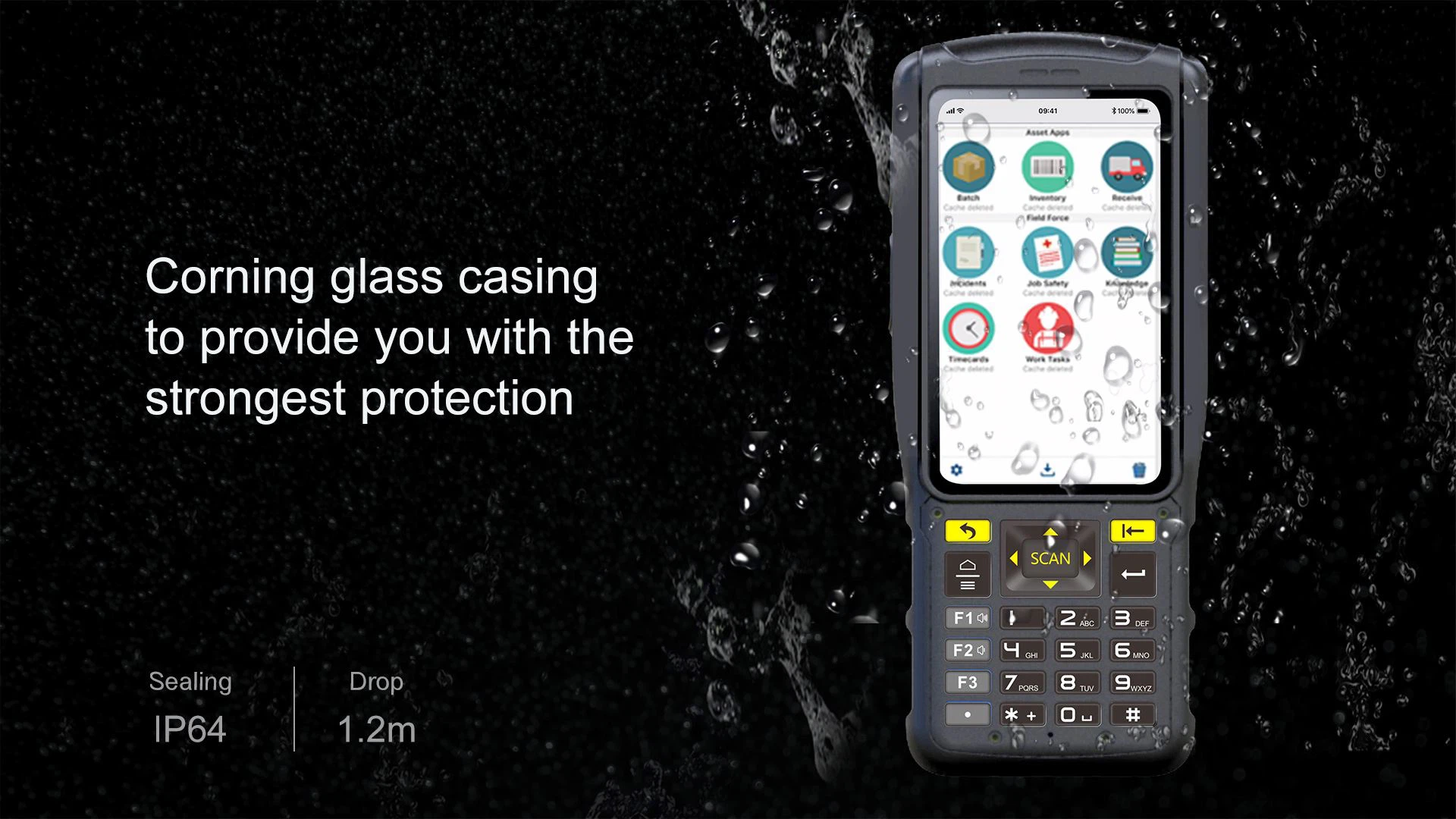

Sealing

IP64

Barcode

1D Barcode

Code 39Codabar Code 128Discrete 2 of 5UPCEANMSI etc.

Scanning

2D Barcode (optional )

QRPDF417DataMatrixMaxiCode etc.

Depth   of field

Depends on barcode type and environment

Code39(20mil) 90mm-580mm

EAN13(13mil) 45mm-380mm

Code39(5mil) 75mm-180mm

DM(10mil) 50mm-180mm

PDF417(6.7mil) 70mm-170mm

QR(15mil) 40mm-220mm

Wireless

WI-FI

802.11 b/g/n/ac

WCDMA/GSM

GSM: 900/1800 MHz

WCDMA: 2100 MHz

Bluetooth

BT5.0,v3.0+HS/V4.2 LE

GPS

GPS/APS/GCONASS/GALILEO

Certifications


CTA, SRRC, CCC, CE, RoHS

Laser   Safety


IEC 62471/IEC60825

Accessories


Adapter, Cable, handstrap, Charging   Cradle, 4-slot battery charger.
