Introduction

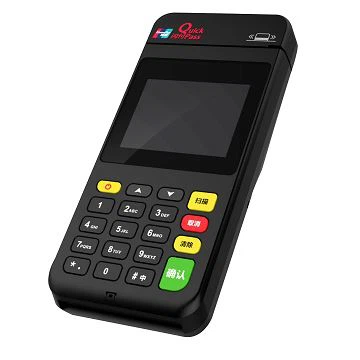

As the new generation MIS POS terminal, KS8310 adopts multiple security mechanism and contactless payment. The exquisite display screen(about 2.4 inch) provides abundant information with high recognition degree. It can be connected to desktop by Bluetooth or wired equipment, fast and credible. This product is worth your favor in payment.
Features:
• High digit matrix resistive touch screen
• Large-capacity memory, support day-to-day backup
• Support PCI encrypted PIN Pad
• Built-in contactless module, support quick non-contact transactions
• Support electronic and handwriting signature
• Support 1D code scanning
Parameters:
|
Item |
Specifications |
|
Processor |
32-bit high performance secure CPU |
|
RAM |
128KB RAM |
|
FLASH |
72MBit FLSH |
|
Operating System |
SZZT operating system KOS |
|
Display |
3.4 inch, resolution 240 * 320 TFT LCD |
|
Integrated resistance touch screen |
|
|
Keyboard |
Alpha & numeric keys, function keys (total 19 hardware keys) |
|
Serial port |
TFL serial port |
|
USB |
1 micro USB interface |
|
Handwriting signature |
Support sign pen (optional) |
|
Magnetic MIS-POS |
Support bi-directional card reading of magnetic track (track 1, 2, & 3), meet ISO 7811 standard |
|
IC card MIS-POS |
1 contact IC card slot, meet EMV/PBOC 3.0 standard |
|
Contactless IC card reader |
Support ISO/ICE 14443A/B standard, QPBOC approved |
|
1 SAM card slot |
|
|
Buzzer |
75 DB |
|
LED light |
4 x LEDs |
|
RTC |
Real-time clock battery: 3V 220mAh, power saving 3 years |
|
Rechargeable battery |
DC 3.7V/1500mAh Li-ion Battery |
|
Power input |
5V/500mA |
|
Physical Specification |
Dimension: 158 (L) x 70(W) x29(D) mm，300g |
|
Weight: 300g (battery included) |
|
|
Operating temperature: 0ºC~50ºC, storage temperature: -20-65 ºC |
