ZT661 Barcode scanning module Introduction ZT661 series barcode-scanning module allows to quickly scan almost all kinds of barcodes (including 1D/2D and direct part marking) for bulk scanning. No matter what kinds of barcode, ZT661 series products can scan them quickly and accurately, whether...

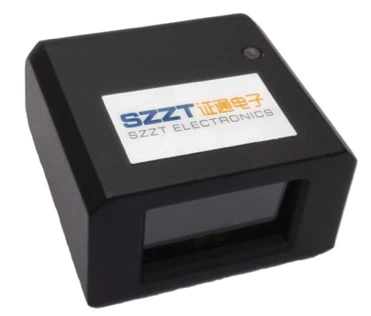

ZT661 Barcode scanning module



Introduction

ZT661 series barcode-scanning module allows to quickly scan almost all kinds of barcodes (including 1D/2D and direct part marking) for bulk scanning. No matter what kinds of barcode, ZT661 series products can scan them quickly and accurately, whether the bar code is printed on paper, engraved on product, or even displayed on mobile phone screen. ZT661 series features compact size and can be conveniently used in any environments.



Applications

Banking self-service terminals, medical examination terminals, inspection report printing terminals, cinema self-service ticket terminals, self-access item terminals, medical information query terminals, self-service vending machines, parking lot management terminals, tax bill inquiry terminal and library self-lending terminals.



Specifications

l   Full capture of data

1D/2D, DPM and PDF417 barcodes, offering a wide range of products to meet any fixed free scan requirements.

l   Easy to integrate

ZT661 barcode reader module has compact structure and size which is easy to integrate into a variety of solutions.

l   Installing Accessories

ZT661 can be easily installed where needed - a variety of self-service terminals and various scenes.

l   High Performance

High-performance decoder with ability of fast decoding and high precision reading contained. Mainstream 1D/2D barcode on the market are able to read easily.

l   Low Consumption

Compared with traditional products, only one-third of consumption of ZT661.

l   Unique Aiming Mode

Even though in bright sunlight, the bright center spot ensures fast and accurate scanning.

l   Scanning Trigger

With integrated scanning triggers, scan-free scanning or on-demand scanning can be achieved in projection mode.

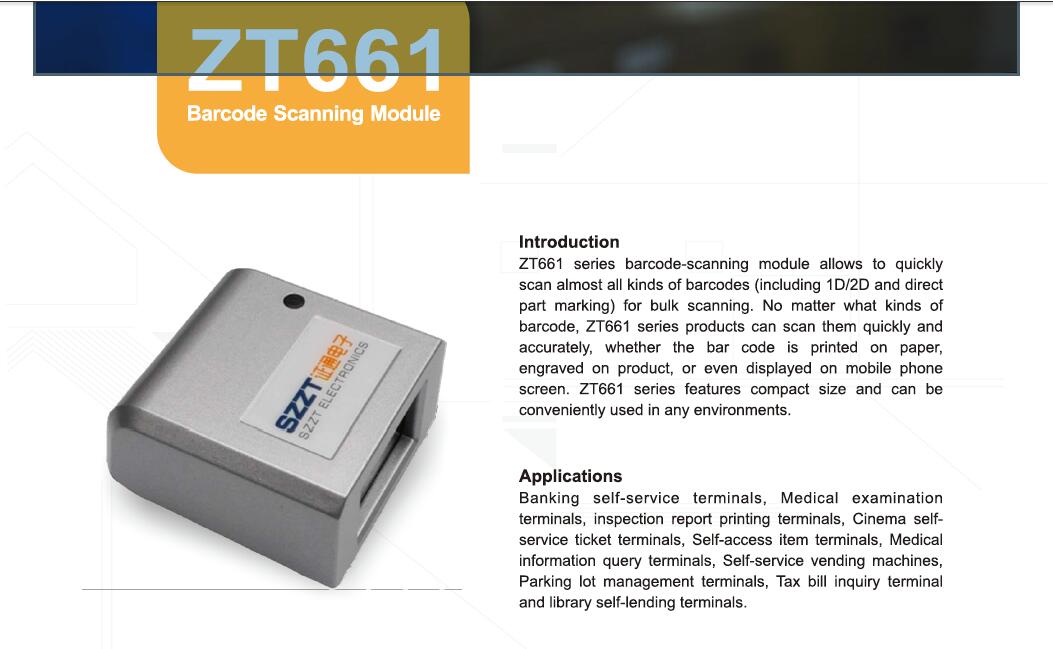

 ZT 661 Barcode scanning Module.jpg




Scanning Performance

Image Sensor

752×480 CMOS

Illumination

Red Light LED 625±10 mm







Code Reading System

2DPDF417, Data   Matrix (ECC200,ECC000,050,080,100,140), QR Code and more

1DCode128,   EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6,   ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,   Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey (and more)

Reading   Accuracy

5mil







Read depth of   field

Code 3935mm -205mm   (10mil)

EAN-1350mm -260mm   (13mil)

PDF41750mm -215mm   (10mil); 60mm~285mm (15mil)

Data Matrix50mm -160mm   (10mil); 50mm~225mm (15mil)

QR55mm -140mm   (10mil); 50mm~210mm (15mil)

Symbol Contrast

25% Reflection   difference

Reading Angle

Rotate 360 °,   tilt ± 55 °, deflection ± 55 °

Angle of View

Horizontal 36   °, vertical 23 °

Mechanical / electrical parameters

Interface

USBHID-KBWVirtual serial port

Consumption

< 0.9 W

Operating Voltage

5±10% VDC

Electric Current

5 VDC

Working current420 mA

Standby current260 mA

Sleep current1 mA

Physical Dimension

55.4×52×30 mm

Weight

200g

Environmental parameters

Working temperature



-20~ +55

Storage temperature

-40~ +80

Working humidity

5% ~ 95% (Non-condensation)

Ambient light

0 ~ 100000 luxNatural Light
