ZT8212

ZT8212

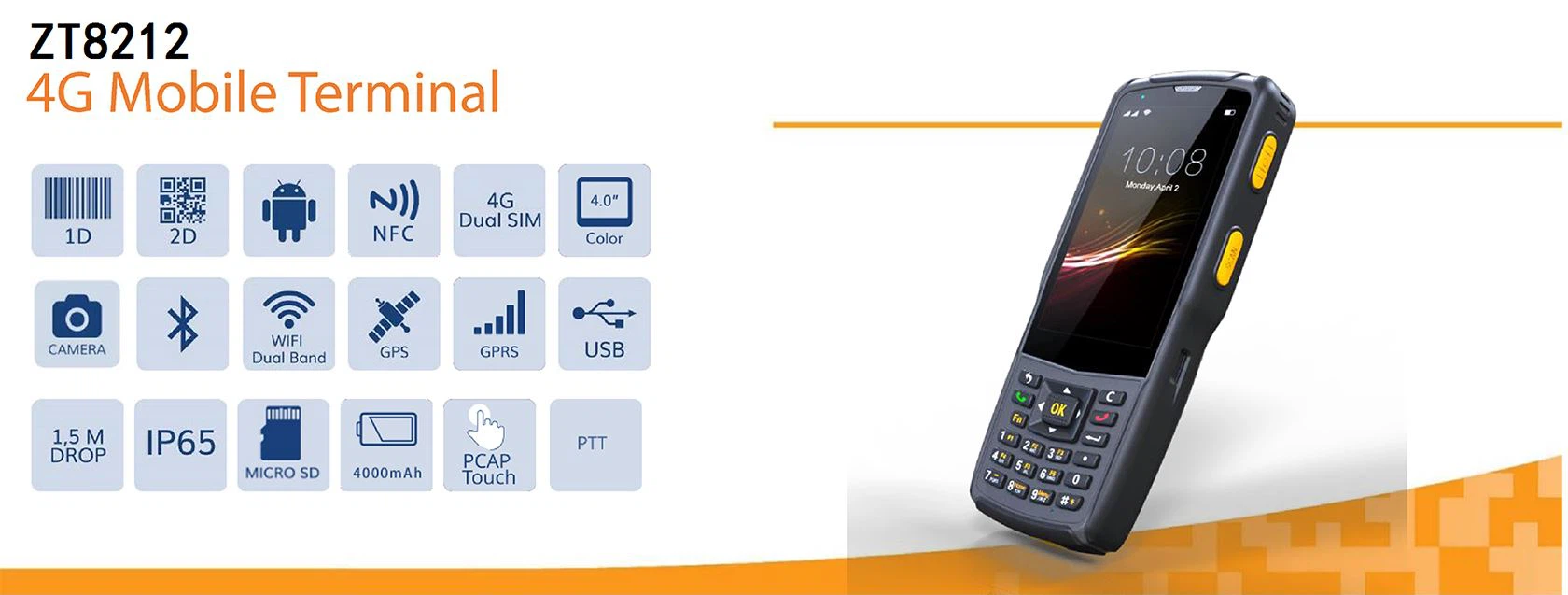

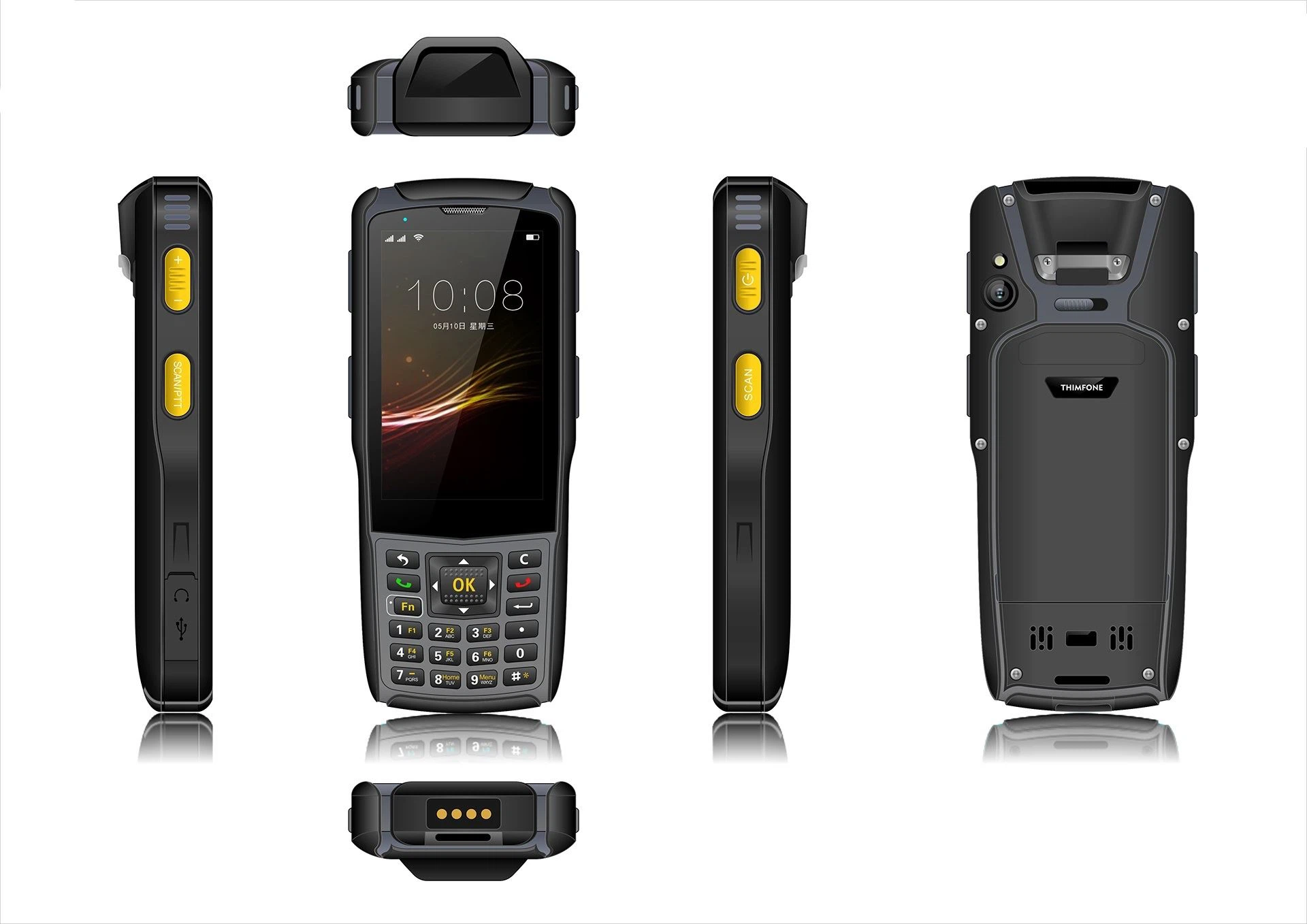

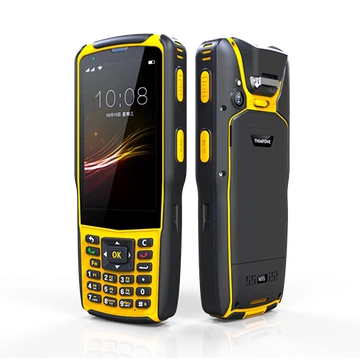

ZT8212 is a new industry terminal based on 4G network and Android system launched by SZZT. Adopt six-sided multi-dimensional adhesive design, perfect integration of aesthetics and three-defense; 4.0-inch mainstream HD display, with a number of professional 1D/2D scanning engines. * Advanced capacitive touch screen The 4.0” HD multi-touch capacitive touch screen dynamically adjusts to the current environment, enabling it to work with or without gloves, wet or dry, and with your fingertip or a stylus. * Extraordinary three-proof design Constructed in the robust ip65-rated and 1.5m drop-resistant housing, the mobile terminal promises years of trouble-free operation. * Long-lasting battery life 4000mAh removable battery combined with the attest dynamic power management technology promises a full day of continuous use. * Customized Android OS New administration mode is added to the native Android system, providing powerful secondary development capabilities. * Enhanced data collection performance With the ZT8212 in hand, workers can capture practically any type of data from barcode to photos, video and NFC, helping to improve business efficiency and throughput.

N5S_Datasheet_EN_V6.0-0000 -

_20210728152548

Product Specification



Performance

Processor

Quad-core 2.0GHz CPU

Operating System

Android 9.0

Memory

RAM: 2GB

ROM: 16GB

Interface

Micro USB 2.0,charging interface,3.5mm   Audio jack

Physical

Dimensions

172(L)x72(W)x24.8(H) mm

Weight

330g(including battery)

Display

4” WVGA(800x480) Pixel Capacitive touch screen

Keypad

28 keys (side keys included)

Audio

Microphone/speaker

T-FLASH

Micro SD/TF (max 128 GB)

GPS

High precision GPS+AGPS/Beidou/GCONASS/Galileo

Expected Battery Life

500 Hours

Scanning:11 hours of continuous operation   (scan once per 6 seconds)

Batter Capacity

4000mAh

Expected Charge Time

4 Hours

Adapter

Input: 5V,2A

Environmental

Operating Temperature

-20~+55

Storage Temperature

-30~+70

Humidity

5%~95%

Static Discharge

±12 kV(Air discharge),±8 kV(Direct   discharge)

Drop

1.5m

Sealing

IP65

Data   collection



1D Barcode

Code 39,Codabar, Code 128,Discrete 2 of 5,UPC,EAN,MSI   etc.

2D Barcode (optional )

QR,PDF417,DataMatrix,MaxiCode   etc.

13.56MHz RFID

ISO14443A/B   ISO15693,ISO18000-3,Mifare,FeliCa RF, kovio, NFC Forum,Type1-4 Tag

Wireless



WWAN RADIO

2G:    GSM (Band 2/3/5/8)

3G:    WCDMA(Band 1/2/5/8)

CDMA1X,EVDO(Bank BC0)

TD-SCDMA (Band 34/39)

4G:    LTE FDD(BANND 1/3/5/7/8/20)

LTE TDD(BAND 38/39/40/42)

WLAN RADIO

802.11 a/b/n/ac 2.4GHz and 5GHz,

support 802.11 d/h/i/k/r/v/w

WPAN RADIO

BT5.0,v3.0+HS/V4.2 LE

Certifications


CTA, SRRC, CCC, CE, RoHS

Laser   Safety


IEC2/FDAII, IEC60825-/EN60825-1

Accessories


Adapter, Cable, hand strap, Charging   Cradle, 4-slot battery charger.


Hot Tags: ZT8212 , China, suppliers, manufacturers, customized, quotation, 4g mobile terminal, android pda, android data collector, android industrial terminal, android Portable terminal, Android mini pos.
