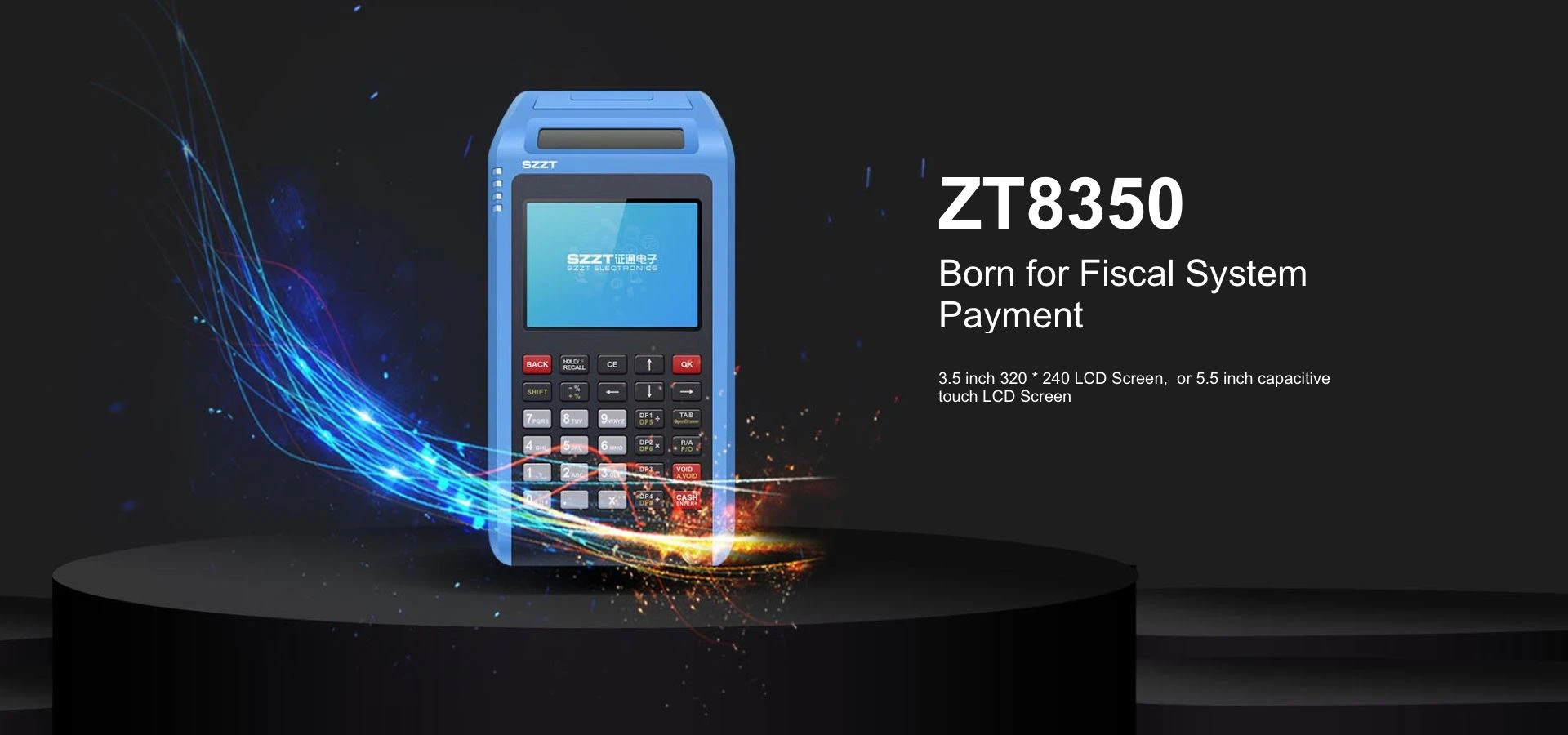

ZT8350
Various peripheral interfaces, Applicable in more scenarios.
Rich interface, support cash drawer, external equipment, serial port etc.
Module |
Specifications |
|
Core |
Processor |
32 bit quad core ARM processor,1.1GHZ |
Memory |
1GB RAM + 8GB FLASH |
|
E-Journal |
8GB (optional, refer to detail fiscal solution) |
|
Fiscal Memory |
128MB(optional, refer to detail fiscal solution) |
|
OS |
Android 5.1 |
|
Communication |
Mobile Network |
1x SIM slot,for 1.8V and 3.0V standard card Support 2G/3G/4G |
Ethernet |
1 x Lan port, 10/100M |
|
Output |
Operator Screen |

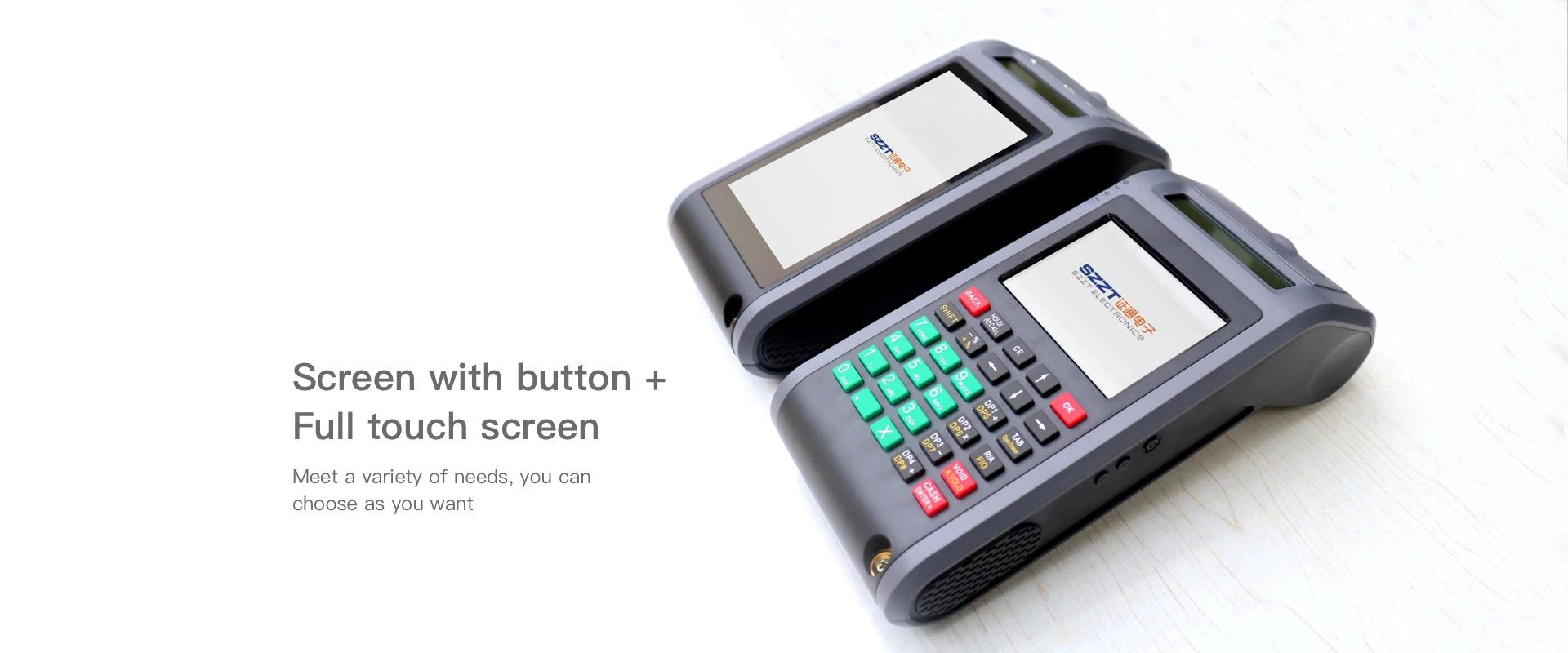

3.5” LCD, 320x240; or 5.5” capacitive touch LCD |
Client Screen |
132x32 dots |
|
Receipt Printer |
High speed thermal printer, Width:57.5±0.5mm Printer speed:150mm/s |
|
Real Time Clock |
Yes |
|
Input |
Buttons |
30 Physical keys / (virtual keypad if 5.5” capacitive touch screen) |
Positioning |
GPS(optional) |
|
Wifi |
IEEE 802.11 b/g/n(optional) |
|
Bluetooth |
Bluetooth 4.0(optional) |
|
Card Reader |
1x SIM, 1 x SAM; or 2 x SIM |
|

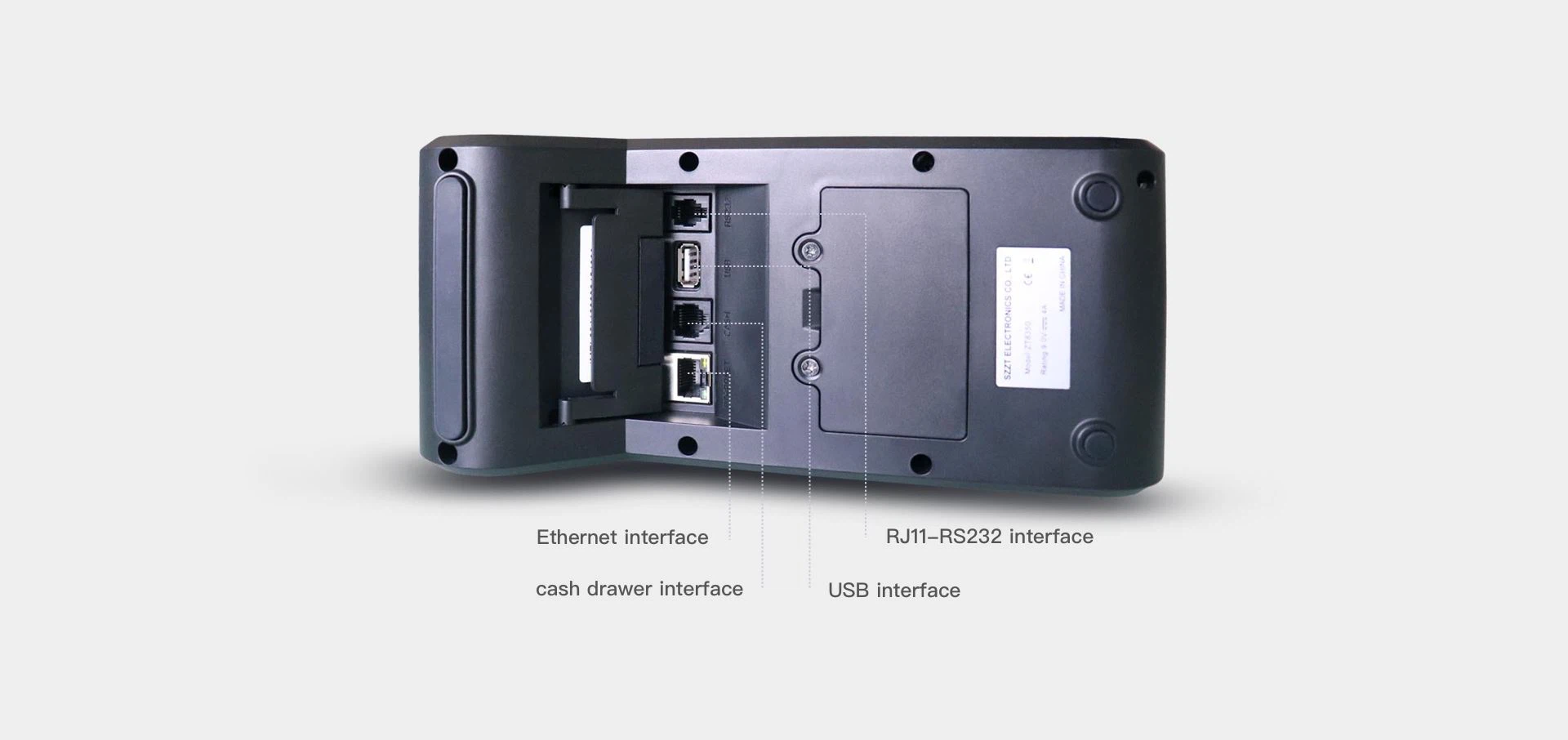

Interface |
USB |
1x USB Host |
RS232 |
1x Standard RS232 |
|
Cash Drawer Port |
1 x Cash drawer port |
|
Power Supply |
Power Adaptor |
Input: AC 100-240V +/- 20V,~50/60Hz Output: 9.0V ⎓ 4A |
Battery |
Lithium polymer battery 18.5Wh |
|
Applicable Environment |
Customizable by customers |
|
Working temperature: 0°C to +50°C Relative humidity: 35% ~ 90% RH (non-condensing) Storage temperature: -25°C to +60°C Relative humidity: 90% ~ 90% RH (non-condensing) |
High Security
Professional hardware encryption module
Complete security certification
Perfect hardware attack detection mechanism, teardown self-destruction
High Performance
High speed thermal printer.
Low power consumption and quickly charge
Self-optimized management of memory
