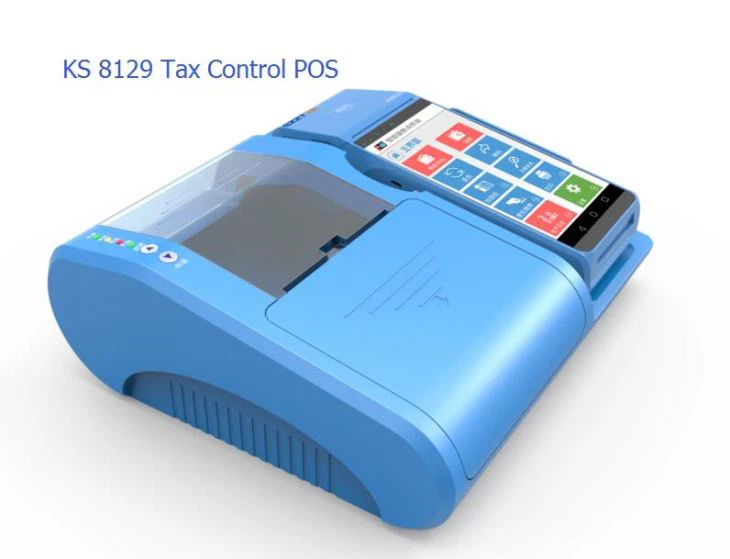

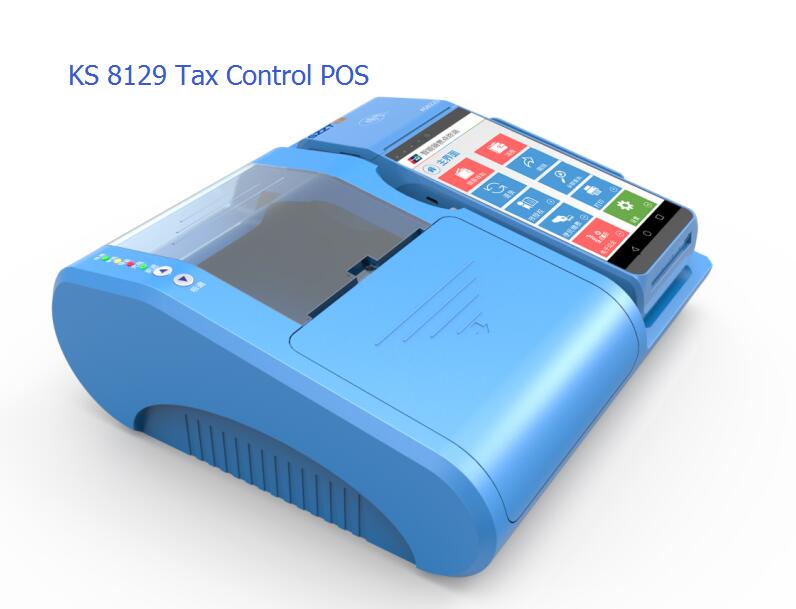

KS 8129
Introduction
KS8129 is a tax smart POS terminal which integrates with POS payment and VAT invoice printing. It supports standard POS trade system, Internet payment (Alipay, Wechat Pay, etc.), tax and bonded printing functions as one of the tax control printing systems.
Applications

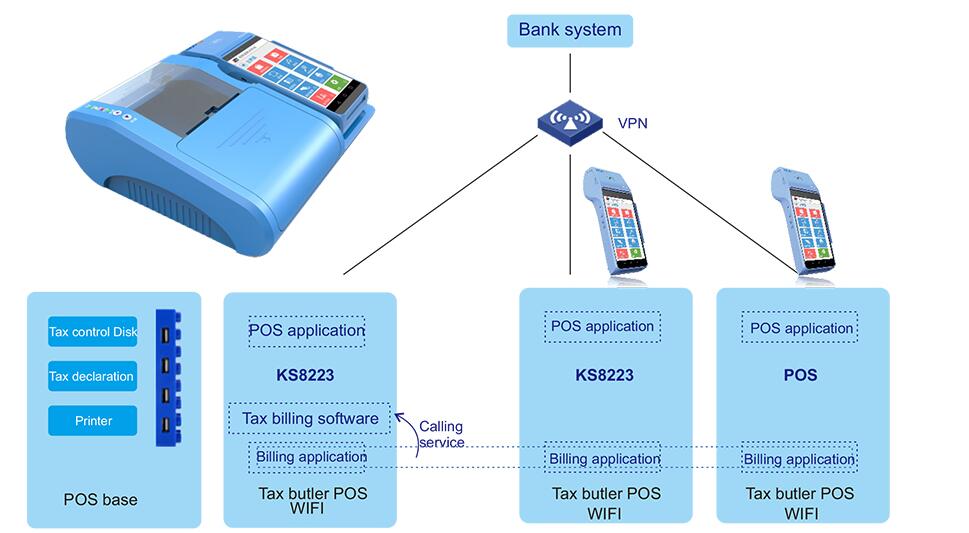

The POS base and POS terminal is placed on the cashier or information desk. Merchants can achieve mobile cashier by POS terminal. And put back to the base to print invoices.
The invoice manager operates the “Tax invoice billing software” on the POS host. The general cashier can perform POS cash register at the consumer's location and collects the customer's billing information (keyboard input, handwriting input, scanning billing information two-dimensional bar code and other more), to complete the billing operation. Consumers can go to the front desk to take the invoice.
Features
•Fashionable appearance with humanized design
•Convenient and easy to use
•Mainly used in the hotel industry, catering industry, construction industry, real estate, finance, life services and other fields to support the magnetic card, IC card, contactless IC card.
•Easy to develop third-party application
•Abundant network features
•Security system
Product Parameter
Processor |
ARM Cortex-A7, 1.1GHz, 4 Core processor and 32-bits high performance secure processor |
Storage |
1GB RAM + 8GB FLASH |
Support Micro SD, maximum support 32G |
|
Encrypted Module |
Support DES & 3DES, 2048 bit RSA. |
Fixed, M/S, DUKPT key management system. |
|
Mobile Module |
Support 1 standard SIM card slot, automatic identification 1.8V and 3.0V card |
|
Support All-net-through (GSM, WCMDA, EVDO, TD-SCDMA, TDD-LTE, FDD-LTE) |
|
WIFI |
Conform to IEEE802.11 b / g / n standard Support AP mode |
Bluetooth |
Support Bluetooth 4.1 BLE |
GPS |
Built-in GPS, support LBS function |
Display Screen |
5.5 inch 720 × 1280 TFT LCD with backlight control |
Printer |
Built-in high-speed thermal printer, easy to install paper structure |
|
Support for printing ASCII visual characters and GB18030 standard Chinese characters |
|
|
Support for printing picture (including bar code, 2D bar code) |
|
Print speeds up to 16 lines per second |
|
|
Paper roll with a width of 57.5 ± 0.5mm and an outer diameter of 40mm |
|
Buzzer |
Single frequency, the volume is not less than 75 decibels |
Loudspeaker |
Built-in speaker, power 0.5W, sound pressure 82dB ± 3dB Support for audio playback |
Keyboard |
Built-in virtual password keyboard Physical keys: power button, volume +, volume - |
Touch screen |
Multi - touch capacitive touch screen Support for touch operation |
|
Camera |
Rear: Flash, Auto-Focus, 5million pixels |
|
Front: Non-flash, Non-support Auto-Focus, 2 million pixels, Support common one-dimensional bar code & two-dimensional bar code scanning |
|
Magnetic card reader |
Three-track head, support two-way swiping card Support ISO7811-2, ISO7811-6. |
Contact IC card reader |
1 user card slot |
Support ISO7816 standard contact IC card |
|
Conform to EMV4.3 and PBOC3.0 specification |
|
Contactless IC card reader |
Support ISO14443 Type A/B, Mifare ® One card (optional) |
|
Conform to EMV4.3 and PBOC3.0 specification |
|
PSAM Card Reader |
2 PSAM slots, ISO 7816 standard |
USB |
Provides a Micro USB OTG interface, compatible with USB 2.0 HS standard |
Lithium battery |
Lithium polymer battery, 3.7V 5000mAh |
Adapter |
Input：100-240V～50/60Hz 250mA |
Output：5.0V 2000mA |
|
Appearance color |
Can be customized |
Size and weight |
219mm*89mm*56mm（Length * width * height） |
550g（battery included） |
|
Environment |
Working temperature：0℃～+50℃ |
Relative humidity: 10% ~ 90% RH |
|
Storage temperature: - 20 ℃ ~ + 70 ℃ |
|
|
Relative humidity: 10% ~ 90% RH (condensation) |
|
Atmospheric pressure: 60 ~ 106Kpa |
