KS8210

Handheld wireless POS

KS8210 is a handheld wireless POS terminal with a high performance ARM processor + secure operating system. The terminal integrates a variety of communication methods to meet the communication needs of different industries. With built-in non-contact card reading module, it supports Quick Pass, NFC and other quick payment scenarios. Compact appearance, easy for disassembly & maintenance, large-size TFT touch screen supports for electronic signatures. Built-in high-capacity lithium polymer battery is safe and reliable. The system provides standard interface SDK for easy and efficient development of industrial applications, it is widely applicable to business acquiring in all sectors.

1.Applications
National chains, Hospital, Convenience stores, Shopping mall,
Specialty markets, and more.

2.Features

• Authoritative certification, safe and reliable

Passed UnionPay POS security certification, a variety of built-in protection mechanisms to support anti-cutting machine function

Passed EMV, PBOC, QPBOC certification

Built-in international algorithm (RSA / SHA / DES) and secret algorithm (SM2 / SM3 / SM4)

• Omni-channel payment channels, being future-oriented

Support traditional magnetic, contact and contactless IC card payment

Support WeChat, Alipay and other mobile Internet payments

Support emerging NFC payments such as Apple Pay, Samsung Pay, Huawei Pay, and more

• Multi-application free switching, multi-functional device

Support multiple applications, fast switching between applications, do not miss any business

Free cloud TMS service, no need to change device to meet new needs

3.Specification

Items	Specifications
Basic   configurations
Dimensions   &weight	193MM*90MM*55MM,   280g (Battery included)
Color	Default   blue/black color, can be customized
Processor	High security   ARM9 32-bit CPU, 400HZ
Memory	64MB SDRAM,   128MB FLASH
Operating   system	Embedded Linux
Display	2.8 inch   320*240 TFT LCD with backlight control
Magnetic card   reader	Support   bi-directional card reading of   magnetic track 1,2,3 Support   ISO7811-2, ISO7811-6.
Contact IC   card   reader	1 user card   slot
	Support   ISO7816 standard contact IC card
	Conform to   EMV4.3 and PBOC3.0 specification
Contactless IC     card reader	Support   ISO14443 Type A/B, Mifare ® One card (optional)
	Conform to   EMV4.3 and PBOC3.0 specification
PSAM Card     Reader	2 PSAM slots,   ISO 7816 standard
USB	Provides a   Micro USB OTG interface,  compatible with USB 2.0 HS standard
Printer	Built-in high-speed thermal printer,   easy to install paper structure
	Support for printing ASCII visual   characters and GB18030 standard Chinese characters
	Support for printing picture   (including bar code, 2D bar code)
	Print speeds up to 16 lines per second
Physical   interface	1 RS232, 1   power interface
PIN Pad	12   numeric/letter keys,11 function keys
Mobile Module	Support 1/2 standard SIM card slot, automatic   identification 1.8V and 3.0V card
	Support All-net-through (GSM, WCMDA, CDMA2000,   TD-SCDMA, TDD-LTE, FDD-LTE)
Power	Input voltage:   AC 100V~240V 50/60Hz,Output voltage:9V 1A
Battery	7.4V, 2000 mAh   rechargeable lithium battery
Adapter	Input：100-240V～50/60Hz 250mA
	Output：9.0V, 1A
Communications	GPRS/   CDMA/WCDMA optional,    Bluetooth/ WiFi ( Optional)
Certification	Smart POS   terminals safety certification
	PBOC 3.0 L1&L2   certification
	PBOC3.0 contactless   IC card payment terminal application testing
	EMV 4.3   Contact Terminal L1&L2
	CCC   certification
	Telecommunication   equipment network access license
	China union   pay terminal products network access license

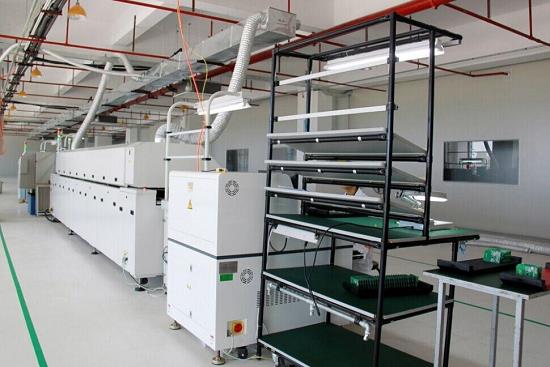

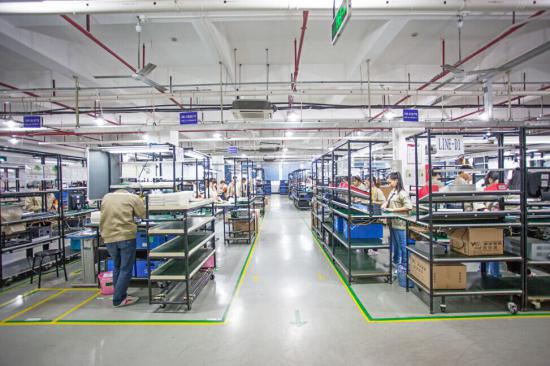

4. POS terminal workshop gallery

5. Company overview
SZZT Electronics CO., Ltd (Stock code: 002197) started in 1993 with registered capital of 66 Million USD, grown as the global biggest financial payment and security product base,and provide the most thoughtful financial payment infrastructure services for customers.

The company has established 2 industrial park in Shenzhen and Changsha. Four large-scale IDC in Shenzhen, Dongguan, Guangzhou, Changsha,5 R&D centers, 22 branch company and 331 after-sales service dots spread over the country.

SZZT Electronics CO., Ltd owns the patent of encrypt pin pad, self-service terminal and POS terminal near 200 terms ,and develops the password security chip with independent intellectual property, established high leveled automatic manufacturing line of financial terminal and advanced IOT cloud computing platform ,offered a variety of differentiated financial payment solutions included terminal, business software, platform operations,ect.Our product spread over 160 countries and area among the world.

6. FAQ
(1).What is POS?
POS (point of sale) is a kind of multi-function terminal, install it on merchants accepting credit cards and branch with computer s linked into a network, you can achieve automatic electronic funds transfer, it has the support of consumer, pre-authorization, balance inquiries and transfers and other functions, safe to use, fast and reliable.

(2).What is the application of POS?
The POS terminal can be used on any place related to the financial payment issues, like financial, retail, hotel, electricity, gas and other industries.

(3).What is the major component of POS?
Host, Screen, Keyboard, Card Reader, Printer,  Communication Module, Power module, etc.
With the development of the market, more and more new kinds of POS appears in the market

(4).What is the communication type of POS?
Wireline: LAN/Modem
Wireless: GPRS/3G/4G/Wifi/Bluetooth

(5).Do you supply software for the POS terminal?
We supply POS terminal hardware, and provide you the complete SDK for you to develop your own POS software.
